|ColorSolder Temperature:||Red||Solder Temperature:||420-470|
0.5mm Triple Insulated Winding Wire,
Copper Triple Insulated Winding Wire,
Enameled Triple Insulated Wire

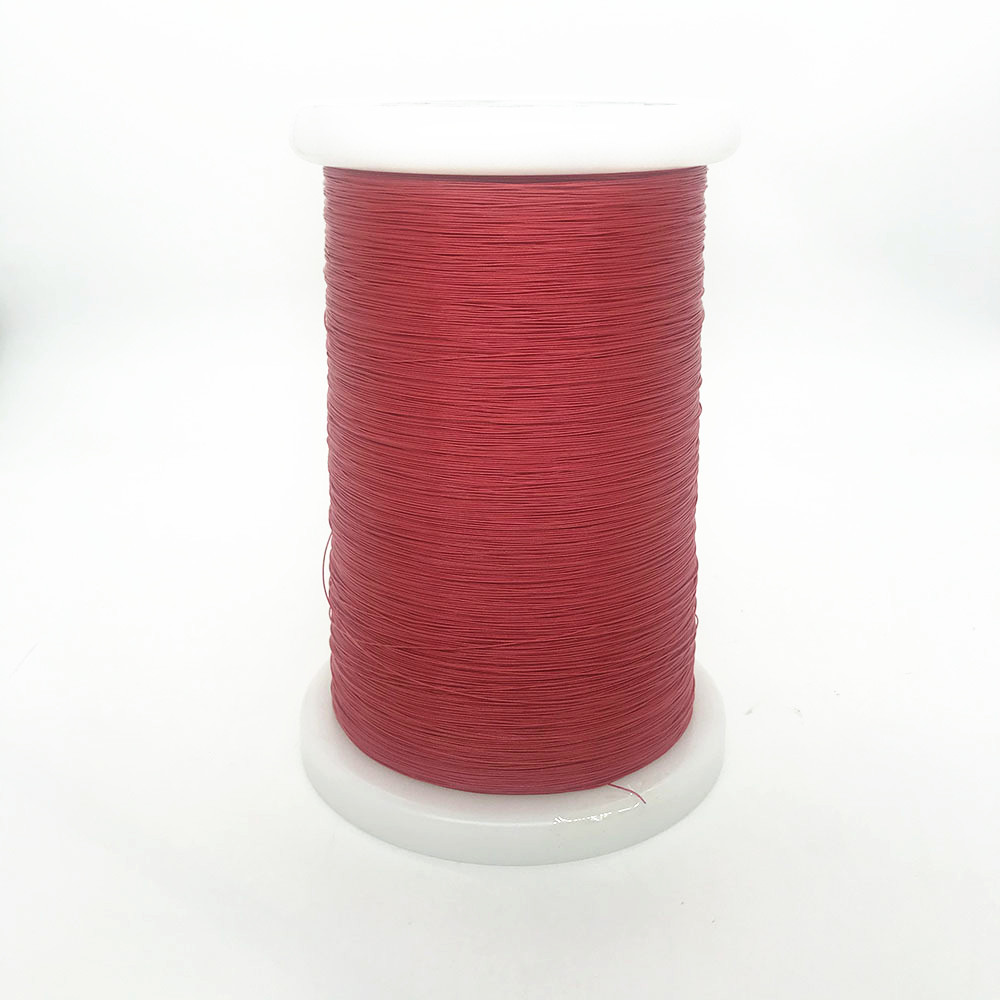

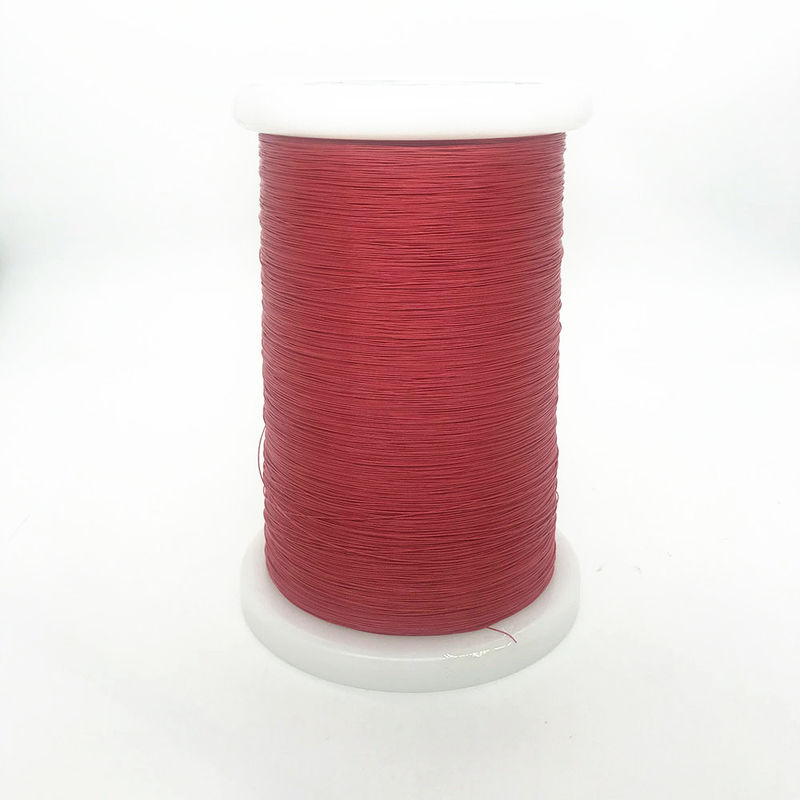

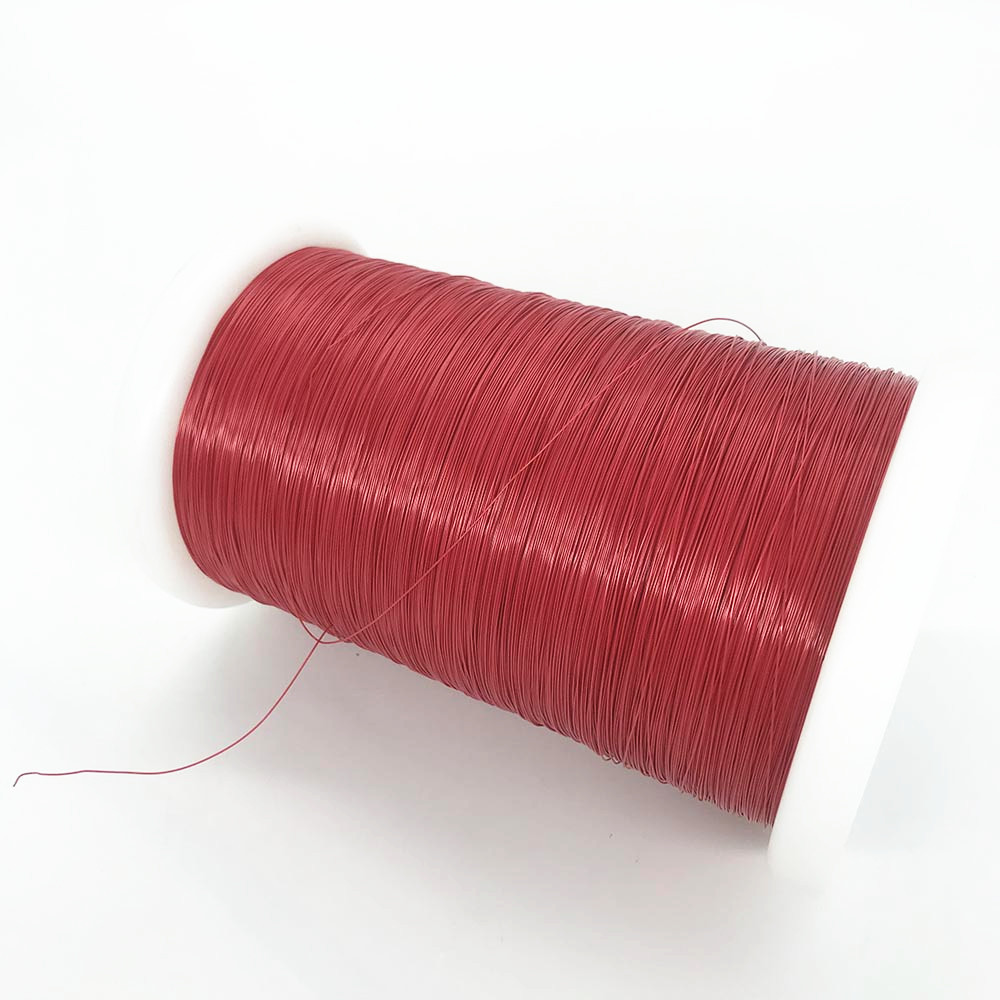

TIW - B 0.5mm Enameled Copper Winding Wire Triple Insulated Wire
We have 19 high-speed production lines with a monthly production capacity of 150 million meters, the largest production scale in China; we have our own insulation material formula and intellectual property rights; our triple insulated wire have passed UL, German VDE and China CQ C authority Certified, and obtained UL insulation system; we have a core competitive engineering and technical team, and continue to provide customers with quality products and services.
TIW,3- layers insulated copper wire a unique product for small transformers. Three layer extruded coatings of high performance polymer resins gives excellent dielectric properties to this type of winding wires. Unlike enamelled wires, three layers of insulation are extruded over the copper conductor by an automated manufacturing process ensure perfect central position of conductor. The conventional enamelled wire winding coils requires insulation between the primary and secondary coils by means of barrier tape or interlayer tape, to isolate primary and secondary windings. Since three layers coating is having very high dielectric strength, it has very less creepage factor. This positive feature of TIW serves to downsize switching transformers, and promises high production efficiency and cost reduction. Depending on the design, the transformer size can be reduced up to 40% and weight up to 60% as compared to transformers made up of enamelled wires.
|Conductor m/m||End product m/m||Maximum Conductor Resistance at 20 ℃||Minimum Elongation %|
|Diameter m/m||Tolerance m/m||Target outside diameter||Tolerance m/m|
