| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ROHS/ICE/ISO9001/ISO14001 |
| Model Number: | class F |
| Minimum Order Quantity: | 30,000 meters |
| Packaging Details: | Carton with pallet |
| Delivery Time: | 2-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Ton/Tons per Month |
| Type: | Insulated | Conductor Material: | Copper |
|---|---|---|---|
| Conductor Type: | Solid | Insulation Material: | PET |
| Rated Temperature: | 155 | Solderability: | Directly |
| Solder Temperature: | 420-470 | ||
| High Light: | insulated copper wire,tiw wire |
||
UL CERTIFICATED 0.15MM CLASS F SELF SOLDERABLE TRIPLE INSULATED WIRE TIW ENAMELLED COPPER WIRE FOR TRANSFORMER
We may be the only one supplier who can provide class F/155 triple insulated wire which size starts from 0.15mm. At this level, our quality is better than Furukawa that was tested by some transofmer manuafactures whom used triple insulated wire from Furukawa.
FEATURES AND BENEFITS:

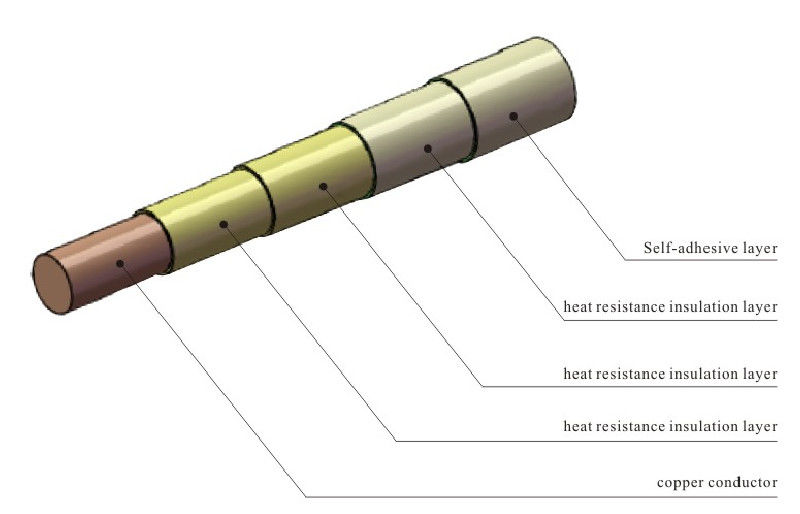

Certified as Reinforced Insulation; tree layers can resist up to 3,000 ACV for one minute.
Soldered without any surface layer bared (stripped).
Smoothly coiled by automatic coiling machines.
Offering a wide size choice of 0.1 to 1.0mm (conductor diameter)
PECIFICATION:
| Conductor m/m | End product m/m | Maximum Conductor Resistance at 20 ℃ | Minimum Elongation % | ||
| Diameter m/m | Tolerance m/m | Target outside diameter | Tolerance m/m | ||
| 0.1 | ±0.008 | 0.3 | ±0.02 | 2264.7 | 15 |
| 0.12 | ±0.008 | 0.32 | ±0.02 | 1786 | 15 |
| 0.14 | ±0.008 | 0.34 | ±0.02 | 1286 | 15 |
| 0.15 | ±0.008 | 0.35 | ±0.02 | 1111 | 15 |
| 0.16 | ±0.008 | 0.36 | ±0.02 | 908.8 | 15 |
| 0.17 | ±0.008 | 0.37 | ±0.02 | 853.5 | 15 |
| 0.18 | ±0.008 | 0.38 | ±0.02 | 757 | 15 |
| 0.19 | ±0.008 | 0.39 | ±0.02 | 676.2 | 15 |
| 0.2 | ±0.008 | 0.4 | ±0.02 | 607.6 | 15 |
| 0.21 | ±0.008 | 0.41 | ±0.02 | 549 | 15 |
| 0.22 | ±0.008 | 0.42 | ±0.02 | 498.4 | 15 |
| 0.23 | ±0.008 | 0.43 | ±0.02 | 454.5 | 15 |
| 0.24 | ±0.008 | 0.44 | ±0.02 | 416.2 | 15 |
| 0.25 | ±0.008 | 0.45 | ±0.02 | 382.5 | 15 |
| 0.26 | ±0.010 | 0.46 | ±0.02 | 358.4 | 15 |
| 0.27 | ±0.010 | 0.47 | ±0.02 | 331.4 | 15 |
| 0.28 | ±0.010 | 0.48 | ±0.02 | 307.3 | 15 |
| 0.29 | ±0.010 | 0.49 | ±0.02 | 285.7 | 20 |
| 0.3 | ±0.010 | 0.5 | ±0.02 | 262.9 | 20 |
| 0.32 | ±0.010 | 0.52 | ±0.02 | 230 | 20 |
| 0.35 | ±0.010 | 0.55 | ±0.02 | 191.2 | 20 |
| 0.37 | ±0.010 | 0.57 | ±0.02 | 170.6 | 20 |
| 0.4 | ±0.010 | 0.6 | ±0.02 | 145.3 | 20 |
| 0.45 | ±0.010 | 0.65 | ±0.02 | 114.2 | 20 |
| 0.5 | ±0.010 | 0.7 | ±0.02 | 91.4 | 20 |
| 0.55 | ±0.020 | 0.75 | ±0.02 | 78.2 | 20 |
| 0.6 | ±0.020 | 0.8 | ±0.02 | 65.3 | 20 |
| 0.65 | ±0.020 | 0.85 | ±0.02 | 88.3 | 20 |
| 0.7 | ±0.020 | 0.9 | ±0.02 | 47.2 | 20 |
| 0.75 | ±0.020 | 0.95 | ±0.02 | 41.2 | 20 |
| 0.8 | ±0.020 | 1 | ±0.02 | 36.1 | 25 |
| 0.85 | ±0.020 | 1.05 | ±0.02 | 31.9 | 25 |
| 0.9 | ±0.020 | 1.1 | ±0.02 | 28.4 | 25 |
| 0.95 | ±0.020 | 1.15 | ±0.02 | 25.4 | 25 |
| 1 | ±0.030 | 1.2 | ±0.02 | 23.3 | 25 |
