Solid Triple Insulated Copper Wire PET Insulation With UL / ISO Certificated

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: TIW-B
Minimum Order Quantity: 30,000 meters
Price: Negotiation
Packaging Details: Carton with pallet
Delivery Time: 2-15 days
Payment Terms: L/C, T/T
Supply Ability: 200 Ton/Tons per Month
Detail Information
Type: Insulated Conductor Material: Copper
Conductor Type: Solid Insulation Material: PET
Size: 0.10-1.00mm Rated Temperature: 130
Solderability: Directly Rated Voltage: 1000 Vrms
High Light:

insulated copper wire

,

tiw wire


Product Description

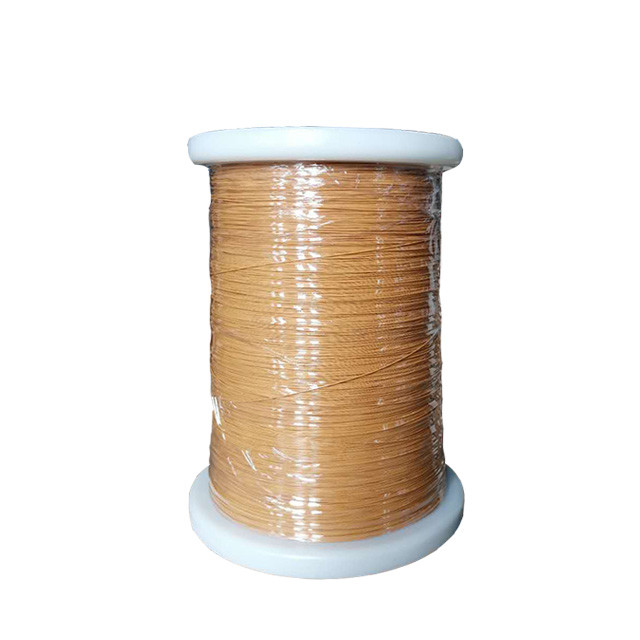

UL/ISO CERTIFICATED TRIPLE INSULATED WIRE TIW-B ENAMELLED COPPER WIRE FOR TRANSFORMER



We may be the only one supplier who can provide class F/155 triple insulated wire which size starts from 0.15mm. At this level, our quality is better than Furukawa that was tested by some transofmer manuafactures whom used triple insulated wire from Furukawa.Silk covered triple insulated wire are extruded over the copper conductor. IEC60950 requires some Reinforced Insulation between the primary and secondary coils. Thus enamelled wire transformers can never omit the insulation tape or barrier tape: enamel coatings give poor electric insulation. In contrast, TIW can form primary and secondary coils without a need of barrier tape or interlayer tape in-between. By putting a stick silk from around the package in three layers of insulation surface, achieve three layers of insulation adhesive. Part can replace original adhesive three-tier insulation lines, costs and delivery the original factory.



FEATURES AND BENEFITS:

  • Certified as Reinforced Insulation; tree layers can resist up to 3,000 ACV for one minute.

  • Soldered without any surface layer bared (stripped).

  • Smoothly coiled by automatic coiling machines.

  • Offering a wide size choice of 0.1 to 1.0mm (conductor diameter)



Conductor m/m End product m/m Maximum Conductor Resistance at 20 ℃ Minimum Elongation %
Diameter m/m Tolerance m/m Target outside diameter Tolerance m/m
0.10 ±0.008 0.30 ±0.02 2264.7 15
0.12 ±0.008 0.32 ±0.02 1786.0 15
0.14 ±0.008 0.34 ±0.02 1286.0 15
0.15 ±0.008 0.35 ±0.02 1111.0 15
0.16 ±0.008 0.36 ±0.02 908.8 15
0.17 ±0.008 0.37 ±0.02 853.5 15
0.18 ±0.008 0.38 ±0.02 757.0 15
0.19 ±0.008 0.39 ±0.02 676.2 15
0.20 ±0.008 0.40 ±0.02 607.6 15
0.21 ±0.008 0.41 ±0.02 549.0 15
0.22 ±0.008 0.42 ±0.02 498.4 15
0.23 ±0.008 0.43 ±0.02 454.5 15
0.24 ±0.008 0.44 ±0.02 416.2 15
0.25 ±0.008 0.45 ±0.02 382.5 15
0.26 ±0.010 0.46 ±0.02 358.4 15
0.27 ±0.010 0.47 ±0.02 331.4 15
0.28 ±0.010 0.48 ±0.02 307.3 15
0.29 ±0.010 0.49 ±0.02 285.7 20
0.30 ±0.010 0.50 ±0.02 262.9 20
0.32 ±0.010 0.52 ±0.02 230.0 20
0.35 ±0.010 0.55 ±0.02 191.2 20
0.37 ±0.010 0.57 ±0.02 170.6 20
0.40 ±0.010 0.60 ±0.02 145.3 20
0.45 ±0.010 0.65 ±0.02 114.2 20
0.50 ±0.010 0.70 ±0.02 91.4 20
0.55 ±0.020 0.75 ±0.02 78.2 20
0.60 ±0.020 0.80 ±0.02 65.3 20
0.65 ±0.020 0.85 ±0.02 88.3 20
0.70 ±0.020 0.90 ±0.02 47.2 20
0.75 ±0.020 0.95 ±0.02 41.2 20
0.80 ±0.020 1.00 ±0.02 36.1 25
0.85 ±0.020 1.05 ±0.02 31.9 25
0.90 ±0.020 1.10 ±0.02 28.4 25
0.95 ±0.020 1.15 ±0.02 25.4 25
1.00 ±0.030 1.20 ±0.02 23.3 25
