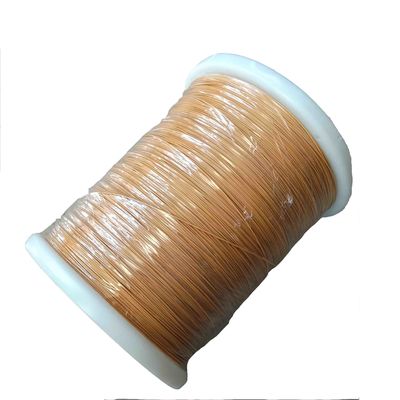

HIGH QUALITY UL CERTIFICATED TIW-B TRIPLE INSULATED WIRE TEX FINE COPPER WIRE FOR TRANSFORMERS
Triple Insulated wire or TIW is wildely used in transformer, our quanlity is similar with Furukawa, even is better at CLASS F. Self solderable makes soldering process much easier. UL system certificated give you perfect quality.
FEATURES AND BENEFITS
1. Greatly reduce the size and weight of transformers.
2. Greatly improve the efficiency of transformer by reducing the distance between coil.
3. Allow to wind directly on the top of enameled wires. Eliminate the interleaved insulation tapes, barriers and insulating sleeves.
4. Shock resistance, Corrosion Resistant
5. Excellent durability, Durable Resistant
6. Superior strength, Reliability
7. Rust resistant, Affordability
8. Low maintenance
SPECIFICTAION
|
Conductor m/m |
End product m/m |
Maximum Conductor Resistance at 20 ℃ |
Minimum Elongation % |
||
|
Diameter m/m |
Tolerance m/m |
Target outside diameter |
Tolerance m/m |
||
|
0.15 |
±0.008 |
0.35 |
±0.02 |
1111 |
15 |
|
0.16 |
±0.008 |
0.36 |
±0.02 |
908.8 |
15 |
|
0.17 |
±0.008 |
0.37 |
±0.02 |
853.5 |
15 |
|
0.18 |
±0.008 |
0.38 |
±0.02 |
757 |
15 |
|
0.19 |
±0.008 |
0.39 |
±0.02 |
676.2 |
15 |
|
0.2 |
±0.008 |
0.4 |
±0.02 |
607.6 |
15 |
|
0.21 |
±0.008 |
0.41 |
±0.02 |
549 |
15 |
|
0.22 |
±0.008 |
0.42 |
±0.02 |
498.4 |
15 |
|
0.23 |
±0.008 |
0.43 |
±0.02 |
454.5 |
15 |
|
0.24 |
±0.008 |
0.44 |
±0.02 |
416.2 |
15 |
|
0.25 |
±0.008 |
0.45 |
±0.02 |
382.5 |
15 |
|
0.26 |
±0.010 |
0.46 |
±0.02 |
358.4 |
15 |
|
0.27 |
±0.010 |
0.47 |
±0.02 |
331.4 |
15 |
|
0.28 |
±0.010 |
0.48 |
±0.02 |
307.3 |
15 |
|
0.29 |
±0.010 |
0.49 |
±0.02 |
285.7 |
20 |
|
0.3 |
±0.010 |
0.5 |
±0.02 |
262.9 |
20 |
|
0.32 |
±0.010 |
0.52 |
±0.02 |
230 |
20 |
|
0.35 |
±0.010 |
0.55 |
±0.02 |
191.2 |
20 |
|
0.37 |
±0.010 |
0.57 |
±0.02 |
170.6 |
20 |
|
0.4 |
±0.010 |
0.6 |
±0.02 |
145.3 |
20 |
|
0.45 |
±0.010 |
0.65 |
±0.02 |
114.2 |
20 |
|
0.5 |
±0.010 |
0.7 |
±0.02 |
91.4 |
20 |
|
0.55 |
±0.020 |
0.75 |
±0.02 |
78.2 |
20 |
|
0.6 |
±0.020 |
0.8 |
±0.02 |
65.3 |
20 |
|
0.65 |
±0.020 |
0.85 |
±0.02 |
88.3 |
20 |
|
0.7 |
±0.020 |
0.9 |
±0.02 |
47.2 |
20 |
|
0.75 |
±0.020 |
0.95 |
±0.02 |
41.2 |
20 |
|
0.8 |
±0.020 |
1 |
±0.02 |
36.1 |
25 |
|
0.85 |
±0.020 |
1.05 |
±0.02 |
31.9 |
25 |
|
0.9 |
±0.020 |
1.1 |
±0.02 |
28.4 |
25 |
|
0.95 |
±0.020 |
1.15 |
±0.02 |
25.4 |
25 |
|
1 |
±0.030 |
1.2 |
±0.02 |
23.3 |
25 |
