| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 130/155 |
| Minimum Order Quantity: | 30,000 meters |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 workding days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000000 Piece/Pieces per Month |
| Diameter: | 0.60mm | Conductor Material: | Copper |
|---|---|---|---|
| Temperature: | 130/155/180/200/220 | Insulation: | UEW |
| Breakdown Voltage: | Over 3KV | Outer Diameter: | 0.11-1.02mm |
| Highlight: | insulated copper wire,tiw wire |
||

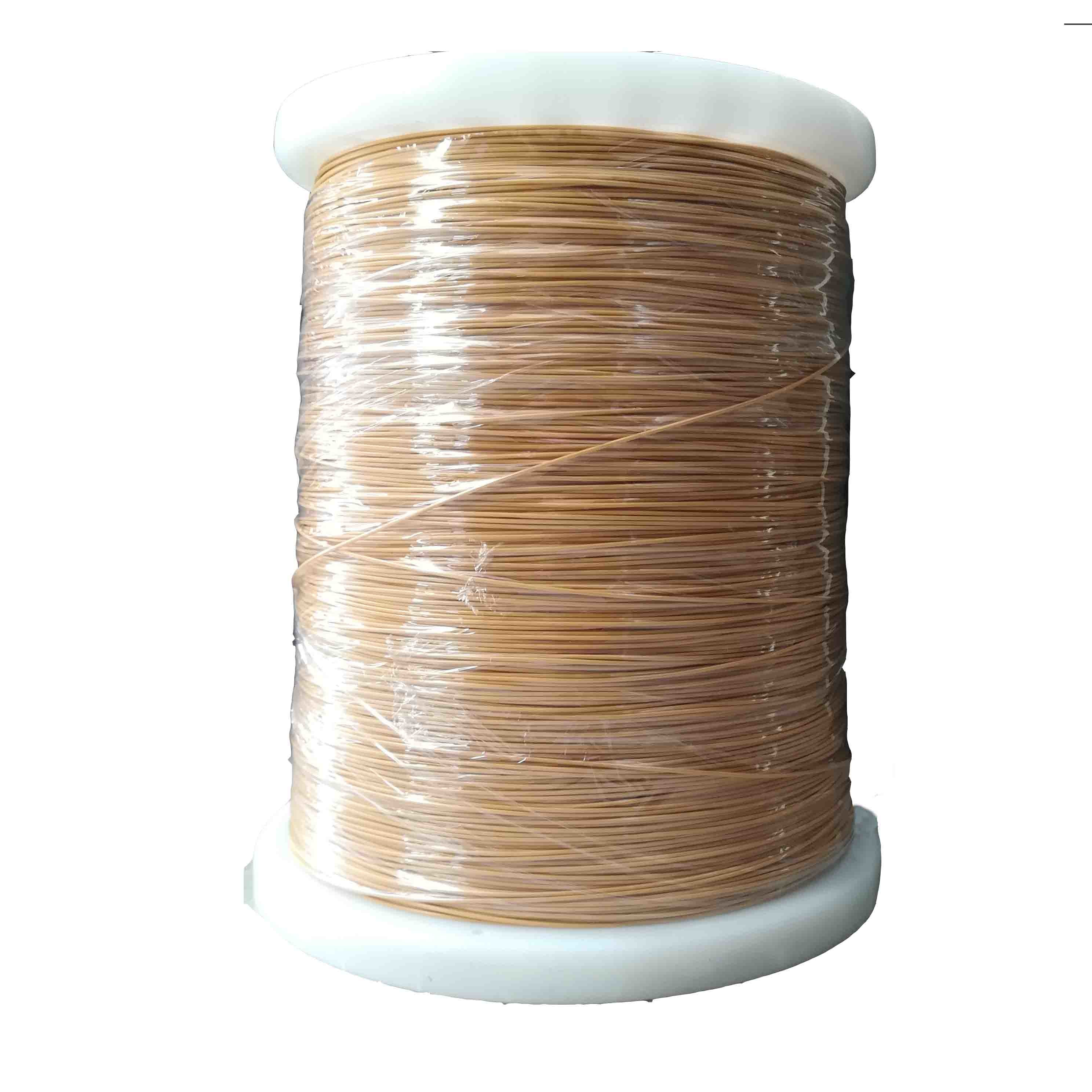

UL CERTIFICATIONS 0.6MM SOLDERABLITY TRIPLE INSULATED WIRE TIW INSUALTED FINE COPPER WIRE FOR WINDING
We may be the only one supplier who can provide class F/155 triple insulated wire which size starts from 0.15mm. At this level, our quality is better than Furukawa that was tested by some transofmer manuafactures whom used triple insulated wire from Furukawa.
FEATURES
The feature of triple inslated wire is in its insulation layers. IEC standards require specified insulation between primary and secondary coils of transformers. And the standards do not accept general enameled wire as insulation therefore insulation tape or barrier tape are required in transformers using enameled wire. Triple insulated wire however, has triple insulation layers which comply IEC requirement and therefore can be used without barrier tape or interlayer tape between primary and secondary coils.
SPECIFICATION
|
Conductor m/m |
End product m/m |
Maximum Conductor Resistance at 20 ℃ |
Minimum Elongation % |
||
|
Diameter m/m |
Tolerance m/m |
Target outside diameter |
Tolerance m/m |
||
|
0.15 |
±0.008 |
0.35 |
±0.02 |
1111 |
15 |
|
0.16 |
±0.008 |
0.36 |
±0.02 |
908.8 |
15 |
|
0.17 |
±0.008 |
0.37 |
±0.02 |
853.5 |
15 |
|
0.18 |
±0.008 |
0.38 |
±0.02 |
757 |
15 |
|
0.19 |
±0.008 |
0.39 |
±0.02 |
676.2 |
15 |
|
0.2 |
±0.008 |
0.4 |
±0.02 |
607.6 |
15 |
|
0.21 |
±0.008 |
0.41 |
±0.02 |
549 |
15 |
|
0.22 |
±0.008 |
0.42 |
±0.02 |
498.4 |
15 |
|
0.23 |
±0.008 |
0.43 |
±0.02 |
454.5 |
15 |
|
0.24 |
±0.008 |
0.44 |
±0.02 |
416.2 |
15 |
|
0.25 |
±0.008 |
0.45 |
±0.02 |
382.5 |
15 |
|
0.26 |
±0.010 |
0.46 |
±0.02 |
358.4 |
15 |
|
0.27 |
±0.010 |
0.47 |
±0.02 |
331.4 |
15 |
|
0.28 |
±0.010 |
0.48 |
±0.02 |
307.3 |
15 |
|
0.29 |
±0.010 |
0.49 |
±0.02 |
285.7 |
20 |
|
0.3 |
±0.010 |
0.5 |
±0.02 |
262.9 |
20 |
|
0.32 |
±0.010 |
0.52 |
±0.02 |
230 |
20 |
|
0.35 |
±0.010 |
0.55 |
±0.02 |
191.2 |
20 |
|
0.37 |
±0.010 |
0.57 |
±0.02 |
170.6 |
20 |
|
0.4 |
±0.010 |
0.6 |
±0.02 |
145.3 |
20 |
|
0.45 |
±0.010 |
0.65 |
±0.02 |
114.2 |
20 |
|
0.5 |
±0.010 |
0.7 |
±0.02 |
91.4 |
20 |
|
0.55 |
±0.020 |
0.75 |
±0.02 |
78.2 |
20 |
|
0.6 |
±0.020 |
0.8 |
±0.02 |
65.3 |
20 |
|
0.65 |
±0.020 |
0.85 |
±0.02 |
88.3 |
20 |
|
0.7 |
±0.020 |
0.9 |
±0.02 |
47.2 |
20 |
|
0.75 |
±0.020 |
0.95 |
±0.02 |
41.2 |
20 |
|
0.8 |
±0.020 |
1 |
±0.02 |
36.1 |
25 |
|
0.85 |
±0.020 |
1.05 |
±0.02 |
31.9 |
25 |
|
0.9 |
±0.020 |
1.1 |
±0.02 |
28.4 |
25 |
|
0.95 |
±0.020 |
1.15 |
±0.02 |
25.4 |
25 |
|
1 |
±0.030 |
1.2 |
±0.02 |
23.3 |
25 |
