| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | UL/ROHS/ICE/ISO9001/ISO14001 |
| Model Number: | EE53 |
| Minimum Order Quantity: | 1000pcs |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 workding days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000000 Piece/Pieces per Month |
| Size: | 77*55*16.5cm | Bobbin Shape: | Horizontal |
|---|---|---|---|
| Inductance: | 1-2=660uH±7% | Power: | 250W |
| Core Material: | Core Material | Resistance: | 1-2=285 Mohm ±20% |
| Working Frequency: | 100KHz | ||
| High Light: | dry type transformer,high frequency power transformer |
||

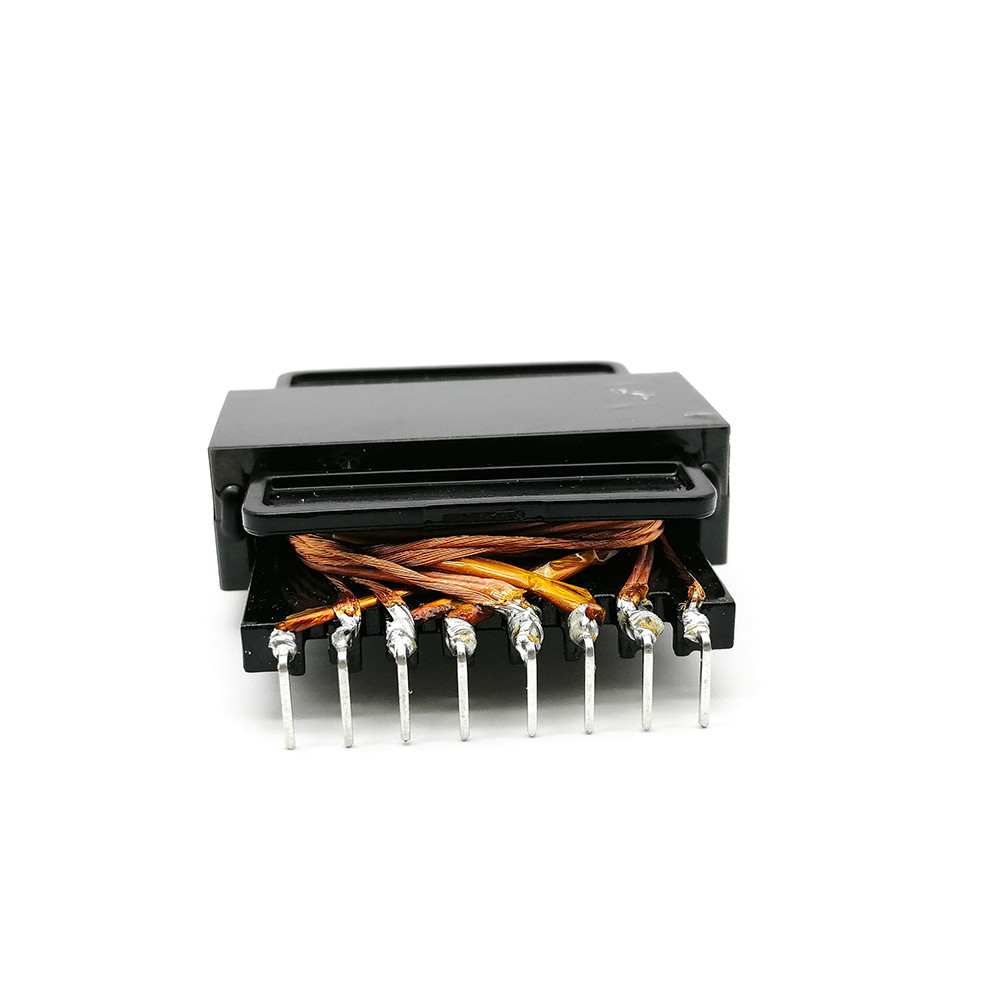

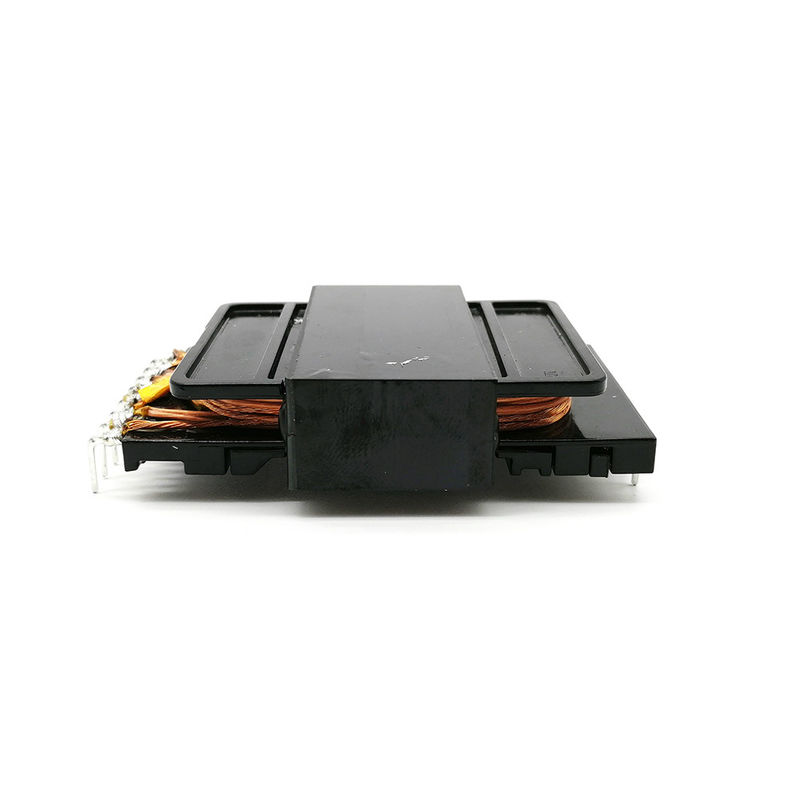

EE53 HIGH FREQUENCY HIGH VOLTAGE STEP DOWN TRANSFORMER AC AC TRANSFORMER
The power transformer is a soft magnetic electromagnetic component whose functions are power transmission, voltage conversion and insulation isolation. It is widely used in power supply technology and power electronics technology. According to the size of the transmission power, the power transformer can be divided into several files: 10kVA or more for high power, 10kVA to 0.5kVA for medium power, 0.5kVA to 25VA for low power, and 25VA for micropower.
|
EE53
|
|||
|
Dimention(mm)
|
Pin Quantity(pcs)
|
Pin Array(mm)
|
Power
|
|
77*55*16.5
|
6+8
|
5.0+6.0
|
250W
|
|
Resistance(MAX)
|
Inductance
|
Leakage(MAX)
|
Test Condition
|
|
1-2=285mΩ±20%
|
1-2=660uH±7%
|
1-2=110uH±8%
|
100KHz 0.3Vrms
|
