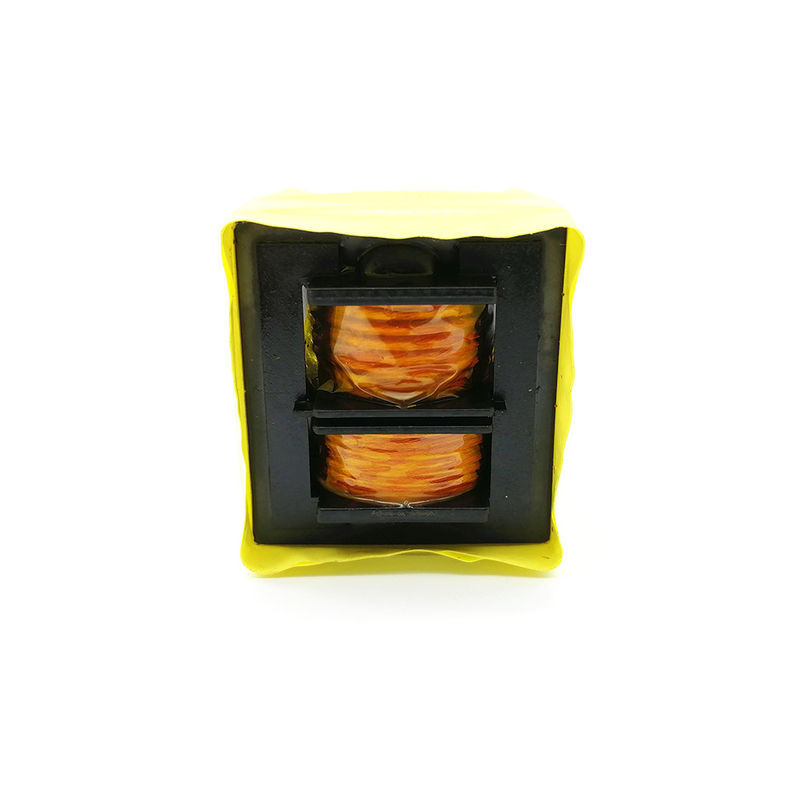

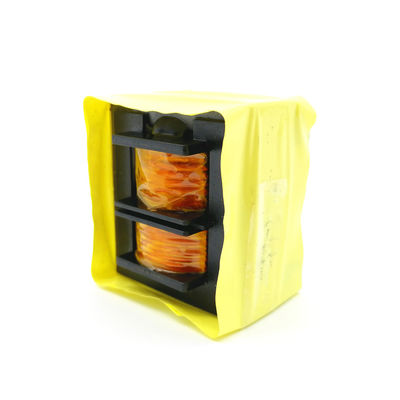

ER40 Flyback Ferrite Core SMD Power Inductor Vertical 10KHz Working Frequency

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: ER40
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 10-15 workding days
Payment Terms: L/C, T/T
Supply Ability: 2000000 Piece/Pieces per Month
Detail Information
Size: 43*47*33 Bobbin Shape: Vertical
Inductance: 3-6=500uH±10% Recommend Power: 200-250W
Resistance: 3-6=85mohm MAX Working Frequency: 10KHz
High Light:

smd power inductor

,

molded inductor


Product Description





ER40 FLYBACK FERRITE CORE TRANSFOREMR HIGH FREQUENCY HIGH VOLTAGE ELECTORNIC TRANSFORMER



Switch mode flyback transformers are used extensively in electronic applications, usually within a switch mode power supply. A switch mode power supply is usually powered from a D.C. source, such as a battery. The switching mode power supply converts the input D.C. source to one or more output D.C. sources.



ER40
Dimention(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
43*47*33
8+8
5
200-250W
Resistance(MAX)
Inductance
Leakage(MAX)
Test Condition
3-6=85mΩMAX
3-6=500uH±10%
3-6=88uH±15%
100KHz 1Vrm

ER40 Flyback Ferrite Core SMD Power Inductor Vertical 10KHz Working Frequency 0
