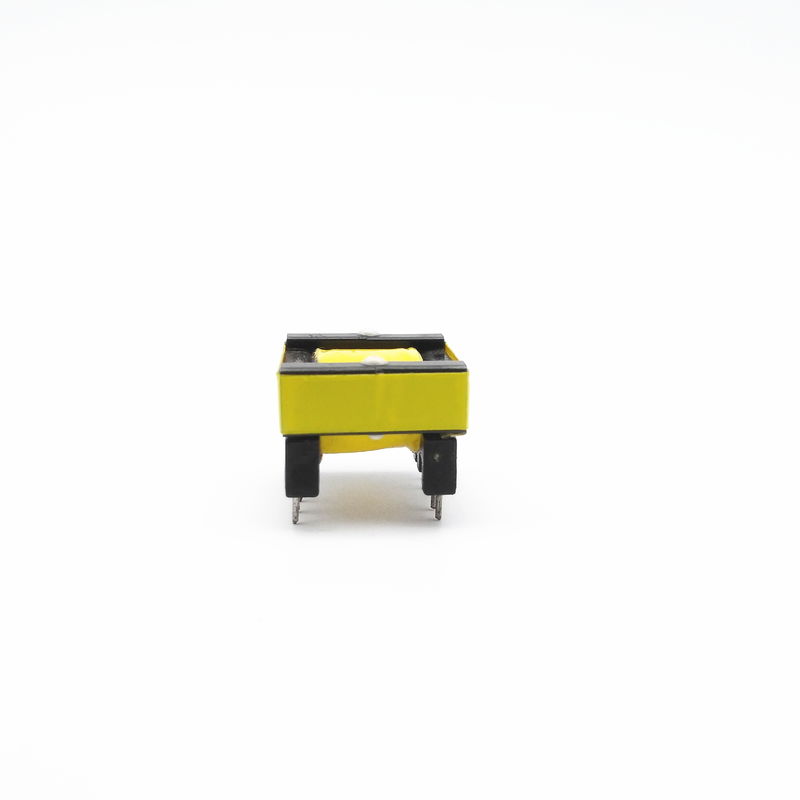

AC MnZn Power Ferrite Core Transformer 3 - 5W Power Small Size High Frequency

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: Epc17
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 10-15 workding days
Payment Terms: L/C, T/T
Supply Ability: 2000000 Piece/Pieces per Month
Detail Information
Size: 20*18*14 Bobbin Shape: Vertical
Inductance: 1-3=345uH±12% Power: 3-5W
Core Material: MnZn Power Ferrite Core Resistance: 1-3=650mohm±15%
Working Frequency: 1KHz
High Light:

dry type transformer

,

high frequency power transformer


Product Description

HIGH FREQUENCY AC AC TRANSFOREMR EPC 17 FLAYBACK TRANSFORMER POWER TRANSFORMER

High voltage transformers are normally used in high voltage labs for testing purpose. This transformer is subjected to transient voltages and surges during their normal operation when the insulation under test breaks down. To withstand these impulse voltages,the insulation of these transformers must be carefully designed. These are usually single phase, core type transformers.

EPC17
Dimension(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
20*18*14
5+5
3.0
3-5W
Resistance(MAX)
Inductance
Leakage(MAX)
Test Condition
1-3=650mΩ±15%
1-3=345uH±12%
/
1KHz 1Vrms





AC MnZn Power Ferrite Core Transformer 3 - 5W Power Small Size High Frequency 0
