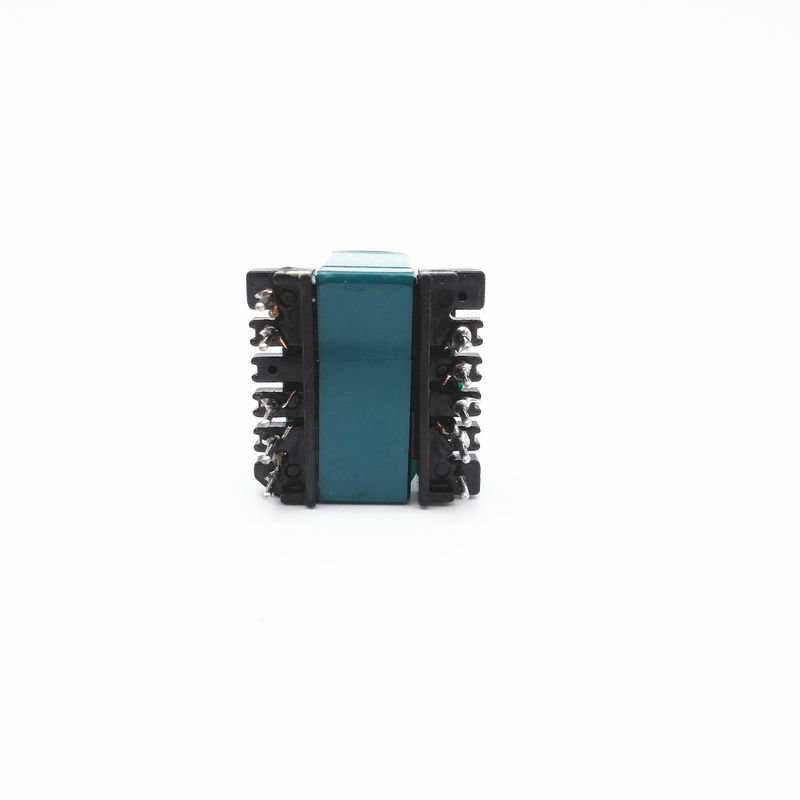

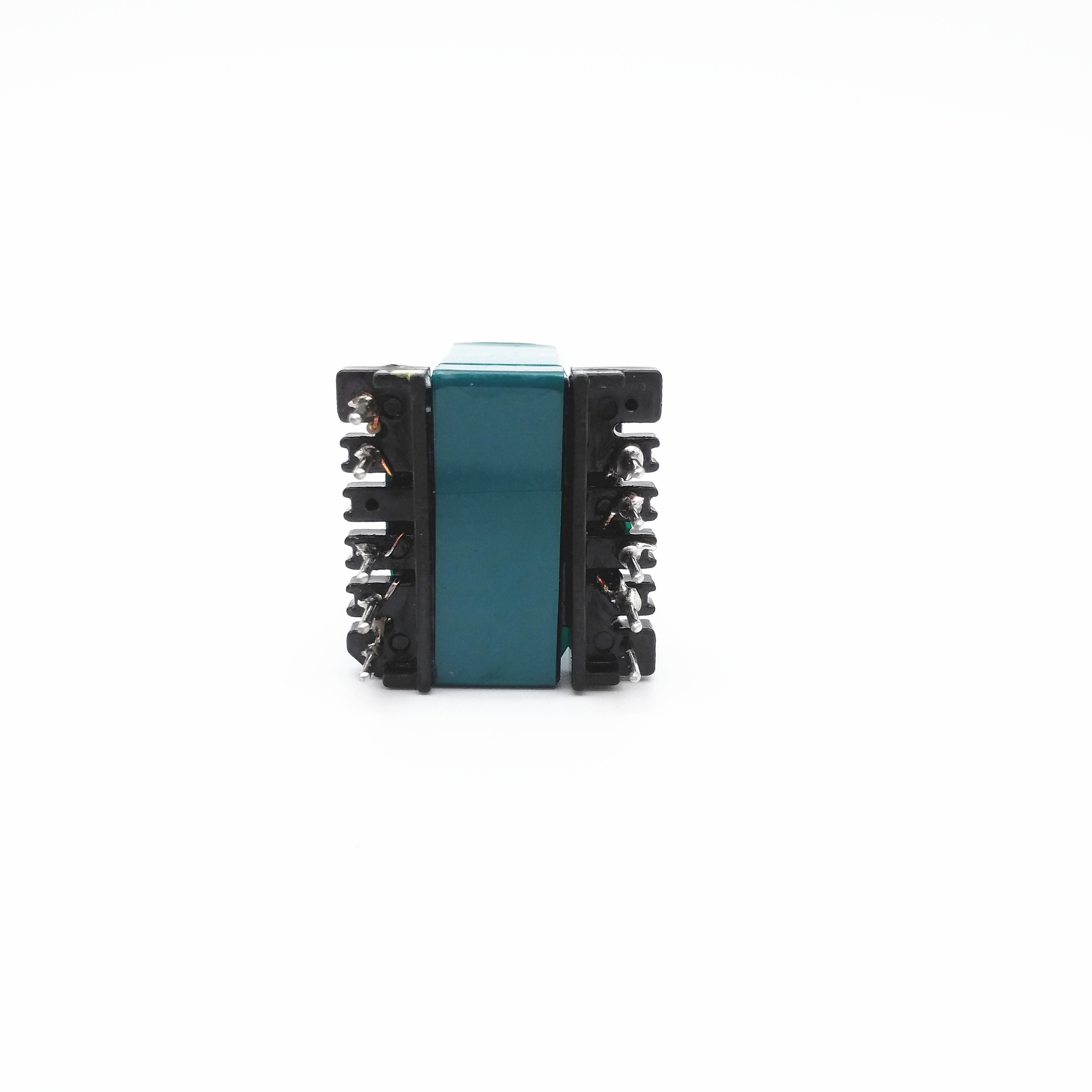

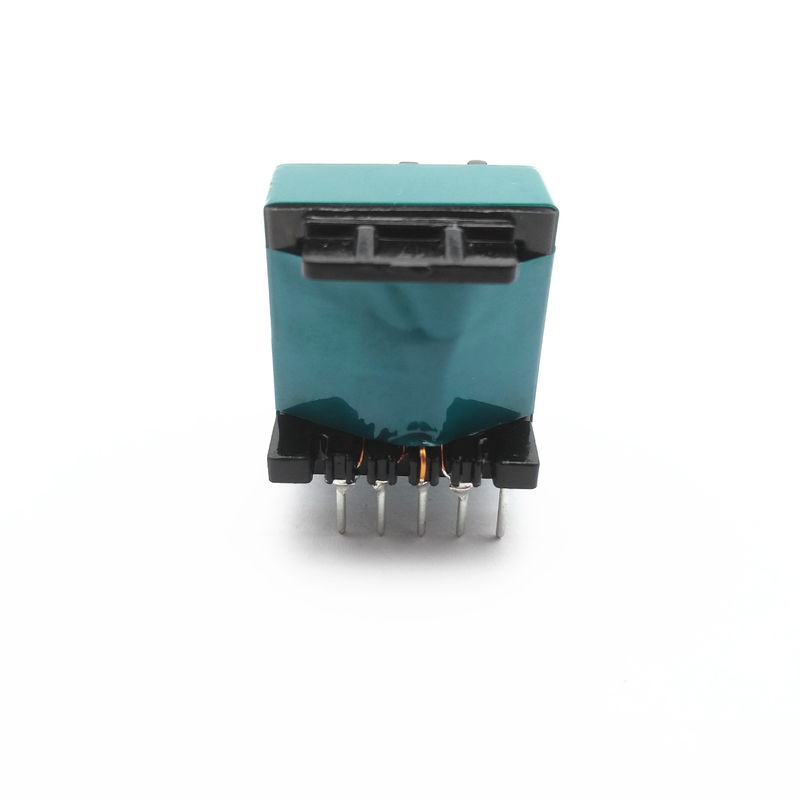

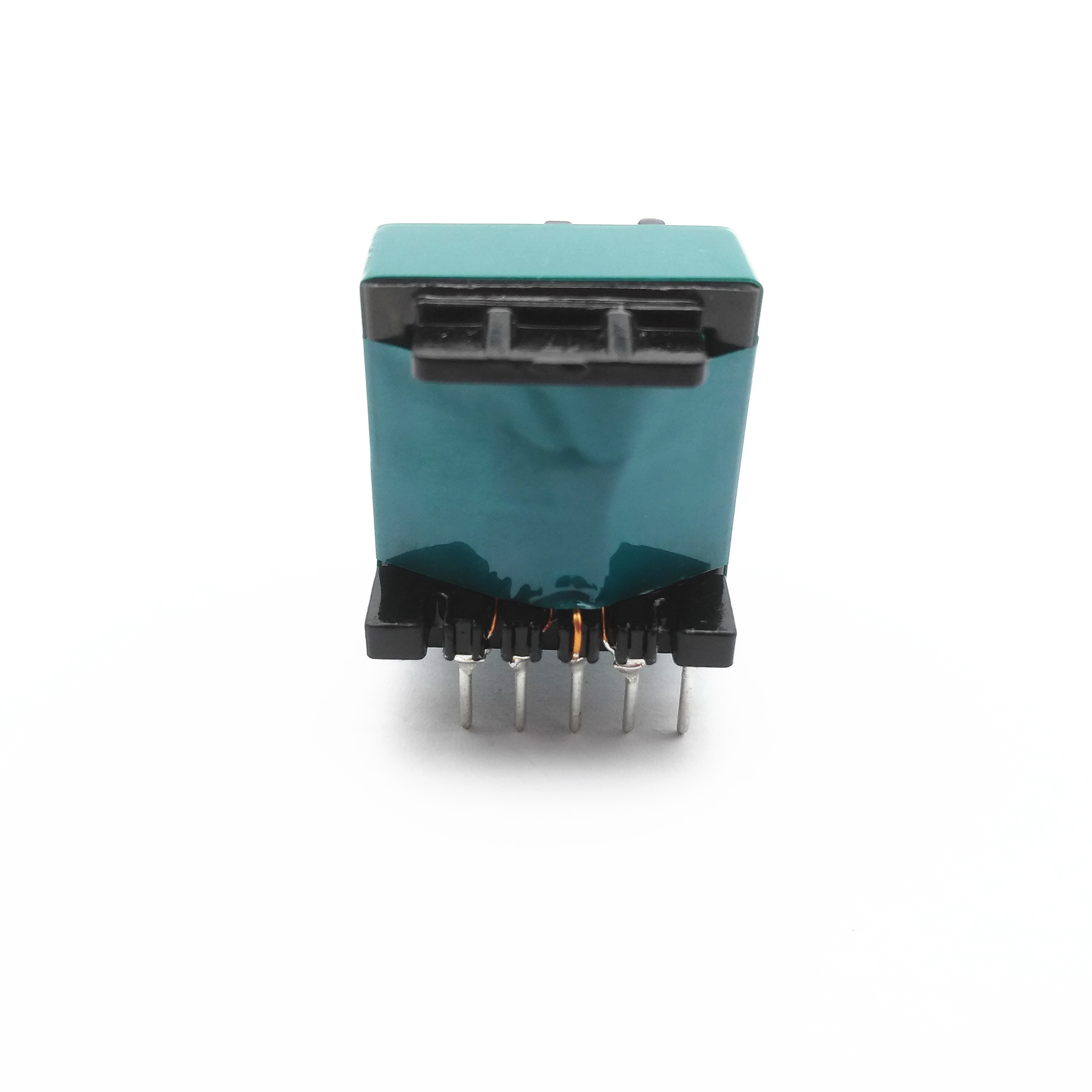

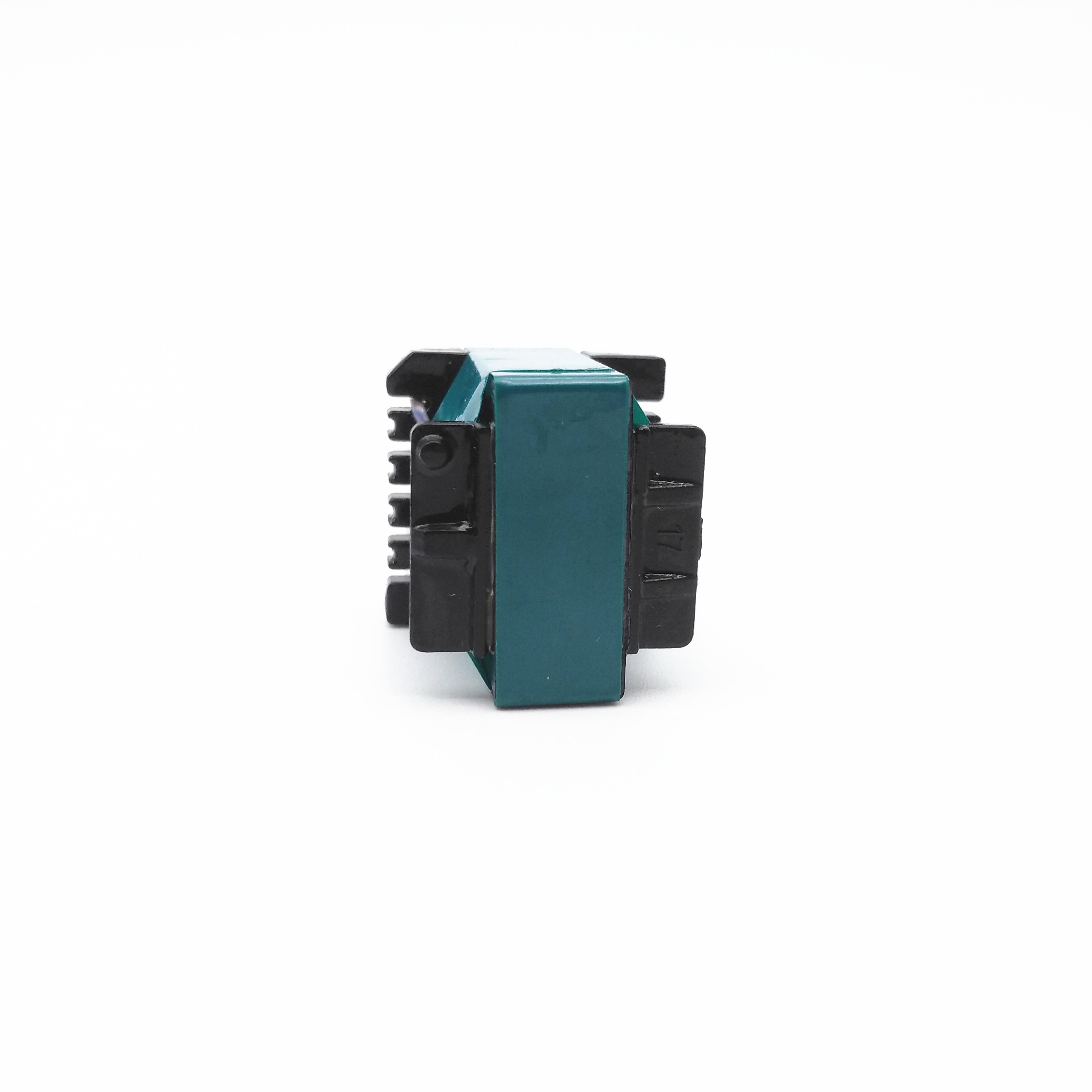

ED22 1KHz High Voltage Transformer Flyback Single Phase Core Type ISO14001

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: ED22
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 10-15 workding days
Payment Terms: L/C, T/T
Supply Ability: 2000000 Piece/Pieces per Month
Detail Information
Size: 23.5*24*26 Bobbin Shape: Horizontal
Inductance: 3-1=1.0mH±10% Power: Power
Core Material: MnZn Power Ferrite Core Resistance: 3-1=3.25mohm±15%
Working Frequency: 1KHz
High Light:

flyback power hv voltage transformer

,

1khz hv voltage transformer

,

single phase hv flyback transformer


Product Description



ED22 1KHz HIGH FRQUENCY HIGH VOLTAGE TRANSFORMER FERRITE CORE FLYBACK TRANSFORMER INVERTER TRANSFORMER



High voltage transformers are normally used in high voltage labs for testing purpose. This transformer is subjected to transient voltages and surges during their normal operation when the insulation under test breaks down. To withstand these impulse voltages,the insulation of these transformers must be carefully designed. These are usually single phase, core type transformers.



ED22
Dimension(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
23.5*24*26
6+6
3.5
30W
Resistance(MAX)
Inductance
Leakage(MAX)
Test Condition
3-1=3.25Ω±15%
3-1=1.0mH±10%
3-1=200uH
1KHz 1Vrms
