| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | UL/ROHS/ICE/ISO9001/ISO14001 |
| Model Number: | ER42 |
| Minimum Order Quantity: | 1000pcs |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 workding days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000000 Piece/Pieces per Month |
| Size: | 49*48*32.5CM | Bobbin Shape: | Vertical |
|---|---|---|---|
| Inductance: | 13-16=200uH±10% | Power: | 250W |
| Core Material: | MnZn Power Ferrite Core | Resistance: | 13-16=55mohm MAX |
| Frequency: | 100KHz | ||
| High Light: | dry type transformer,high frequency power transformer |
||

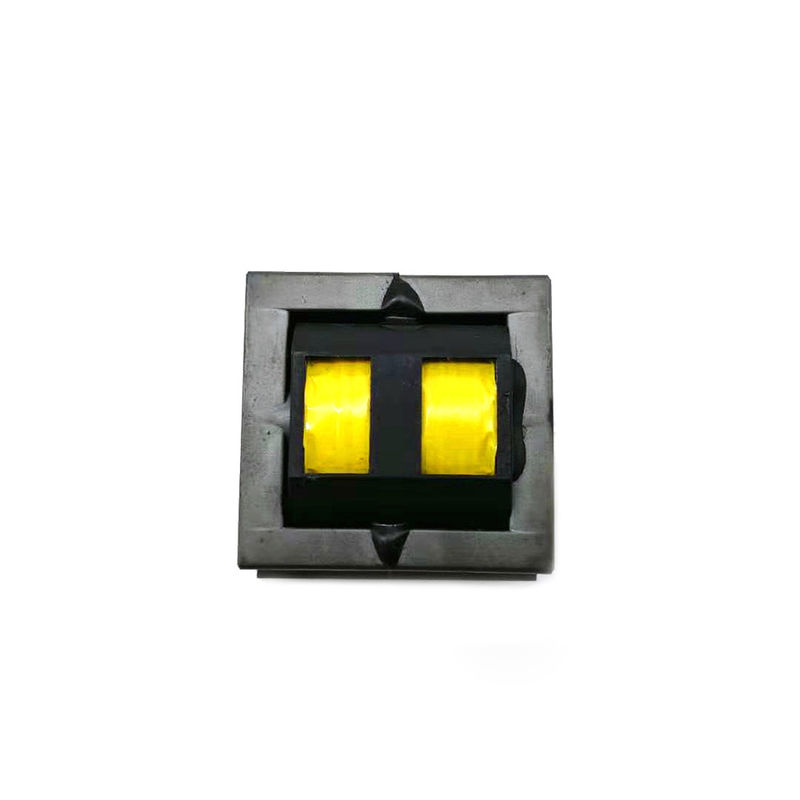

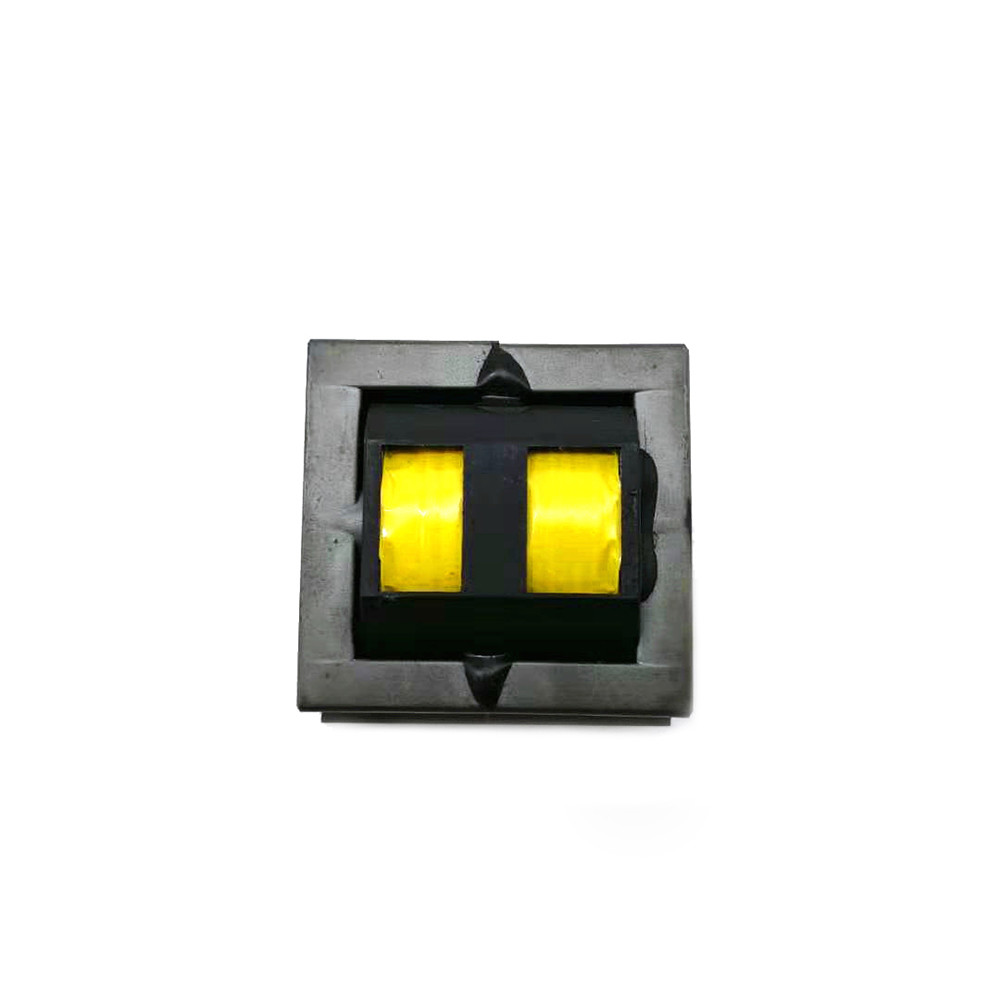

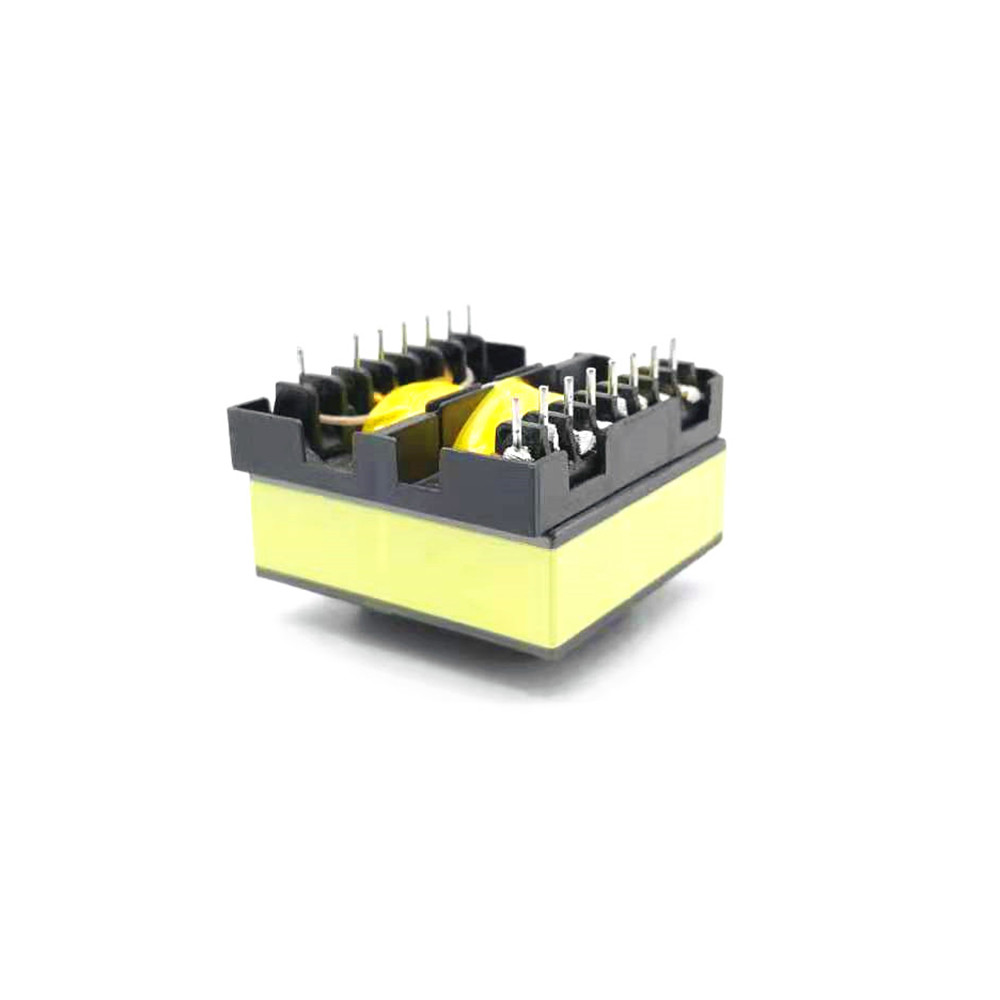

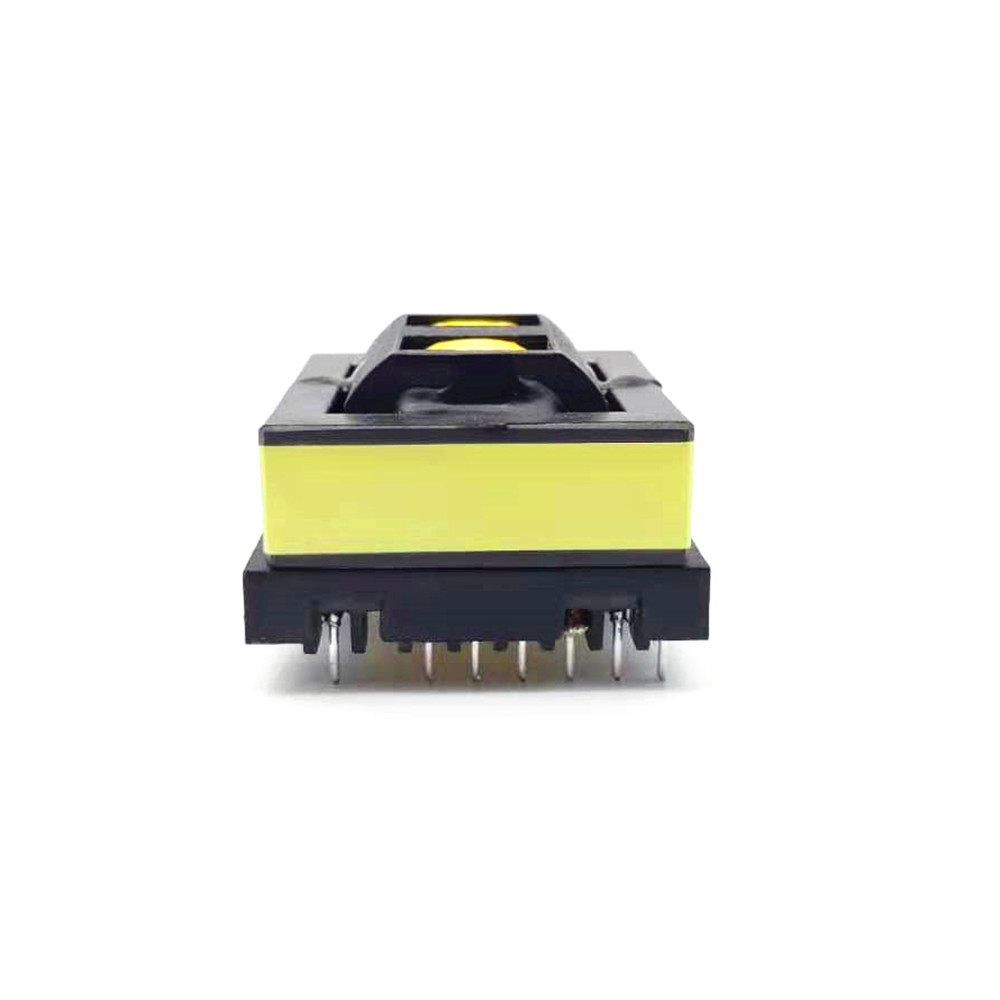

ER42 HIGH FREQUENCY HIGH VOLTAGE POWER SUPPLY TRANSFORMER STEP DOWN TRANSFORMER
High voltage transformers are normally used in high voltage labs for testing purpose. This transformer is subjected to transient voltages and surges during their normal operation when the insulation under test breaks down. To withstand these impulse voltages,the insulation of these transformers must be carefully designed. These are usually single phase, core type transformers.
|
ER42
|
|||
|
Dimention(mm)
|
Pin Quantity(pcs)
|
Pin Array(mm)
|
Power
|
|
49*48*32.5
|
9+9
|
5
|
250W
|
|
Resistance(MAX)
|
Inductance
|
Leakage(MAX)
|
Test Condition
|
|
13-16=55mΩMAX
|
13-16=200uH±10%
|
13-16=51uH±12%
|
100KHz 1Vrms
|
