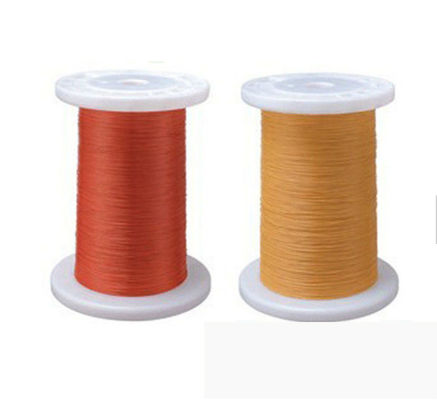

0.5MM YELLOW TRIPLE INSULATED COPPER WIRE ENAMELED WINDING WIRE ROLL PACKING UL CERTIFICATED
Triple insulated magnet wire is a standard wire of TIW-B series which is solderable wire of single conductor and triple insulation layers. The layers are organized by heat resistant modified polyester and polyamide.Class B and class F are available
MINIATURIZE OF SWITCHING TRANSFORMER
Exclusion of 'Creepage Distance' requirement and interleaved insulation bring epochal miniaturization.
EXCELLENT INSULATION QUALITY
Supreme UL grade of insulation:Reinforced Insulation
The most advanced insulation type: Triple extrusion
Electric Strength Test:
1.Straight Test:AC 3,000V/1 min above
2.Twisted Teat:AC 6,000V/1 min above
SUITABILITY FOR HIGH FREQUENCY
Suitable for 30kHz above high frequency purpose
Equalized electric quality with extrusion type
Low dielectric constant
Handing/Storage convenience-Superior physical strength and durability for abrasion
IMPROVED PRODUCTIVITY
Simple production processes: No barrier tape and interleaved insulation tape are required
Solderability: Soldering can be conducted without removal of insulation layer
SPECIFICATION
| Conductor m/m | End product m/m | Maximum Conductor Resistance at 20 ℃ | Minimum Elongation % | ||
| Diameter m/m | Tolerance m/m | Target outside diameter | Tolerance m/m | ||
| 0.15 | ±0.008 | 0.35 | ±0.02 | 1111 | 15 |
| 0.16 | ±0.008 | 0.36 | ±0.02 | 908.8 | 15 |
| 0.17 | ±0.008 | 0.37 | ±0.02 | 853.5 | 15 |
| 0.18 | ±0.008 | 0.38 | ±0.02 | 757 | 15 |
| 0.19 | ±0.008 | 0.39 | ±0.02 | 676.2 | 15 |
| 0.2 | ±0.008 | 0.4 | ±0.02 | 607.6 | 15 |
| 0.21 | ±0.008 | 0.41 | ±0.02 | 549 | 15 |
| 0.22 | ±0.008 | 0.42 | ±0.02 | 498.4 | 15 |
| 0.23 | ±0.008 | 0.43 | ±0.02 | 454.5 | 15 |
| 0.24 | ±0.008 | 0.44 | ±0.02 | 416.2 | 15 |
| 0.25 | ±0.008 | 0.45 | ±0.02 | 382.5 | 15 |
| 0.26 | ±0.010 | 0.46 | ±0.02 | 358.4 | 15 |
| 0.27 | ±0.010 | 0.47 | ±0.02 | 331.4 | 15 |
| 0.28 | ±0.010 | 0.48 | ±0.02 | 307.3 | 15 |
| 0.29 | ±0.010 | 0.49 | ±0.02 | 285.7 | 20 |
| 0.3 | ±0.010 | 0.5 | ±0.02 | 262.9 | 20 |
| 0.32 | ±0.010 | 0.52 | ±0.02 | 230 | 20 |
| 0.35 | ±0.010 | 0.55 | ±0.02 | 191.2 | 20 |
| 0.37 | ±0.010 | 0.57 | ±0.02 | 170.6 | 20 |
| 0.4 | ±0.010 | 0.6 | ±0.02 | 145.3 | 20 |
| 0.45 | ±0.010 | 0.65 | ±0.02 | 114.2 | 20 |
| 0.5 | ±0.010 | 0.7 | ±0.02 | 91.4 | 20 |
| 0.55 | ±0.020 | 0.75 | ±0.02 | 78.2 | 20 |
| 0.6 | ±0.020 | 0.8 | ±0.02 | 65.3 | 20 |
| 0.65 | ±0.020 | 0.85 | ±0.02 | 88.3 | 20 |
| 0.7 | ±0.020 | 0.9 | ±0.02 | 47.2 | 20 |
| 0.75 | ±0.020 | 0.95 | ±0.02 | 41.2 | 20 |
| 0.8 | ±0.020 | 1 | ±0.02 | 36.1 | 25 |
| 0.85 | ±0.020 | 1.05 | ±0.02 | 31.9 | 25 |
| 0.9 | ±0.020 | 1.1 | ±0.02 | 28.4 | 25 |
| 0.95 | ±0.020 | 1.15 | ±0.02 | 25.4 | 25 |
| 1 | ±0.030 | 1.2 | ±0.02 | 23.3 | 25 |
