| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | VDE/RoHS/UL |
| Model Number: | TIW-B |
| Minimum Order Quantity: | 3000 Meters |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 10-15 workding days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Certification: | VDE/RoHS/UL | Diameter: | 0.20mm |
|---|---|---|---|
| Color: | Yellow/black/blue | Temperature: | 130 |
| Conductor Material: | Copper | Insulation: | UEW |
| High Light: | insulated magnet wire,insulated copper wire |
||

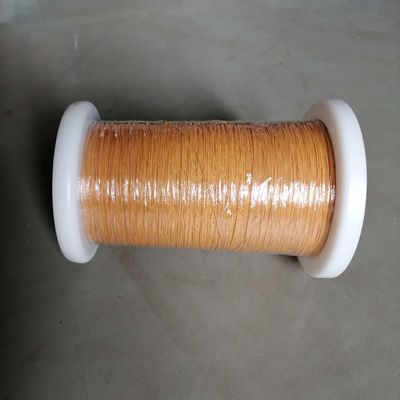

0.2MM TRIPLE INSULATED WIRE UEW INSULATION ENAMELED WINDING WIRE
We have 19 high-speed production lines with a monthly production capacity of 150 million meters, the largest production scale in China; we have our own insulation material formula and intellectual property rights; our triple insulated wire have passed UL, German VDE and China CQ C authority Certified, and obtained UL insulation system; we have a core competitive engineering and technical team, and continue to provide customers with quality products and services.
Our triple insulated wire meets all the leading international safety codes and enables transformers to be manufactured to meet safety isolation standards without the need of margins and tape barriers.The increased winding space permits smaller transformers to be designed and reduces manufacturing time and cost, Conductor diameters range from 0.1 mm to 1 mm.
Features and Benefits:
1. Consist of three layers of insulation. Completely isolate the primary winding from the secondary winding of transformers.
2. Greatly reduce the size and weight of transformers.
3. Greatly improve the efficiency of the transformer by reducing the distance between coils.
4. Allow to wind directly on the top of enameled wires. Eliminate the interleaved insulation tapes, barriers and insulating sleeves.
5. Solderable without the need of insulation pre-stripping
Specification:
| Characteristics | Test Standard | Conclusion | |
| 1 | Package | Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton’s seal is complete | OK |
| 2 | Bare Wire Diameter | 0.20±0.008MM | 0.195-0.203 |
| 3 | Overall Diameter | 0.40±0.020MM | 0.391-0.399 |
| 4 | Conductor Resistance | MAX: 595.50Ω/KM | 558Ω/KM |
| 5 | Breakdown voltage of straight wire | The length of wire 305mm,wind on the copper bar, test condition 1mA/60s/6.0KV | OK |
| 6 | Elongation | MIN:15% | 20-23.6% |
| 7 | Solder ability | 430± 5℃ 3-4 Secs | OK |
| Conclusion | Qualified | ||
