CLASS H 180 Colored High Frequency Litz Wire / Triple Insulated Copper Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/SGS
Model Number: 0.3*7
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Certification: IEC/NEMA/JIS/RoHS/ISO Color: Red/Pink/Blue/Yellow
Size: 0.3*7mm Packing: Plastic Roll Then In Carton
Rated Temperature: 130 Rated Voltage: 1000 Vrms
Solderability: Directly Conductor: High Purity Copper
High Light:

insulated magnet wire

,

insulated copper wire


Product Description

CLASS H 180 COLORED HIGH FREQUENCY LITZ WIRE TRIPLE INSULATED COPPER WIRE

TIW, a unique product for small transformers. Three layer extruded coatings of high performance polymer resins gives excellent dielectric properties to this type of winding wires. Unlike enamelled wires, three layers of insulation are extruded over the copper conductor by an automated manufacturing process ensure perfect central position of conductor. The conventional enamelled wire winding coils requires insulation between the primary and secondary coils by means of barrier tape or interlayer tape, to isolate primary and secondary windings. Since three layers coating is having very high dielectric strength, it has very less creepage factor. This positive feature of TIW serves to downsize switching transformers, and promises high production efficiency and cost reduction. Depending on the design, the transformer size can be reduced up to 40% and weight up to 60% as compared to transformers made up of enamelled wires.

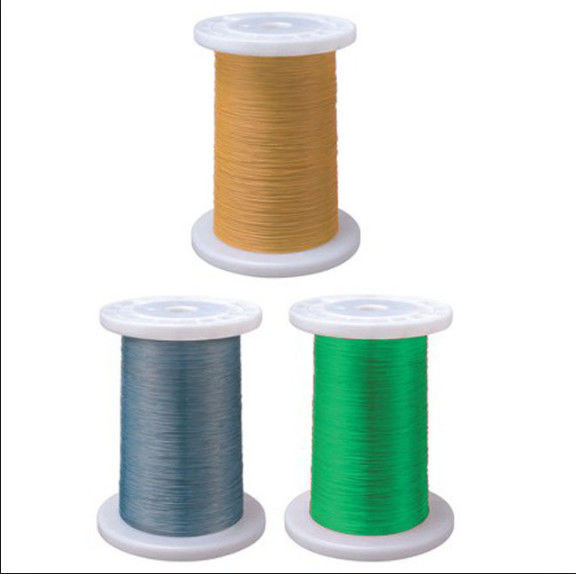

CLASS H 180 Colored High Frequency Litz Wire / Triple Insulated Copper Wire 0

SPECIFICATION

Size Conductor Dia mm Tolerance mm Overall Diameter(mm) Max
DCR
MAX MIN Min Normal Max Ω/km 20℃

7/0.10 0.1 0.003 -0.003 0.54 0.55 0.58 343.3
7/0.11 0.11 0.003 -0.003 0.57 0.58 0.61 282.1
7/0.12 0.12 0.003 -0.003 0.6 0.61 0.65 236
7/0.13 0.13 0.003 -0.003 0.63 0.64 0.68 200.3
7/0.14 0.14 0.003 -0.003 0.66 0.67 0.71 172.1
7/0.15 0.15 0.003 -0.003 0.69 0.7 0.74 149.5
7/0.16 0.16 0.003 -0.003 0.72 0.73 0.77 131
7/0.17 0.17 0.003 -0.003 0.75 0.76 0.8 115.8
7/0.18 0.18 0.003 -0.003 0.78 0.79 0.83 103.1
7/0.19 0.19 0.003 -0.003 0.81 0.82 0.86 92.4
7/0.20 0.2 0.003 -0.003 0.84 0.85 0.86 83.2
7/0.21 0.21 0.003 -0.003 0.87 0.88 0.92 75.4
7/0.22 0.22 0.003 -0.003 0.9 0.91 0.95 68.6
7/0.23 0.23 0.003 -0.004 0.93 0.94 0.99 63.2
7/0.24 0.24 0.003 -0.004 0.96 0.97 1.02 58
7/0.25 0.25 0.003 -0.004 0.99 1 1.05 53.4
7/0.26 0.26 0.003 -0.004 1.02 1.03 1.08 49.3
7/0.28 0.28 0.003 -0.004 1.08 1.09 1.14 42.4
7/0.30 0.3 0.003 -0.004 1.14 1.15 1.2 36.9
7/0.32 0.32 0.003 -0.005 1.2 1.21 1.26 32.6
7/0.35 0.35 0.003 -0.005 1.29 1.3 1.35 27.1
7/0.37 0.37 0.003 -0.005 1.35 1.36 1.41 24.2
40/0.1 0.1 0.003 -0.008 1.04 1.05 1.08 66.8
50/0.1 0.1 0.003 -0.008 1.14 1.15 1.18 53.4
100/0.1 0.1 0.003 -0.008 1.44 1.45 1.48 26.7
133/0.1 0.1 0.003 -0.008 1.73 1.74 1.77 20.1
175/0.05 0.05 0.003 -0.005 1.04 1.05 1.08 63.8
250/0.05 0.05 0.003 -0.005 1.19 1.2 1.205 44.7
