Super Fine Triple Insulated Wire Min Size 0.16mm Soft Copper Wire For Motor Winding

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Model Number: TIW-B
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Payment Terms: T/T, L/C
Supply Ability: 200 Ton/Tons per Month
Detail Information
Certification: IEC/NEMA/JIS/RoHS/ISO Delivery Time: 2-15 Days
Conductor Diameter: 0.16mm Size Range: 0.16-1.0mm
High Light:

insulated magnet wire

,

tiw wire


Product Description

SUPER FINETRIPLE INSULATED WIRE MIN. SIZE 0.16MM SOFT COPPER WIRE FOR MOTOR WINDING

We may be the only one supplier who can provide class F/155 triple insulated wire which size starts from 0.15mm. At this level, our quality is better than Furukawa that was tested by some transofmer manuafactures whom used triple insulated wire from Furukawa.Unlike enameled wires, 3 layers of insulation of patented design are extruded over the copper conductor. IEC60950 requires some Reinforced Insulation between the primary and secondary coils. Thus enamelled wire transformers can never omit the insulation tape or barrier tape: enamel coatings give poor electric insulation. In contrast, TIW can form primary and secondary coils without a need of barrier tape or interlayer tape in-between. Each TIW wire is equipped with a three-fold insulation around the conductor, which has been authorized as Reinforced Insulation. As a result, the creepage distance can never be limited and no insulation barrier is needed, when specifying distances between termination pins and coils.

FEATURES AND BENEFITS:

  • The insulation of the wire, which is made up of three layers, completely isolates the primary from secondary of the transformer.

  • Unlike conventional enameled wires, the TIW series is classified as a wire with three-layered, reinforced insulation (Whereas, SWW-2 is a wire with supplementary insulation) as generally provided for in various safety standards. Therefore, it eliminates barriers, interlayer tapes, and insulating tubes in a transformer.

  • In addition to the reduction in size and economy in material cost of the tramsformer made, TIW has an advantage of improving its performance by reducing the distance between the coils.

  • In joining the wires the insulation can be easily stripped off by manual operation. Therefore, the fusing of the three layers of insulation that may occur in soldering can be avoided. Furthermore, the insulation of TIW is strong enough to withstand high-speed winding on the automatic wire winder.

APPLICATION:

Switching transformers, information & telecommunications equipment, game machines, consumer goods, inverters and other similar devices.

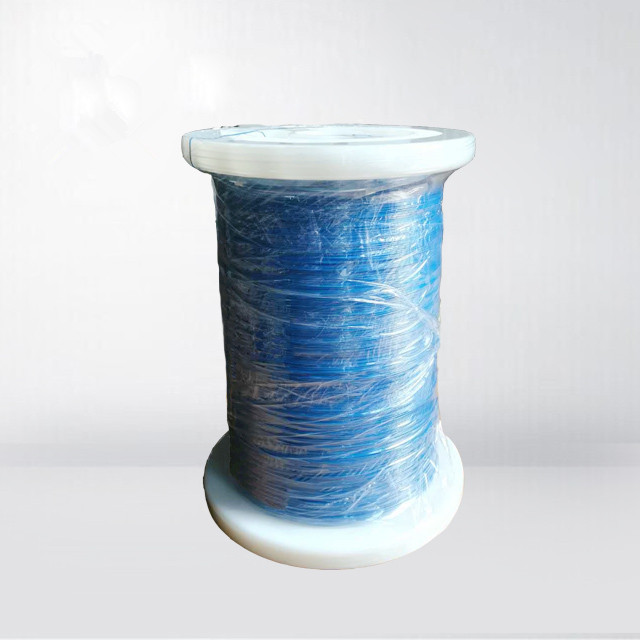

Super Fine Triple Insulated Wire Min Size 0.16mm Soft Copper Wire For Motor Winding 0

SPECIFICATION:

Spec

Max Conductor

Resistance (Q/km)

Quality

(kg/km)

Conductor

weigth (kg/km

Conductor

Dia(mm)

Tolerance

Insulation

Dia (mm)

0.16

± 0.008

0 . 330 - 0 . 370 - 0.390

908.8

0.289

0.179

0.2

± 0.008

0 . 360 - 0 . 400 - 0.420

607.6

0.398

0.2793

0.21

± 0.008

0 . 370 - 0 . 410 - 0.430

549

0.431

0.3079

0.22

± 0.008

0 . 380 - 0 . 420 - 0.440

498.4

0.465

0.3399

0.23

± 0.008

0 . 390 - 0 . 430 - 0.450

454.5

0.5

0.3694

0.24

± 0.008

0 . 400 - 0 . 440 - 0.460

416.2

0.537

0.4022

0.25

± 0.008

0 . 410 - 0 . 450 - 0.470

382.5

0.575

0.4364

0.26

± 0.010

0 . 420 - 0 . 460 - 0.480

358.4

0.616

0.472

0.27

± 0.010

0 . 430 - 0 . 470 - 0.490

331.4

0.656

0.509

0.28

± 0.010

0 . 440 - 0 . 480 - 0.500

307.3

0.697

0.5474

0.29

± 0.010

0 . 450 - 0 . 490 - 0.510

285.7

0.742

0.5872

0.30

± 0.010

0 . 460 - 0 . 500 - 0.520

262.9

0.786

0.6284

0.32

± 0.010

0 . 480 - 0 . 520 - 0.540

230.3

0.882

0.715

0.35

± 0.010

0 . 510 - 0 . 550 - 0.570

191.2

1.033

0.8553

0.37

± 0.010

0 . 530 - 0 . 570 - 0.590

170.6

1.143

0.9559

0.4

± 0.010

0 . 560 - 0 . 600 - 0.625

145.3

1.316

1.1172

0.45

± 0.010

0 . 610 - 0 . 650 - 0.675

114.2

1.633

1.4139

0.5

± 0.010

0 . 660 - 0 . 700 - 0.725

91.43

1.985

1.7456

0.55

± 0.020

0 . 710 - 0 . 750 - 0.780

78.15

2.371

2.1151

0.6

± 0.020

0 . 760 - 0 . 800 - 0.830

65.26

2.793

2.5136

0.65

± 0.020

0 . 810 - 0 . 850 - 0.880

55.31

3.249

2.95

0.7

± 0.020

0 . 860 - 0 . 900 - 0.930

47.47

3.741

3.4213

0.75

± 0.020

0 . 910 - 0 . 950 - 0.980

41.19

4.267

4.3611

0.8

± 0.020

0 . 960 - 1 . 000 - 1.030

36.08

4.829

4.4686

0.85

± 0.020

1 . 010 - 1 . 050 - 1.080

31.87

5.425

5.0446
