0.10-1.0mm 3 Layers Insulated Copper Wire Self Bonding Triple Insulated Enameled Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/SGS
Model Number: 0.1-1.0mm
Minimum Order Quantity: 3000 meters
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Contact Now
Detail Information
Color: Red Pink Black Blue Certification: UL/VDE/RoHS
Size: 0.10-1.0mm Packing: Plastic Roll Then In Carton
Rated Temperature: 130 Solderability: Directly
Conductor: Copper Solder Temperature: 420-470

Product Description

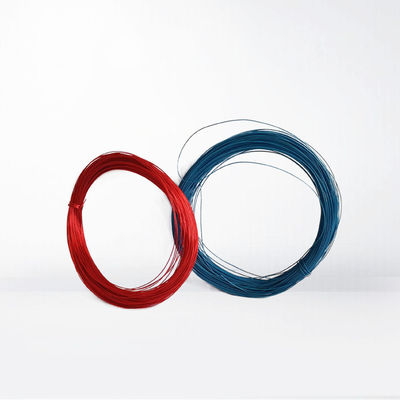

0.10-1.0MM 3LAYERS INSULATED COPPER WIRE SELF BONDING ENAMELED WIRE

We have 19 high-speed production lines with a monthly production capacity of 150 million meters, the largest production scale in China; we have our own insulation material formula and intellectual property rights; our triple insulated wire have passed UL, German VDE and China CQ C authority Certified, and obtained UL insulation system; we have a core competitive engineering and technical team, and continue to provide customers with quality products and services.

TIW,3- layers insulated copper wire a unique product for small transformers. Three layer extruded coatings of high performance polymer resins gives excellent dielectric properties to this type of winding wires. Unlike enamelled wires, three layers of insulation are extruded over the copper conductor by an automated manufacturing process ensure perfect central position of conductor. The conventional enamelled wire winding coils requires insulation between the primary and secondary coils by means of barrier tape or interlayer tape, to isolate primary and secondary windings. Since three layers coating is having very high dielectric strength, it has very less creepage factor. This positive feature of TIW serves to downsize switching transformers, and promises high production efficiency and cost reduction. Depending on the design, the transformer size can be reduced up to 40% and weight up to 60% as compared to transformers made up of enamelled wires.

0.10-1.0mm 3 Layers Insulated Copper Wire Self Bonding Triple Insulated Enameled Wire

0.10-1.0mm 3 Layers Insulated Copper Wire Self Bonding Triple Insulated Enameled Wire

Conductor m/m

End product m/m

Maximum Conductor Resistance at 20 ℃

Minimum Elongation %

Diameter m/m

Tolerance m/m

Target outside diameter

Tolerance m/m

0.15

±0.008

0.35

±0.02

1111

15

0.16

±0.008

0.36

±0.02

908.8

15

0.17

±0.008

0.37

±0.02

853.5

15

0.18

±0.008

0.38

±0.02

757

15

0.19

±0.008

0.39

±0.02

676.2

15

0.2

±0.008

0.4

±0.02

607.6

15

0.21

±0.008

0.41

±0.02

549

15

0.22

±0.008

0.42

±0.02

498.4

15

0.23

±0.008

0.43

±0.02

454.5

15

0.24

±0.008

0.44

±0.02

416.2

15

0.25

±0.008

0.45

±0.02

382.5

15

0.26

±0.010

0.46

±0.02

358.4

15

0.27

±0.010

0.47

±0.02

331.4

15

0.28

±0.010

0.48

±0.02

307.3

15

0.29

±0.010

0.49

±0.02

285.7

20

0.3

±0.010

0.5

±0.02

262.9

20

0.32

±0.010

0.52

±0.02

230

20

0.35

±0.010

0.55

±0.02

191.2

20

0.37

±0.010

0.57

±0.02

170.6

20

0.4

±0.010

0.6

±0.02

145.3

20

0.45

±0.010

0.65

±0.02

114.2

20

0.5

±0.010

0.7

±0.02

91.4

20

0.55

±0.020

0.75

±0.02

78.2

20

0.6

±0.020

0.8

±0.02

65.3

20

0.65

±0.020

0.85

±0.02

88.3

20

0.7

±0.020

0.9

±0.02

47.2

20

0.75

±0.020

0.95

±0.02

41.2

20

0.8

±0.020

1

±0.02

36.1

25

0.85

±0.020

1.05

±0.02

31.9

25

0.9

±0.020

1.1

±0.02

28.4

25

0.95

±0.020

1.15

±0.02

25.4

25

1

±0.030

1.2

±0.02

23.3

25
