| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | UL/SGS |
| Model Number: | 0.15-1.0mm |
| Minimum Order Quantity: | 30,000 meters |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T |
| Supply Ability: | Satisfy your demand |
| Color: | Yellow/Red/Black/Blue | Certification: | UL/VDE/RoHS |
|---|---|---|---|
| Size: | 0.15-1.0mm | Packing: | Plastic Roll Then In Carton |
| Rated Temperature: | 155 | Solderability: | Directly |
| Conductor: | Copper | Solder Temperature: | 420-470 |
| High Light: | insulated copper wire,tiw wire |
||

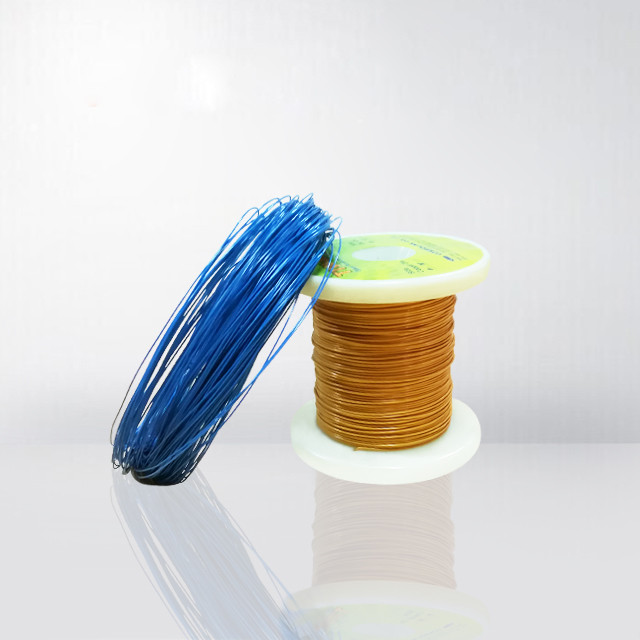

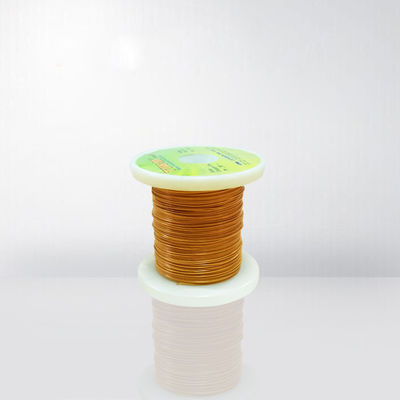

CLASS F 155 3 LAYERS REINFORCED WINDING COPPER WIRE
Class F Triple insulated wire meets all the leading international safety codes and enables transformers to be manufactured to meet safety insulation standards without the need of margins and tape barriers.The increased winding space permits smaller transformers to be designed and reduces manufacturing time and cost, conductor diameters range from 0.15mm to 1mm.And from the feedback from our customer, we are only one manufacture who can provide Class F 0.15mm, and that is in mass production.
FEATURE:
The feature of triple inslated wire is in its insulation layers. IEC standards require specified insulation between primary and secondary coils of transformers. And the standards do not accept general enameled wire as insulation therefore insulation tape or barrier tape are required in transformers using enameled wire. Triple insulated wire however, has triple insulation layers which comply IEC requirement and therefore can be used without barrier tape or interlayer tape between primary and secondary coils.
STRUCTURE:
SPOOL SIZE
