| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | ISO9001/ISO14001/UL/SGS |
| Model Number: | 0.15-1.0mm |
| Minimum Order Quantity: | 30,000 meters |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Color: | Yellow/Pink/Blue/Black/Red | Certification: | VDE/RoHS/UL |
|---|---|---|---|
| Size: | 0.15-1.0mm | Packing: | Plastic Roll Then In Carton |
| Rated Temperature: | 130/155 | Solderability: | Directly |
| Conductor: | Copper | Solder Temperature: | 420-470 |
| High Light: | insulated magnet wire,insulated copper wire |
||

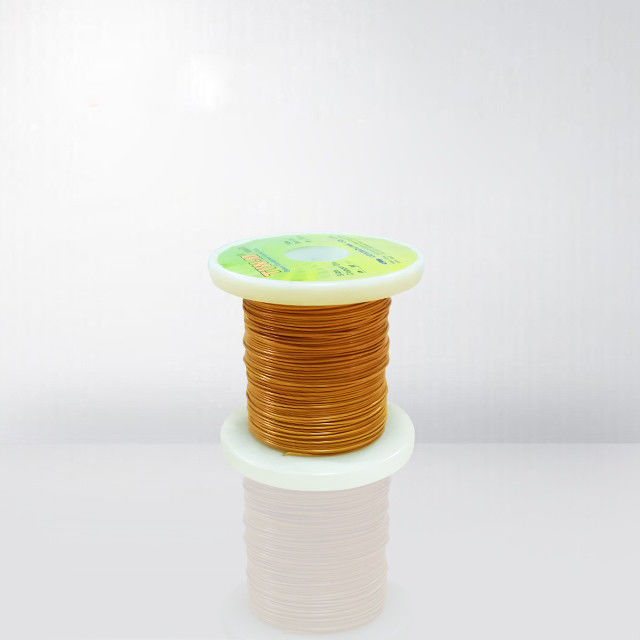

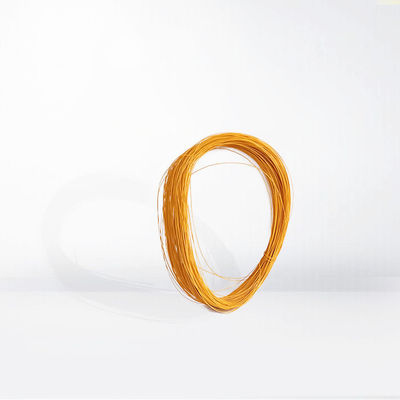

0.15 - 1.0MM SELF BONDING MAGNET COPPER WIRE TRIPLE INSULATED WIRE CLASS F
Ultra fine 0.15mm self solderable triple insulated wire is the product only rare manufacturer can provide, espeiclaly for class F/155. We may be the first provider who can produce 0.15mm class 155 with mass production in the world. That is better than Furukawa, this is not what we said but our customer in Europe.And our quality is similar to Furukawa, but price is much lower. We are the best choice for your enterprice.We also can provide self bonding or self adhesive triple insulated wire
FEATURE
Condutor size:0.15mm-1.0mm
Temperature Class:130/155
Working voltage:1000vms
Solder tempeature:420-470C
Breakdown voltage: Over 15KV
Complies with UL-2353,VDE IEC60950/61558 and CQC safety requirment
SPECIFICATION
<
| Conductor m/m | End product m/m | Maximum Conductor Resistance at 20 ℃ | Minimum Elongation % | ||
| Diameter m/m | Tolerance m/m | Target outside diameter | Tolerance m/m | ||
| 0.15 | ±0.008 | 0.35 | ±0.02 | 1111 | 15 |
| 0.16 | ±0.008 | 0.36 | ±0.02 | 908.8 | 15 |
| 0.17 | ±0.008 | 0.37 | ±0.02 | 853.5 | 15 |
| 0.18 | ±0.008 | 0.38 | ±0.02 | 757 | 15 |
| 0.19 | ±0.008 | 0.39 | ±0.02 | 676.2 | 15 |
| 0.2 | ±0.008 | 0.4 | ±0.02 | 607.6 | 15 |
| 0.21 | ±0.008 | 0.41 | ±0.02 | 549 | 15 |
| 0.22 | ±0.008 | 0.42 | ±0.02 | 498.4 | 15 |
| 0.23 | ±0.008 | 0.43 | ±0.02 | 454.5 | 15 |
| 0.24 | ±0.008 | 0.44 | ±0.02 | 416.2 | 15 |
| 0.25 | ±0.008 | 0.45 | ±0.02 | 382.5 | 15 |
| 0.26 | ±0.010 | 0.46 | ±0.02 | 358.4 | 15 |
| 0.27 | ±0.010 | 0.47 | ±0.02 | 331.4 | 15 |
| 0.28 | ±0.010 | 0.48 | ±0.02 | 307.3 | 15 |
| 0.29 | ±0.010 | 0.49 | ±0.02 | 285.7 | 20 |
| 0.3 | ±0.010 | 0.5 | ±0.02 | 262.9 | 20 |
| 0.32 | ±0.010 | 0.52 | ±0.02 | 230 | 20 |
| 0.35 | ±0.010 | 0.55 | ±0.02 | 191.2 | 20 |
| 0.37 | ±0.010 | 0.57 | ±0.02 | 170.6 | 20 |
| 0.4 | ±0.010 | 0.6 | ±0.02 | 145.3 | 20 |
| 0.45 | ±0.010 | 0.65 | ±0.02 | 114.2 | 20 |
| 0.5 | ±0.010 | 0.7 | ±0.02 | 91.4 | 20 |
| 0.55 | ±0.020 | 0.75 | ±0.02 | 78.2 | 20 |
| 0.6 | ±0.020 | 0.8 | ±0.02 | 65.3 | 20 |
| 0.65 | ±0.020 | 0.85 | ±0.02 | 88.3 | 20 |
| 0.7 | ±0.020 | 0.9 | ±0.02 | 47.2 | 20 |
| 0.75 | ±0.020 | 0.95 | ±0.02 | 41.2 | 20 |
| 0.8 | ±0.020 | 1 | ±0.02 | 36.1 | 25 |
| 0.85 | ±0.020 | 1.05 | ±0.02 | 31.9 | 25 |
| 0.9 | ±0.020 | 1.1 | ±0.02 | 28.4 | 25 |
| 0.95 | ±0.020 | 1.15 | ±0.02 | 25.4 | 25 |
| 1 | ±0.030 | 1.2 | ±0.02 | 23.3 | 25 |
