| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | UL/ROHS/ICE/ISO9001/ISO14001/OHSAS18000/ASG/CNAS/MA |
| Model Number: | PET |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | T/T, L/C,Negotiation |
| Supply Ability: | Satisfy your demand |
| Color: | Red/Pink/Blue/Yellow | Insulation: | Polyesterimide |
|---|---|---|---|
| Rated Voltage: | 1000vrms | Rated Temperature: | 130 |
| Solderability: | Directly | Certificate: | UL/ROHS/ICE/ISO9001/ISO14001/OHSAS18000/ASG/CNAS/MA |
| Size: | 0.1-1.00mm | ||
| High Light: | insulated magnet wire,tiw wire |
||

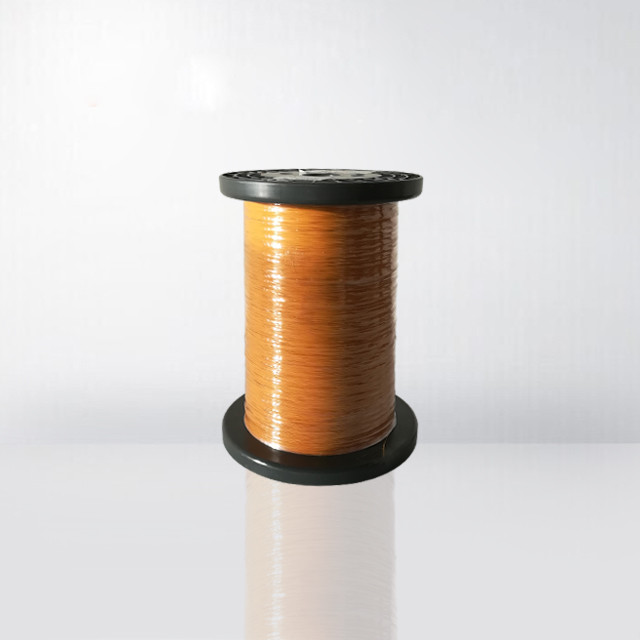

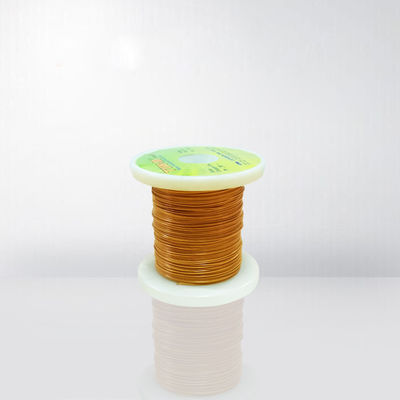

POLYESTERIMIDE TRIPLE INSULATED WIRE 0.1MM-1MM COPPER MAGNET WIRE
EXCELLENT INSULATION QUALTIY
Supreme UL grade of insulation:Reinforced Insulation
The most advanced insulation type: Triple extrusion
Electric Strength Test:1.Straight Test:AC 3,000V/1 min above
2.Twisted Teat:AC 6,000V/1 min above
SUITABILITY FOR HIGH FREQUENCY
Suitable for 30kHz above high frequency purpose
Equalized electric quality with extrusion type
Low dielectric constant
Handing/Storage convenience-Superior physical strength and durability for abrasion
IMPROVED PRODUCTIVITY
Simple production processes: No barrier tape and interleaved insulation tape are required
Solderability: Soldering can be conducted without removal of insulation layer
|
Conductor m/m
|
End product m/m
|
Maximum Conductor Resistance at 20 ℃
|
Minimum Elongation %
|
||
|
Diameter m/m
|
Tolerance m/m
|
Target outside diameter
|
Tolerance m/m
|
||
|
0.10
|
±0.008
|
0.30
|
±0.02
|
2264.7
|
15
|
|
0.12
|
±0.008
|
0.32
|
±0.02
|
1786.0
|
15
|
|
0.14
|
±0.008
|
0.34
|
±0.02
|
1286.0
|
15
|
|
0.15
|
±0.008
|
0.35
|
±0.02
|
1111.0
|
15
|
|
0.16
|
±0.008
|
0.36
|
±0.02
|
908.8
|
15
|
|
0.17
|
±0.008
|
0.37
|
±0.02
|
853.5
|
15
|
|
0.18
|
±0.008
|
0.38
|
±0.02
|
757.0
|
15
|
|
0.19
|
±0.008
|
0.39
|
±0.02
|
676.2
|
15
|
|
0.20
|
±0.008
|
0.40
|
±0.02
|
607.6
|
15
|
|
0.21
|
±0.008
|
0.41
|
±0.02
|
549.0
|
15
|
|
0.22
|
±0.008
|
0.42
|
±0.02
|
498.4
|
15
|
|
0.23
|
±0.008
|
0.43
|
±0.02
|
454.5
|
15
|
|
0.24
|
±0.008
|
0.44
|
±0.02
|
416.2
|
15
|
|
0.25
|
±0.008
|
0.45
|
±0.02
|
382.5
|
15
|
|
0.26
|
±0.010
|
0.46
|
±0.02
|
358.4
|
15
|
|
0.27
|
±0.010
|
0.47
|
±0.02
|
331.4
|
15
|
|
0.28
|
±0.010
|
0.48
|
±0.02
|
307.3
|
15
|
|
0.29
|
±0.010
|
0.49
|
±0.02
|
285.7
|
20
|
|
0.30
|
±0.010
|
0.50
|
±0.02
|
262.9
|
20
|
|
0.32
|
±0.010
|
0.52
|
±0.02
|
230.0
|
20
|
|
0.35
|
±0.010
|
0.55
|
±0.02
|
191.2
|
20
|
|
0.37
|
±0.010
|
0.57
|
±0.02
|
170.6
|
20
|
|
0.40
|
±0.010
|
0.60
|
±0.02
|
145.3
|
20
|
|
0.45
|
±0.010
|
0.65
|
±0.02
|
114.2
|
20
|
|
0.50
|
±0.010
|
0.70
|
±0.02
|
91.4
|
20
|
|
0.55
|
±0.020
|
0.75
|
±0.02
|
78.2
|
20
|
|
0.60
|
±0.020
|
0.80
|
±0.02
|
65.3
|
20
|
|
0.65
|
±0.020
|
0.85
|
±0.02
|
88.3
|
20
|
|
0.70
|
±0.020
|
0.90
|
±0.02
|
47.2
|
20
|
|
0.75
|
±0.020
|
0.95
|
±0.02
|
41.2
|
20
|
|
0.80
|
±0.020
|
1.00
|
±0.02
|
36.1
|
25
|
|
0.85
|
±0.020
|
1.05
|
±0.02
|
31.9
|
25
|
|
0.90
|
±0.020
|
1.10
|
±0.02
|
28.4
|
25
|
|
0.95
|
±0.020
|
1.15
|
±0.02
|
25.4
|
25
|
|
1.00
|
±0.030
|
1.20
|
±0.02
|
23.3
|
25
|
