1mm Triple Insulated Wire Copper Magnet Wire 130c Rated Temperature 1000vrms For Transformer

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Model Number: TIW-B
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Certification: UL/ROHS/ICE/ISO9001/ISO14001/OHSAS18000/ASG/CNAS/MA Product Name: 0.1mm Triple Insulated Wire
Color: Red/Pink/Blue/Yellow Rated Temperature: 130
Brand: Rvyuan Insulation: PET
Size: 0.1-1mm Rated Voltage: 1000vrms
Solderability: Directly
High Light:

insulated magnet wire

,

tiw wire


Product Description

1MM TRIPLE INSULATED WIRE COPPER MAGNET WIRE 130C RATED TEMPERATURE 1000VRMS FOR TRANSFORMER

EXCELLENT INSULATION QUALITY
Supreme UL grade of insulation:Reinforced Insulation
The most advanced insulation type: Triple extrusion
Electric Strength Test:1.Straight Test:AC 3,000V/1 min above
2.Twisted Teat:AC 6,000V/1 min above

SUITABILITY FOR HIGH FREQUENCY
Suitable for 30kHz above high frequency purpose
Equalized electric quality with extrusion type
Low dielectric constant
Handing/Storage convenience-Superior physical strength and durability for abrasion

IMPROVED PRODUCTIVITY
Simple production processes: No barrier tape and interleaved insulation tape are required

Solderability: Soldering can be conducted without removal of insulation layer

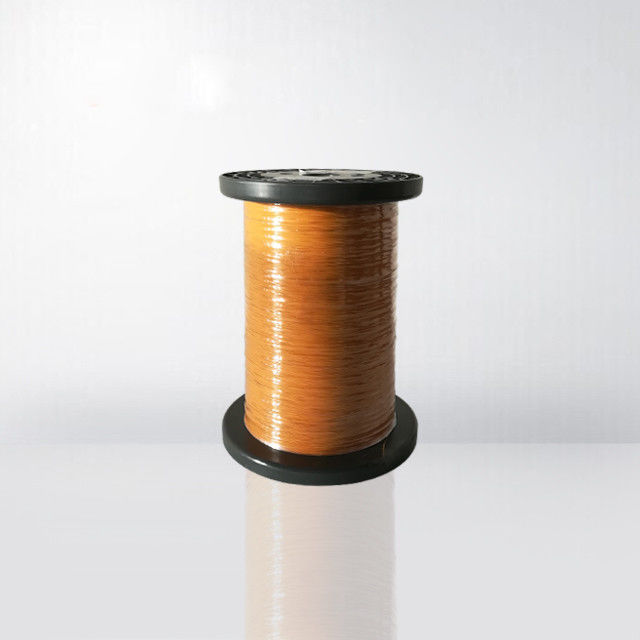

1mm Triple Insulated Wire Copper Magnet Wire 130c Rated Temperature 1000vrms For Transformer 0

SPECIFICATION

Conductor m/m
End product m/m
Maximum Conductor Resistance at 20 ℃
Minimum Elongation %
Diameter m/m
Tolerance m/m
Target outside diameter
Tolerance m/m
0.10
±0.008
0.30
±0.02
2264.7
15
0.12
±0.008
0.32
±0.02
1786.0
15
0.14
±0.008
0.34
±0.02
1286.0
15
0.15
±0.008
0.35
±0.02
1111.0
15
0.16
±0.008
0.36
±0.02
908.8
15
0.17
±0.008
0.37
±0.02
853.5
15
0.18
±0.008
0.38
±0.02
757.0
15
0.19
±0.008
0.39
±0.02
676.2
15
0.20
±0.008
0.40
±0.02
607.6
15
0.21
±0.008
0.41
±0.02
549.0
15
0.22
±0.008
0.42
±0.02
498.4
15
0.23
±0.008
0.43
±0.02
454.5
15
0.24
±0.008
0.44
±0.02
416.2
15
0.25
±0.008
0.45
±0.02
382.5
15
0.26
±0.010
0.46
±0.02
358.4
15
0.27
±0.010
0.47
±0.02
331.4
15
0.28
±0.010
0.48
±0.02
307.3
15
0.29
±0.010
0.49
±0.02
285.7
20
0.30
±0.010
0.50
±0.02
262.9
20
0.32
±0.010
0.52
±0.02
230.0
20
0.35
±0.010
0.55
±0.02
191.2
20
0.37
±0.010
0.57
±0.02
170.6
20
0.40
±0.010
0.60
±0.02
145.3
20
0.45
±0.010
0.65
±0.02
114.2
20
0.50
±0.010
0.70
±0.02
91.4
20
0.55
±0.020
0.75
±0.02
78.2
20
0.60
±0.020
0.80
±0.02
65.3
20
0.65
±0.020
0.85
±0.02
88.3
20
0.70
±0.020
0.90
±0.02
47.2
20
0.75
±0.020
0.95
±0.02
41.2
20
0.80
±0.020
1.00
±0.02
36.1
25
0.85
±0.020
1.05
±0.02
31.9
25
0.90
±0.020
1.10
±0.02
28.4
25
0.95
±0.020
1.15
±0.02
25.4
25
1.00
±0.030
1.20
±0.02
23.3
25
