Place of Origin: | China |
---|---|
Brand Name: | Rvyuan |
Certification: | IEC/NEMA/JIS/RoHS/ISO |
Model Number: | 0.1 - 1.0mm |
Minimum Order Quantity: | Different types with differet MOQ |
Price: | Negotiation |
Packaging Details: | Spool with carton |
Delivery Time: | 2-15 workding days |
Payment Terms: | Negotiation, T/T |
Supply Ability: | Satisfy your demand |
Insulation: | UEW/EIAIW/EIW | Diameter: | 0.1 - 1.0MM |
---|---|---|---|
Color: | Red/Pink/Blue/Yellow | Material: | Copper |
Thermal Class: | 130/155/180/200/220 | Certificates: | VDE/UL |
Breakdown Voltage: | Over 3KV | Outer Diameter: | 0.11-1.02mm |
High Light: | insulated copper wire,tiw wire |

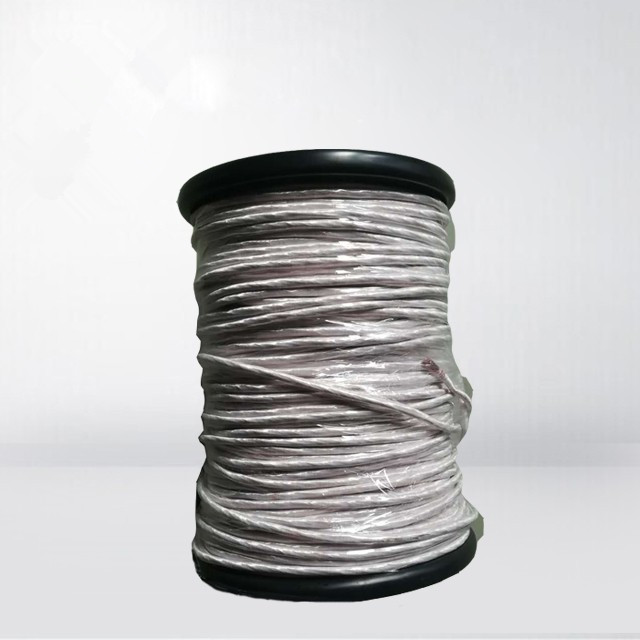

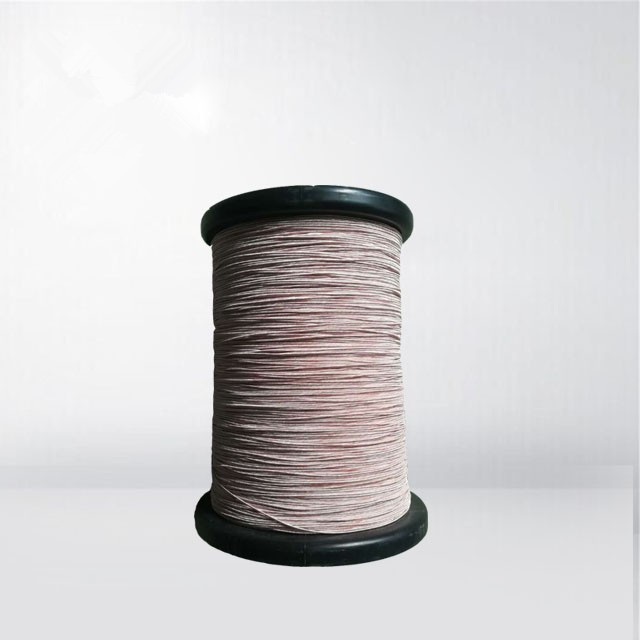

UL CERTIFICATED 0.1-1.0MM SELF BONDING SILK COVERED TRIPLE INSULATED WIRE
We may be the only one supplier who can provide class F/155 triple insulated wire which size starts from 0.15mm. At this level, our quality is better than Furukawa that was tested by some transofmer manuafactures whom used triple insulated wire from Furukawa.Silk covered triple insulated wire are extruded over the copper conductor. IEC60950 requires some Reinforced Insulation between the primary and secondary coils. Thus enamelled wire transformers can never omit the insulation tape or barrier tape: enamel coatings give poor electric insulation. In contrast, TIW can form primary and secondary coils without a need of barrier tape or interlayer tape in-between. By putting a stick silk from around the package in three layers of insulation surface, achieve three layers of insulation adhesive. Part can replace original adhesive three-tier insulation lines, costs and delivery the original factory.
FEATURES AND BENEFITS:
Certified as Reinforced Insulation; tree layers can resist up to 3,000 ACV for one minute.
Soldered without any surface layer bared (stripped).
Smoothly coiled by automatic coiling machines.
Offering a wide size choice of 0.1 to 1.0mm (conductor diameter
SPECIFICATION:
Conductor m/m | End product m/m | Maximum Conductor Resistance at 20 ℃ | Minimum Elongation % | ||
Diameter m/m | Tolerance m/m | Target outside diameter | Tolerance m/m | ||
0.1 | ±0.008 | 0.3 | ±0.02 | 2264.7 | 15 |
0.12 | ±0.008 | 0.32 | ±0.02 | 1786 | 15 |
0.14 | ±0.008 | 0.34 | ±0.02 | 1286 | 15 |
0.15 | ±0.008 | 0.35 | ±0.02 | 1111 | 15 |
0.16 | ±0.008 | 0.36 | ±0.02 | 908.8 | 15 |
0.17 | ±0.008 | 0.37 | ±0.02 | 853.5 | 15 |
0.18 | ±0.008 | 0.38 | ±0.02 | 757 | 15 |
0.19 | ±0.008 | 0.39 | ±0.02 | 676.2 | 15 |
0.2 | ±0.008 | 0.4 | ±0.02 | 607.6 | 15 |
0.21 | ±0.008 | 0.41 | ±0.02 | 549 | 15 |
0.22 | ±0.008 | 0.42 | ±0.02 | 498.4 | 15 |
0.23 | ±0.008 | 0.43 | ±0.02 | 454.5 | 15 |
0.24 | ±0.008 | 0.44 | ±0.02 | 416.2 | 15 |
0.25 | ±0.008 | 0.45 | ±0.02 | 382.5 | 15 |
0.26 | ±0.010 | 0.46 | ±0.02 | 358.4 | 15 |
0.27 | ±0.010 | 0.47 | ±0.02 | 331.4 | 15 |
0.28 | ±0.010 | 0.48 | ±0.02 | 307.3 | 15 |
0.29 | ±0.010 | 0.49 | ±0.02 | 285.7 | 20 |
0.3 | ±0.010 | 0.5 | ±0.02 | 262.9 | 20 |
0.32 | ±0.010 | 0.52 | ±0.02 | 230 | 20 |
0.35 | ±0.010 | 0.55 | ±0.02 | 191.2 | 20 |
0.37 | ±0.010 | 0.57 | ±0.02 | 170.6 | 20 |
0.4 | ±0.010 | 0.6 | ±0.02 | 145.3 | 20 |
0.45 | ±0.010 | 0.65 | ±0.02 | 114.2 | 20 |
0.5 | ±0.010 | 0.7 | ±0.02 | 91.4 | 20 |
0.55 | ±0.020 | 0.75 | ±0.02 | 78.2 | 20 |
0.6 | ±0.020 | 0.8 | ±0.02 | 65.3 | 20 |
0.65 | ±0.020 | 0.85 | ±0.02 | 88.3 | 20 |
0.7 | ±0.020 | 0.9 | ±0.02 | 47.2 | 20 |
0.75 | ±0.020 | 0.95 | ±0.02 | 41.2 | 20 |
0.8 | ±0.020 | 1 | ±0.02 | 36.1 | 25 |
0.85 | ±0.020 | 1.05 | ±0.02 | 31.9 | 25 |
0.9 | ±0.020 | 1.1 | ±0.02 | 28.4 | 25 |
0.95 | ±0.020 | 1.15 | ±0.02 | 25.4 | 25 |
1 | ±0.030 | 1.2 | ±0.02 | 23.3 | 25 |
