Name: USTC / UDTC 0.071mmx840 Silk Covered Litz Wire For Transformer
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: USTC
Price: 24.06 USD
Availability: InStock

USTC / UDTC 0.071mmx840 Silk Covered Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.071mm	Temperature:	155/180
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	840	Breakdown Voltage:	1300
Insulation:	UEW	Product Name:	USTC/UDTC 0.071mmx840 Silk Covered Litz Wire For Transformer
Key Word:	USTC/UDTC 0.071mmx840 Silk Covered Litz Wire For Transformer
Highlight:	USTC Silk Covered Litz Wire , Transformer Silk Covered Litz Wire , UDTC Silk Covered Litz Wire

Product Description

USTC/UDTC 0.071mmx840 Silk Covered Litz Wire For Transformer

Feature highlights of silk covered litz wire

1.This nylon served litz wire features copper stranded construction with polyurethane insulation, offering a breakdown voltage of 2600V and a temperature range of 155℃-180℃.

2.The product adheres to IEC, JIS and NEMA standards, ensuring global compliance. Certifications including UL, ROSH, Reach, highlighting regulatory advantages like safety compliance and enhancing market access for buyers.

Outgoing test of silk covered litz wire	Spec: 0.071x840	Model: 2USTC-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.071-0.084	0.079	0.080
Conductor diameter(mm)	0.071±0.003	0.068	0.070
Overall diameter (mm)	Max.3.20	2.65	2.85
Pitch(mm)	40±10	√	√
Max resistance (Ω/m at20℃)	Max. 0.005940	0.005394	0.005400
Breakdown voltage Mini (V)	950	2600	2700

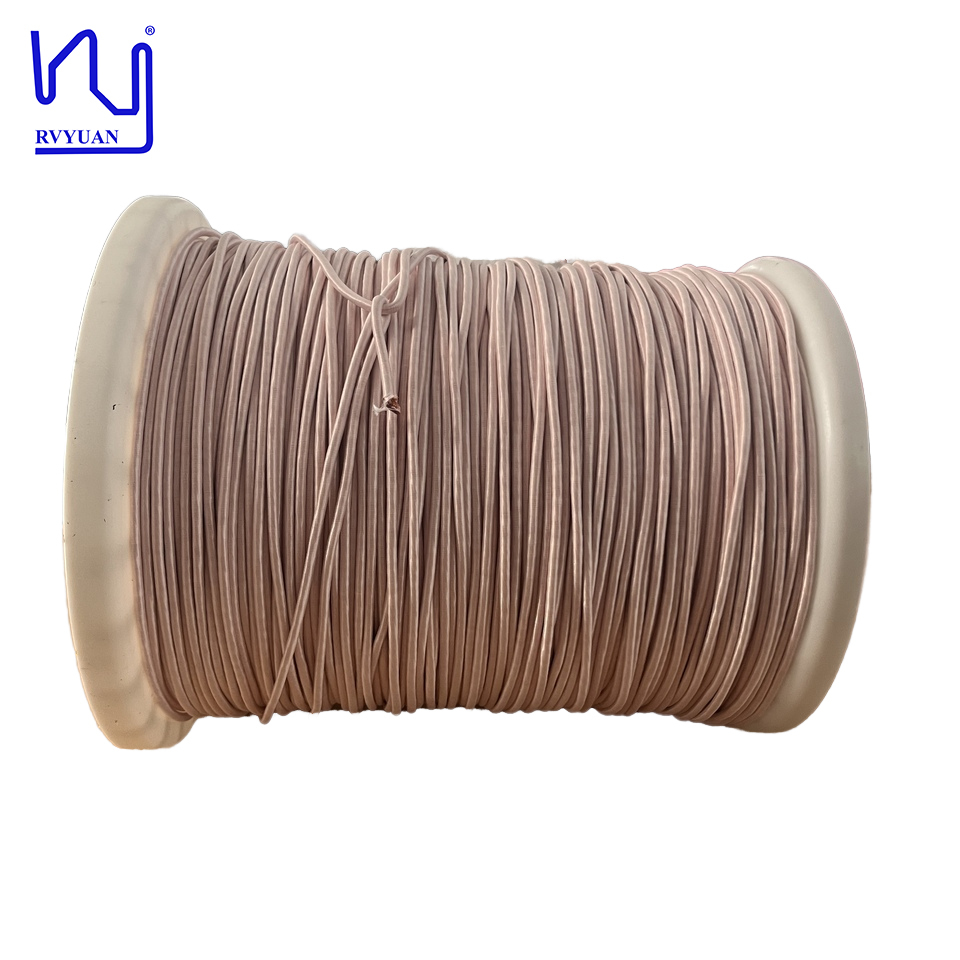

USTC / UDTC 0.071mmx840 Silk Covered Litz Wire For Transformer 0
