Diameter 0.071mm Silk Serverd Magnet Wire With 840 Strands Copper Conductor

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.071mm	Temperature:	155/180
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	840	Breakdown Voltage:	1300
Insulation:	UEW	Product Name:	Silk Serverd Magnet Wire 0.071mmx840 Strands
Key Word:	Silk Serverd Magnet Wire 0.071mmx840 Strands
Highlight:	Silk Serverd Magnet Wire , 0.071mm Silk Serverd Magnet Wire

Product Description

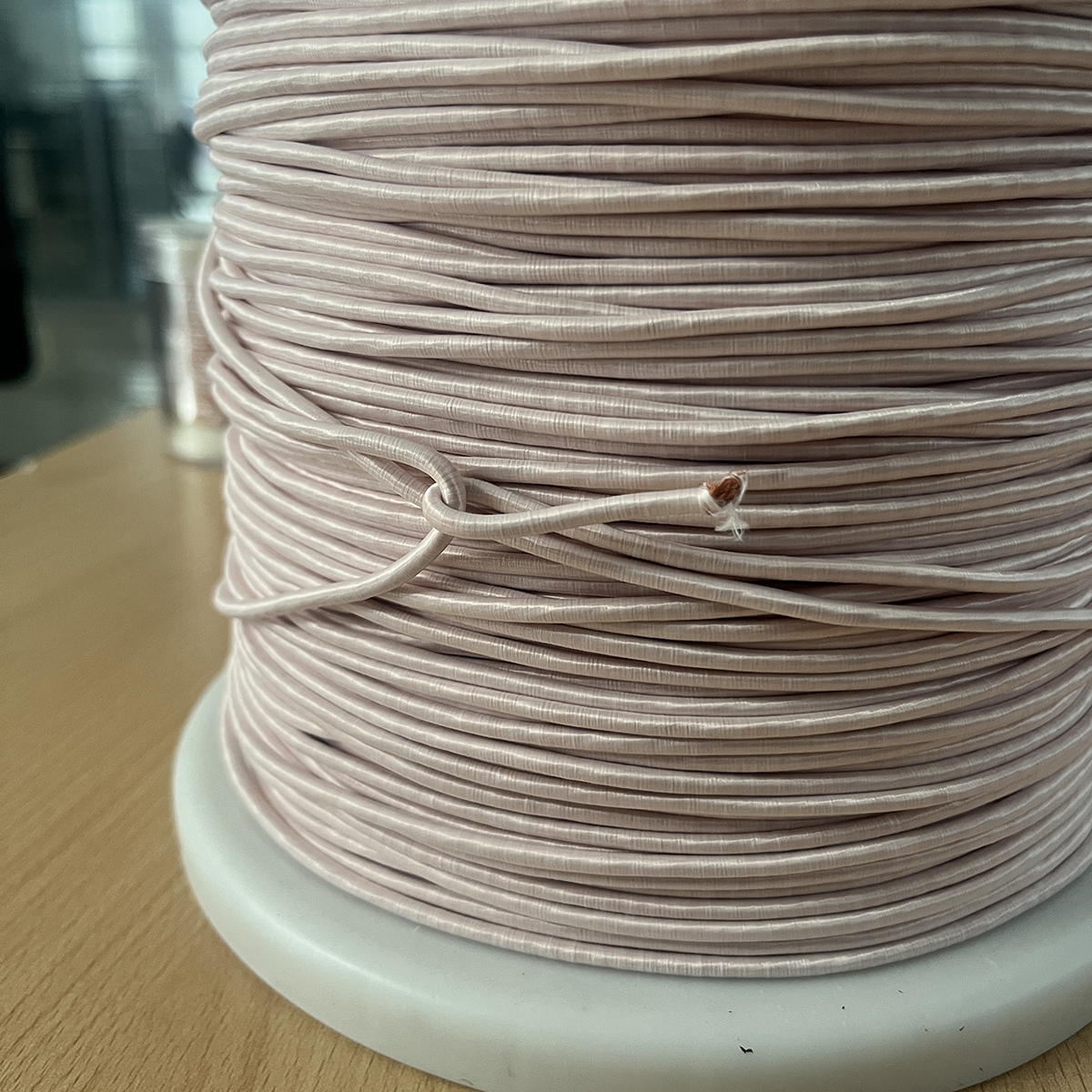

Silk Serverd Magnet Wire 0.071mmx840 Strands

Reduced Skin Effect: Litz wire is made up of many thin strands of wire, which helps to minimize the skin effect at high frequencies. This allows for more efficient current distribution across the wire, improving performance in RF applications.

Lower Losses: The combination of litz construction and silk insulation can lead to lower resistive losses compared to solid or standard insulated wires, making it ideal for high-efficiency applications.

Outgoing test of silk covered litz wire	Spec: 0.071x840	Model: 2USTC-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.071-0.084	0.079	0.080
Conductor diameter(mm)	0.071±0.003	0.068	0.070
Overall diameter (mm)	Max.3.20	2.65	2.85
Pitch(mm)	40±10	√	√
Max resistance (Ω/m at20℃)	Max. 0.005940	0.005394	0.005400
Breakdown voltage Mini (V)	950	2600	2700

Diameter 0.071mm Silk Serverd Magnet Wire With 840 Strands Copper Conductor
