Detail Information

Single Wire:	0.071mm	Number Of Strands:	84
Jacket:	Natural Silk	Color Options:	Red/green/white
Conductor Material:	Silver	Key Word:	Conductivity Real Silver Litz Wire 84 Strands 0.071mm Single Wire
Product Name:	Conductivity Real Silver Litz Wire 84 Strands 0.071mm Single Wire
Highlight:	0.071mm Silver Litz Wire , 84 Strands Silver Litz Wire , Conductivity Silver Litz Wire

Product Description

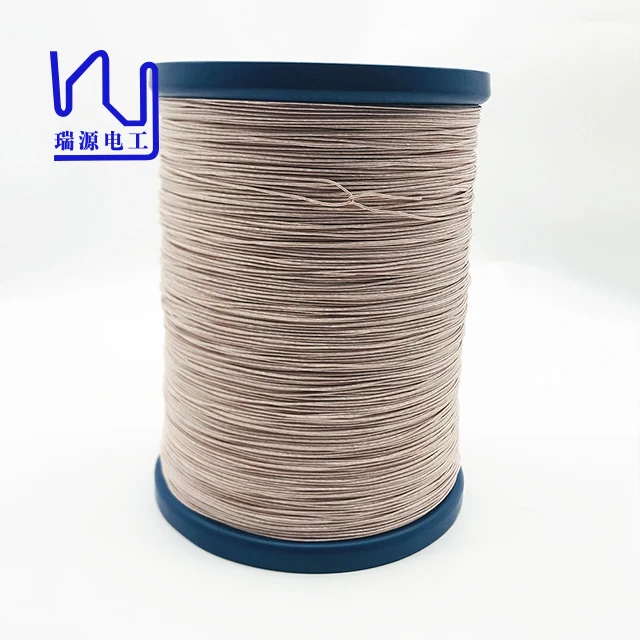

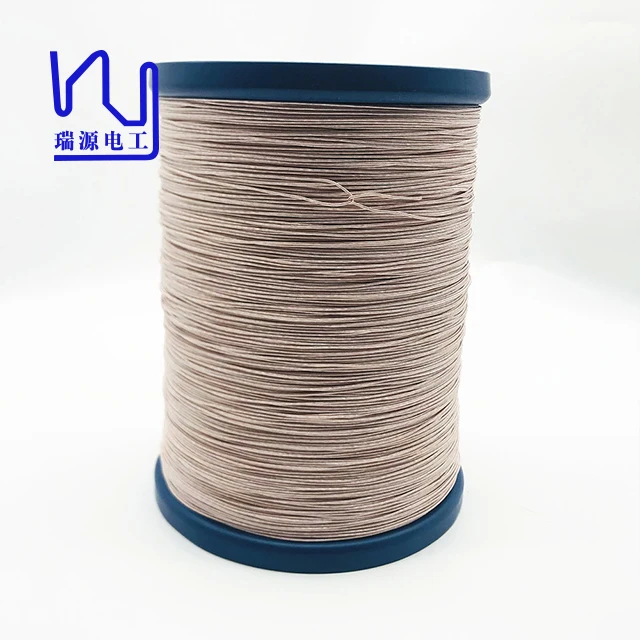

Conductivity Real Silver Litz Wire 84 Strands 0.071mm Single Wire

The application of pure silver wire:

In the audio field, the advantages of silk covered silver Litz wire are particularly evident in high-performance audio systems, including amplifiers, speakers and high-fidelity headphones.

The advantages of pure silver wire:

The wire's excellent electrical conductivity, dielectric properties and mechanical strength make it ideal for connecting audio components and ensuring faithful reproduction of sound. Whether used in professional recording studios, home audio setups, or custom audio installations, this specialized cable delivers superior performance and reliability to meet the stringent requirements of audio enthusiasts and professionals alike.

Product Specifications:

Product Name	Ustc Litz Wire
Conductor Material	Pure Silver
Single Wire Diameter	0.071mm
Jacket Material	Natural Silk
Product name	Conductivity Real Silver Litz Wire 84 Strands 0.071mm Single Wire
Key word	Conductivity Real Silver Litz Wire 84 Strands 0.071mm Single Wire

Characteristics	Technical requests	Test Results
Surface	Good	OK
Max. of Single Outer diameter mm	0.084	0.083
Conductor diameter mm	0.071±0.003	0.071
Overall diameter mm	Max.1.04mm	1.00
Breakdown Voltage	≥ 1.1 KV	3000
Pinhole test	≤ 25 hole/6m	2
Conductor Resistance (20℃ Ω/m)	≤ 0.05625	0.05108
Pitch	29mm±5	OK
Solderability	390± 5℃ 4 Sec Smooth	OK

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	USTCF litz wire

Minimum Order Quantity:	2kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	15 days
Payment Terms:	TT/Paypal
Supply Ability:	100kg/week
