2 - 15000 Strands 155 / 180 Ustc Nylon Covered Litz Wire Copper Twisted Silk Covered

Basic Information

Get Best Price Contact Now

Detail Information

Name:	2 - 15000 Strands 155 / 180 USTC Copper Twisted Wire Silk Covered Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Single Wire Diameter Options:	0.03mm-0.5mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Cover Options:	Nylon/polyerster/natural Silk
Rated Temperature:	155/180	Key Word:	2 - 15000 Strands 155 / 180 USTC Copper Twisted Wire Silk Covered Litz Wire
No. Of Strands:	560
Highlight:	6000 strands ustc litz wire , twisted ustc litz wire , 2 strands ustc wire

Product Description

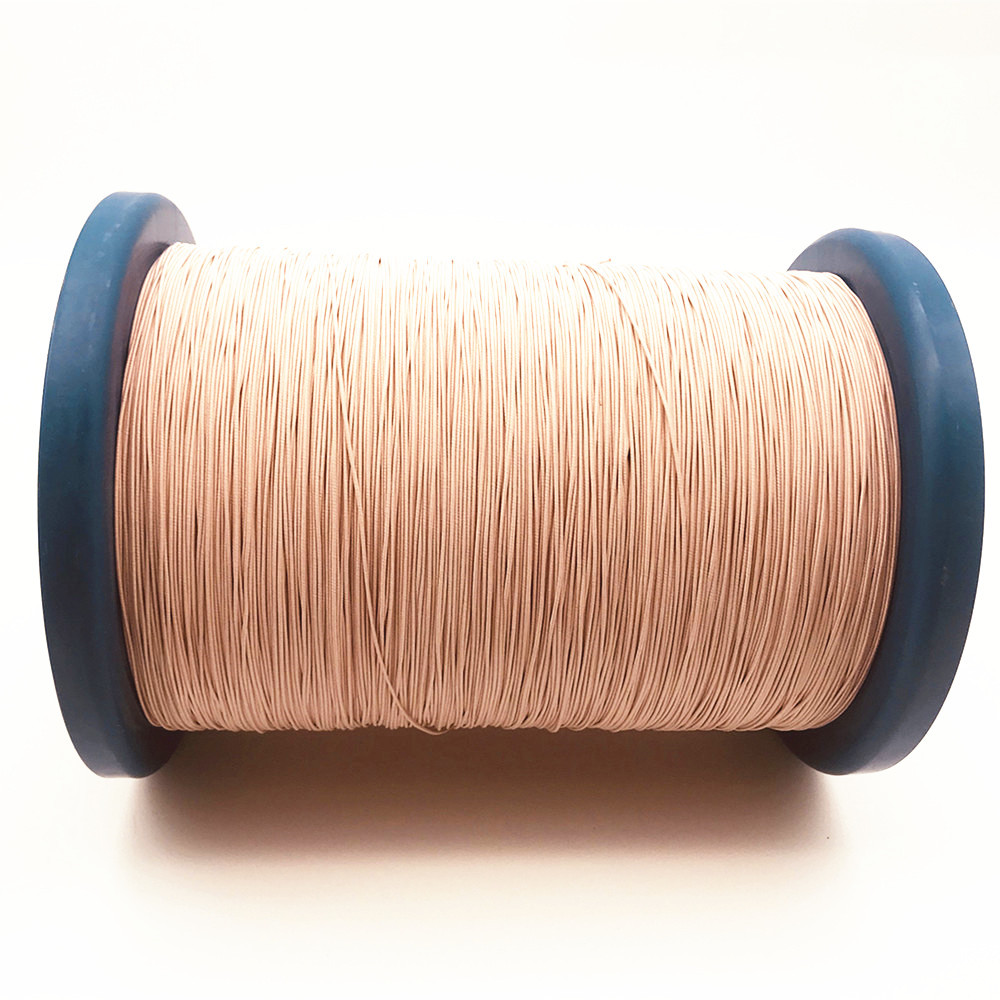

2 - 15000 Strands 155 / 180 USTC Copper twisted wire Silk covered litz wire

Single wire diameter (mm): 0.03-0.50

Number of strands: 2-15000

Paint film insulation class: Class B/Class F/Class H

Enamel material of single wire: Polyurethane

Enamel thickness: 1UEW/2UEW/3UEW

Stranding method: single twist/multiple twist

Stranding direction: forward (S)/reverse (Z)

Silk layer color: white/red/green

Number of silk layers: 1/2/4

Reel Specifications: PT-10/PT-15

Applications of silk covered litz wire:

Test report: 0.08mm x 560 strands, thermal grade 180
Item	Standard	Test result
Single wire diameter mm	0.087-0.103	0.090	0.093
Max. overall diameter(mm)	3.35	2.55	2.70
Max.O.D. mm	0.08±0.003	0.078	0.080
Max. Resistance Ω/m at20℃	0.006741	0.00618	0.00622
Mini breakdown voltage	1100	2700	3200

2 - 15000 Strands 155 / 180 Ustc Nylon Covered Litz Wire Copper Twisted Silk Covered 0
