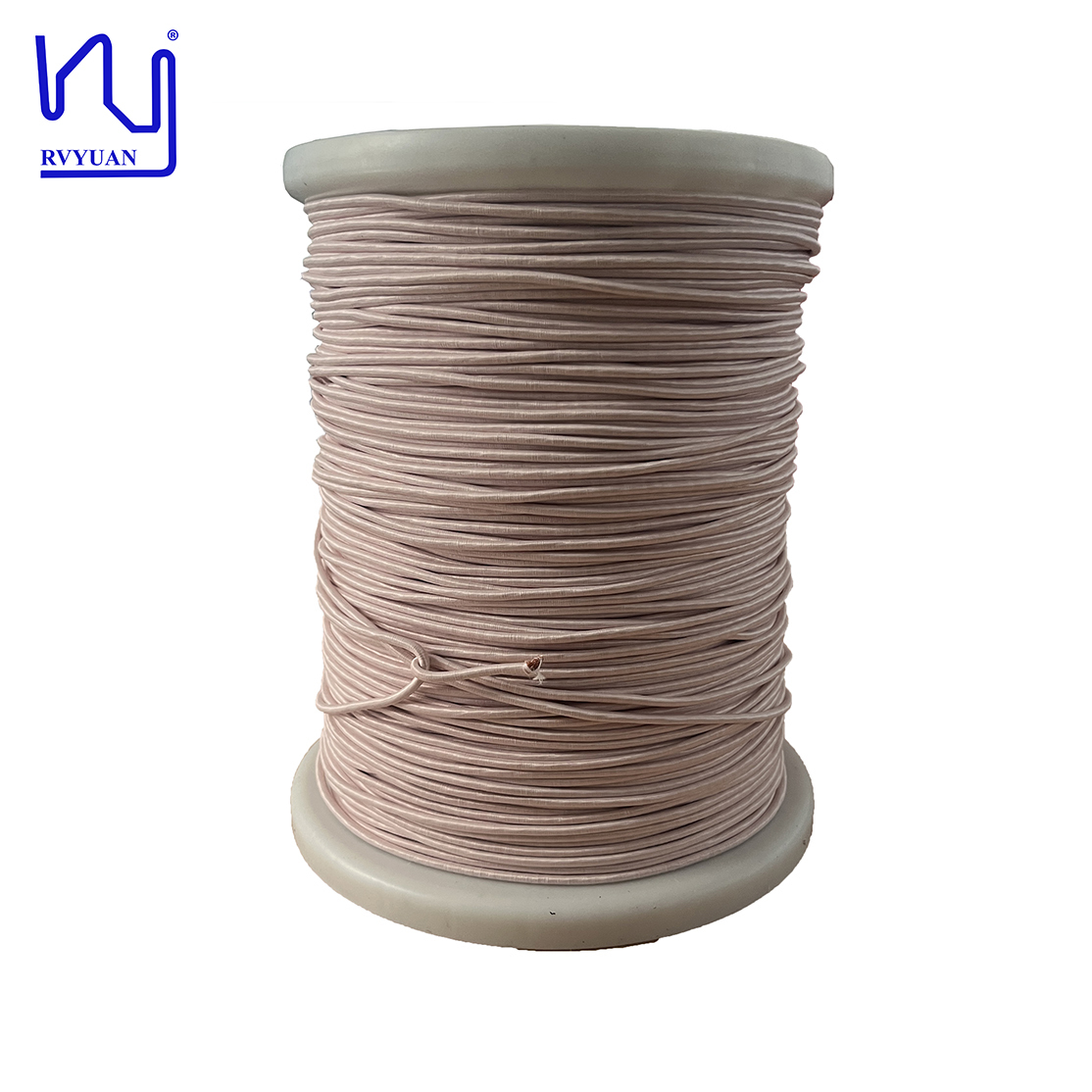

Solderable 840 StrandsX0.071mm Nylon Wrapped Copper Silk Covered Litz Wire for Solar Inverters

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.071mm	Temperature:	155/180
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	840	Breakdown Voltage:	1300
Insulation:	UEW	Product Name:	Manufacturer Solderable 840 StrandsX0.071mm Nylon Wrapped Copper Silk Covered Litz Wire For Solar Inverters
Key Word:	Manufacturer Solderable 840 StrandsX0.071mm Nylon Wrapped Copper Silk Covered Litz Wire For Solar Inverters
Highlight:	840 Strands 0.071mm Litz Wire , nylon wrapped copper silk , solar inverters Litz Wire

Product Description

Manufacturer Solderable 84 StrandsX0.071mm Nylon Wrapped Copper Silk Covered Litz Wire for Solar Inverters

This is a custom-made silk covered litz wire, featuring a conductor diameter of 0.071mm made of pure copper with polyurethane enamel. This enameled copper wire is available in two temperature ratings: 155 degrees Celsius and 180 degrees Celsius. It is currently the most commonly used wire for making silk covered litz wire and can generally meet your product’s temperature requirements.

Outgoing test of silk covered litz wire	Spec: 0.071x840	Model: 2USTC-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.071-0.084	0.079	0.080
Conductor diameter(mm)	0.071±0.003	0.068	0.070
Overall diameter (mm)	Max.3.20	2.65	2.85
Pitch(mm)	40±10	√	√
Max resistance (Ω/m at20℃)	Max. 0.005940	0.005394	0.005400
Breakdown voltage Mini (V)	950	2600	2700

Solderable 840 StrandsX0.071mm Nylon Wrapped Copper Silk Covered Litz Wire for Solar Inverters 0
