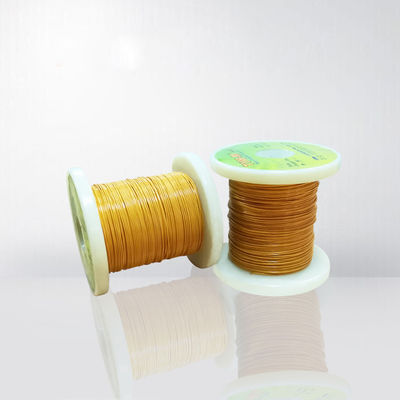

0.16 - 1.0mm TIW Wire High Voltage Magnet Copper Wire For Memory

0.16 - 1.0mm TIW Wire High Voltage Magnet Copper Wire For Memory

Triple insulated wire is a kind of high performance insulation wire, the wire has three insulation layer, the core, is among the first layer is a golden brown polyamine thin film, the thickness of a few microns, but can bear the pulse high voltage of 3 Kv, the 2nd is high insulation paint coating, the third layer is transparent glass fiber layer, the total thickness of insulating layer is only 20-100 um, its advantage is high dielectric strength, between any two layer can withstand the safety of the Ac 3000 To 6000 v voltage, electric current density.

FEATURES AND BENEFITS

• Rolled coil easily.

• High voltage insulation, could save insulating tape, insulating interlayer.

• Superior wear resistance for high speed automatic Transformer winding line.

• Three layers of insulation protection, there is no pinhole phenomenon.

• Self Solderable So No Striping Required.

• Size Of The Transformer Can Be Cut down To 50% Due To No Requirement Of Interlayer Tapes

• Save copper due to less number of turns required after eliminating insulating tape & interlayer.

APPLICATION
• SMPS for units of printer, facsimile, memory, computer, monitor, inverter, game machine.
• Battery Charger for assemblies of digital camera, portable telephone, 8 mm VCR, AC adapter, personal computer, DVD.
• Operating Frequencies: Typically 85 kHz to 200 kHz but level with a maximum of 500 kHz
