Dacron / Nylon Fiber Served Silk Covered Litz Wire Copper Litz Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.1-8mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
No. Of Strands: 2 - 36000 Outer Insulation Material: Nylon/Dacon Fiber
Overall Diamete: 0.1-8mm Diameter Of Strands: 0,020-0,500 Mm
Packing: Carton Port: Tianjin
High Light:

served litz wire

,

rectangular litz wire


Product Description

DACRON NYLON FIBER SERVED COPPER LITZ WIRE SELF BONDING WIRE FOR PEAKING COIL

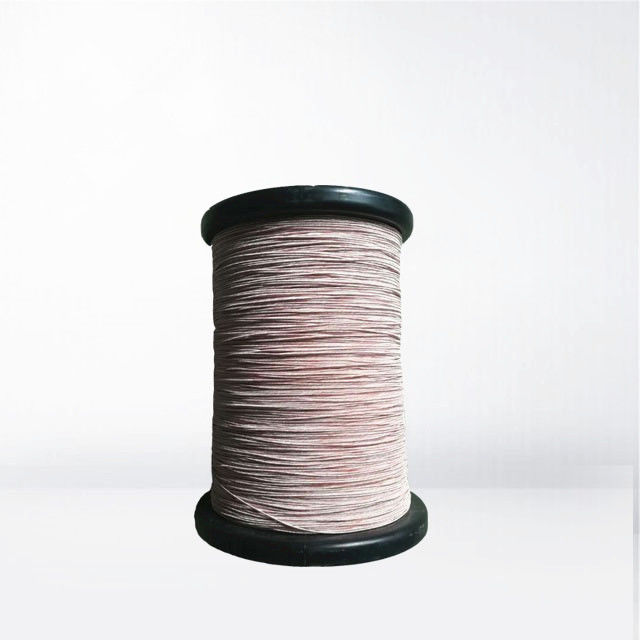

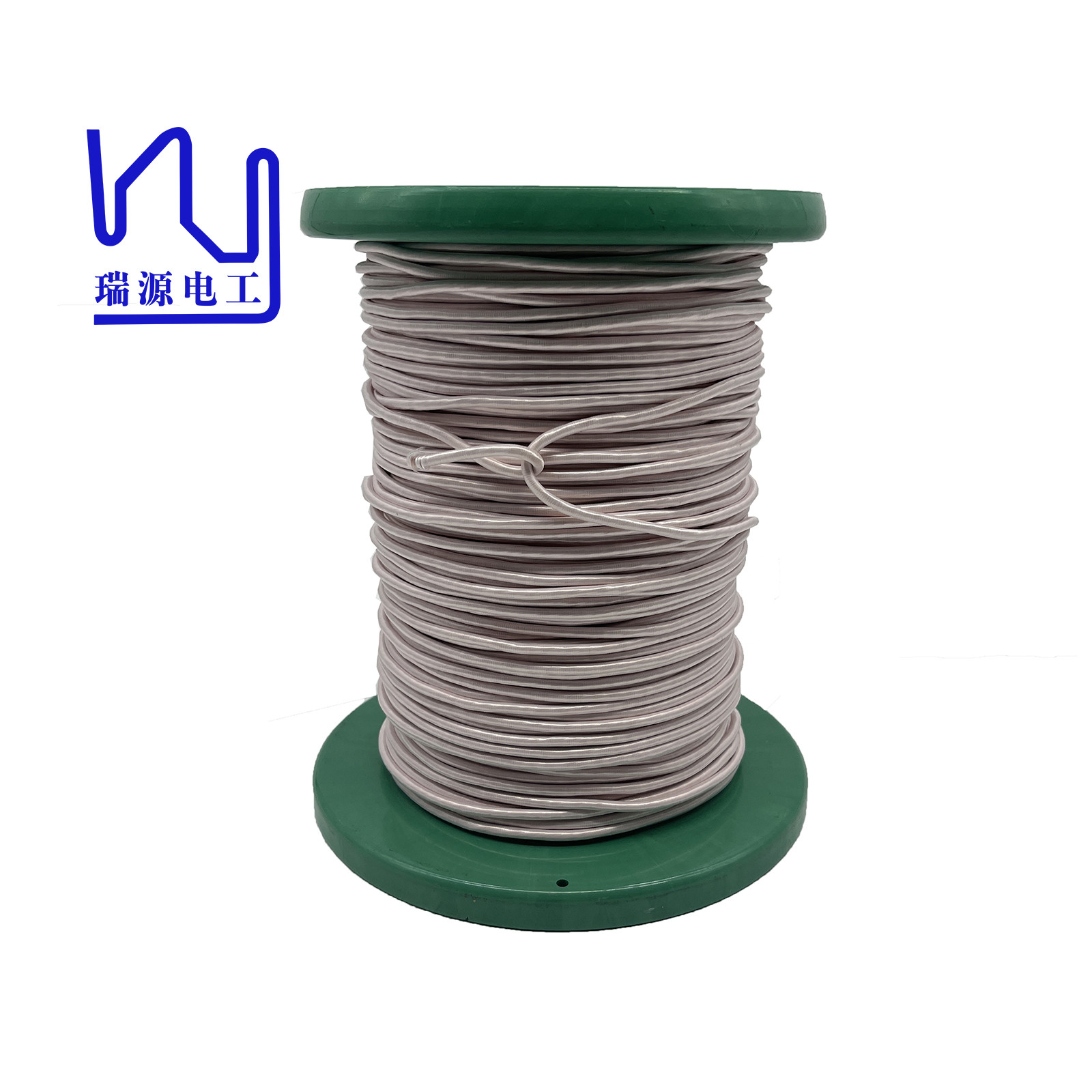

Dacron / Nylon Fiber Served Silk Covered Litz Wire Copper Litz Wire 0   Dacron / Nylon Fiber Served Silk Covered Litz Wire Copper Litz Wire 1

Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). Each thin conductor is less than a skin-depth, so an individual strand does not suffer an appreciable skin effect loss. The strands must be insulated from each other—otherwise all the wires in the bundle would short together, behave like a single large wire, and still have skin effect problems. Furthermore, the strands cannot occupy the same radial position in the bundle over long distances: the electromagnetic effects that cause the skin effect would still disrupt conduction. The weaving or twisting pattern of the wires in the bundle is designed so that the individual strands are on the outside of the bundle for a distance (where the EM field changes are smaller and the strand sees low resistance), and are inside for a distance (where the EM field changes are the strongest and the resistance is higher). If each strand has a comparable impedance, current is distributed equally among every strand within the cable. This allows the interior of the litz wire to contribute to the overall conductivity of the bundle.



FEATURES

  • Outer insulation material: Dacron fiber, Nylon fiber.

  • Diameter of strands: 0,020 - 0,500 mm

  • Overall diameter: 0.1-8mm

  • Max cross section area: 38mm2

APPLICATION

Peaking coil, Antenna coil, Channel coil, IF coil

Ignition coil; High frequency coil



SPECIFICATION

Technical requests
Test Results
Conclusion
Surface
Good
OK
Breakdown Voltage
≥ 1.1 KV
1.5
Enamel Continuity
≤ 155 hole/6m
90
Outer diameter
0.107-0.125
0.110-0.114
Inner diameter
0.10±0.003 mm
0.098-0.10
Conductor Resistance (20℃ Ω/m)
≤ 0.01587
0.01437
Pitch
78mm±2
OK
Direction
————

Solderability
380± 5℃ 30 Sec Smooth
OK
Remark
