| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.020 - 0.50mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Product Name: | Rectangular Litz Wire | Insulation Material:: | ET(Mylar), PEN, PI |
|---|---|---|---|
| Diameter Of Single Wire.: | 0.020-0.50mm | Max Cross Section Area: | 20mm2 |
| Direction Of Turns: | Z Or S | Overall Diameter: | 0.25-6mm |
| High Light: | soft copper wire,self solderable copper wire |
||

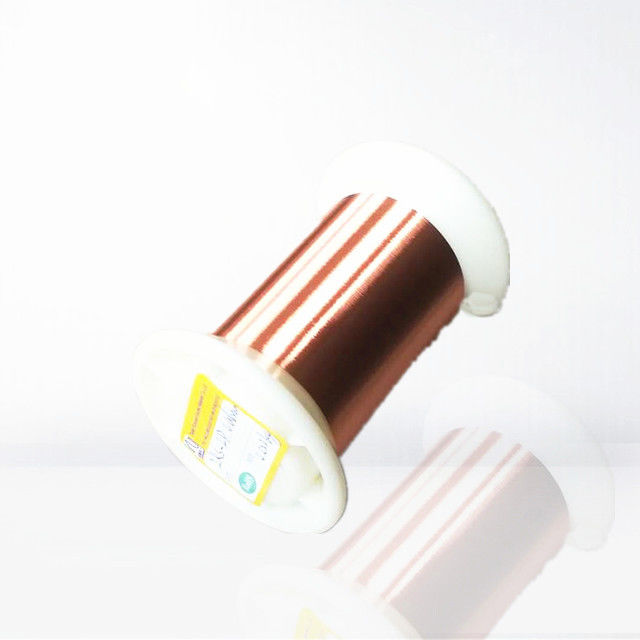

0.020 - 0.50MM COMPACTED LITZ MAGNET WIRE WATERPROOF FOR MOTOR
Litz wire conductors are beneficial for reducing A.C. losses in high frequency windings. The first consideration in any design regarding Litz wire is the operating frequency. The operating frequency not only influences the actual construction details of the copper magnet wire, but is also used to determine the individual strand size of the Litz wire construction. All Litz constructions will exhibit some skin effect due to the limitations of stranding. Higher frequency ranges require more strands of a finer gauge size than Litz wires of equal cross sectional area but composed of fewer and larger strands.The enamels commonly used for insulating individual strands are Polyurethane and Polyurethane with a Nylon topcoat because of the low electrical losses and ease of solderability. Other insulations can also be used. In many cases, Litz is insulated with an overall single or double wrap or serving, of a textile, but are also available unserved.
Exlellent insulation strength.
Good heat resistance and good waterproof performance.
Easy to solder and less residue, solder condition: 380±5℃
Flexibilty can be customs made for different requirement.
High resistance to radiation ( PI tape)
APPLICATION
Transformers requires for high interlayer discharge voltage.
Motor, transformer and meter with requirements for high resistance to temperature and radiation.
|
Equivalent AWG |
Circular Mil Area |
Number of Wires |
AWG of Wire |
Film Coating1 |
Nominal Width |
Nominal Thickness |
Nominal LBS/1000 FT |
Construction |
|
RECOMMENDED OPERATING FREQUENCY - 1 KHZ TO 15 KHZ |
||||||||
|
10 |
9600 |
96 |
30 |
H |
.363 |
.073 |
33 |
24-4-30 |
|
9 |
12000 |
120 |
30 |
H |
.435 |
.073 |
41 |
24-5-30 |
|
8 |
16800 |
168 |
30 |
H |
.508 |
.073 |
58 |
24-7-30 |
|
6 |
24000 |
240 |
30 |
H |
.580 |
.109 |
83 |
24-10-30 |
|
5 |
36000 |
360 |
30 |
H |
.725 |
.109 |
124 |
24-15-30 |
|
5 |
33600 |
336 |
30 |
H |
1.600 |
.073 |
121 |
48-7-30 |
|
4 |
48000 |
480 |
30 |
H |
.870 |
.145 |
173 |
24-20-30 |
|
3 |
64800 |
648 |
30 |
H |
1.090 |
.145 |
227 |
24-27-30 |
|
2 |
76800 |
768 |
30 |
H |
1.160 |
.145 |
279 |
24-32-30 |
|
1/0 |
105600 |
1056 |
30 |
H |
1.450 |
.145 |
373 |
24-44-30 |
|
2/0 |
153600 |
1536 |
30 |
H |
2.320 |
.181 |
526 |
48-32-30 |
|
3/0 |
168000 |
1680 |
30 |
H |
2.610 |
.181 |
569 |
48-35-30 |
|
4/0 |
249600 |
2496 |
30 |
H |
2.900 |
.181 |
824 |
48-52-30 |
|
RECOMMENDED OPERATING FREQUENCY - 15 KHZ TO 50 KHZ |
||||||||
|
22 |
800 |
32 |
36 |
H |
.075 |
.038 |
2.79 |
16-2-36 |
|
18 |
1600 |
64 |
36 |
H |
.113 |
.038 |
5.41 |
16-4-36 |
|
16 |
2400 |
96 |
36 |
H |
.188 |
.038 |
8.50 |
24-4-36 |
|
14 |
4200 |
168 |
36 |
H |
.263 |
.038 |
15.00 |
24-7-36 |
|
12 |
7200 |
288 |
36 |
H |
.450 |
.038 |
26.00 |
48-6-36 |
|
10 |
9600 |
384 |
36 |
H |
.450 |
.076 |
33.00 |
24-16-36 |
|
9 |
13200 |
528 |
36 |
H |
.750 |
.076 |
46.00 |
48-11-36 |
|
8 |
18000 |
720 |
36 |
H |
.750 |
.075 |
63.00 |
48-15-36 |
|
6 |
26400 |
1056 |
36 |
H |
1.050 |
.075 |
96.00 |
48-22-36 |
|
4 |
40200 |
1608 |
36 |
H |
.900 |
.113 |
143.00 |
24-67-36 |
|
2 |
72000 |
2880 |
36 |
H |
1.500 |
.113 |
265.00 |
48-60-36 |
|
1/0 |
100800 |
4032 |
36 |
H |
1.950 |
.150 |
376.00 |
48-84-36 |
