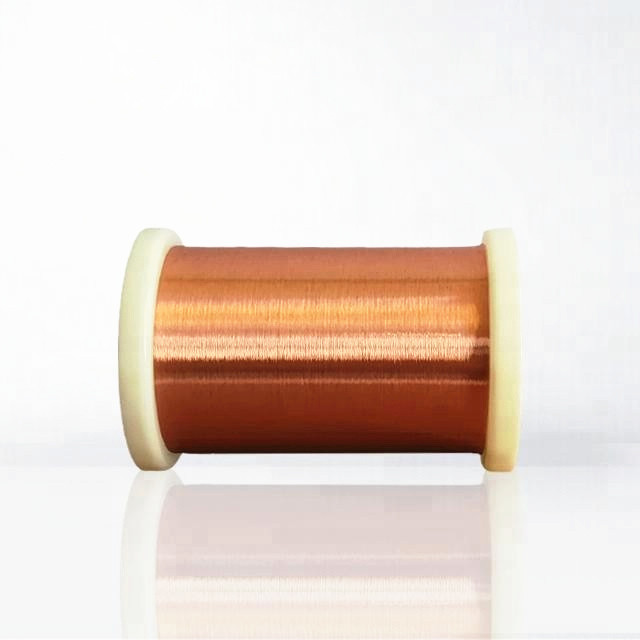

2UEW 155 0.02mm Enamelled Copper Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: 0.02mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Color: Normal Conductor Type: Solid
Insulation: Polyamide-Imide Diameter: 0.02mm
Thermal Class: 155 Conductor Material: Copper
Highlight:

soft copper wire

,

enameled copper magnet wire


Product Description



2UEW 155 0.02mm Enamelled Copper Wire





  • With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.

  • Superior ''Q'' characteristic at high frequencies.

  • Excellent film adhension and flexibility.

  • Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.

  • 2UEW 155 0.02mm Enamelled Copper Wire 0

SPECIFICATION

Characteristics

Technical requests


Test Results Conclusion

Sample 1 Sample 2 Sample 3
Surface Good OK OK OK OK
Bare Wire Diameter 0.020±0.001 0.02 0.02 0.02 OK
Overall Diameter 0.022-0.024 0.023 0.023 0.023 OK
Conductor Resistance ≤60.810Ω/m 56.812 56.403 56.514 OK
Elongation ≥8% 10% 10% 11% OK
Breakdown Voltage ≥130V 212 247 262 OK
Pinhole Test ≤ 8 holes/5m 1 0 1 OK
Test Items Technical Requests Results







Conclusion











              Approved







Adhesive Coating layer is good OK
Cut-through 200℃ 2mins no breakdown OK
Heat Shock 180±5℃/30min no crack OK
Solder Ability 390± 5℃ 2 Sec Smooth OK
Solvent Resistance No blister, no expansion, no shed OK
