0.011mm 2UEW155 Enamel Coated Copper Wire For Motor Winding

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	ISO9001/ISO14001/UL/SGS
Model Number:	UEW

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Product Name:	Enameled Copper Wire	Certification:	ISO9001/ISO14001/UL/SGS
Standard:	GB/T5013.3/IEC60245-3:1994	Insulation:	Polyesterimide
Thermal Class:	155	Diameter:	0.011mm
Material:	Copper
Highlight:	soft copper wire , self solderable copper wire

Product Description

0.011mm 2UEW155 Enamel Coated Copper Wire For Motor Winding

We specialize in the production of various enameled wires, and ultra-fine wires are our superior products. The thinnest thread we have produced has reached 0.011mm and has been mass-produced. We have capsule packaging, ranging from 50g to 100g. We also accept customization. Our goal is to provide you with quality products and services.

Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.011±0.001	0.011	0.011
Coating Thickness	≥ 0.002 mm	0.024	0.024
Overall Diameter	≤ 0.0135mm	0.0134	0.0134
Conductor Resistance(Ω/m at 20℃)	154150-157.6	154.01	154.98
Elongation	≥ 3 %	10	10
Breakdown Voltage	≥ 250 V	483
Continuity(50V/30m)	Max.60	0
Adhesive	Coating layer is good	OK
Cut-through	170℃ 2 times no breakdown	OK
Solder Ability	375± 5℃ 2Sec Smooth	OK

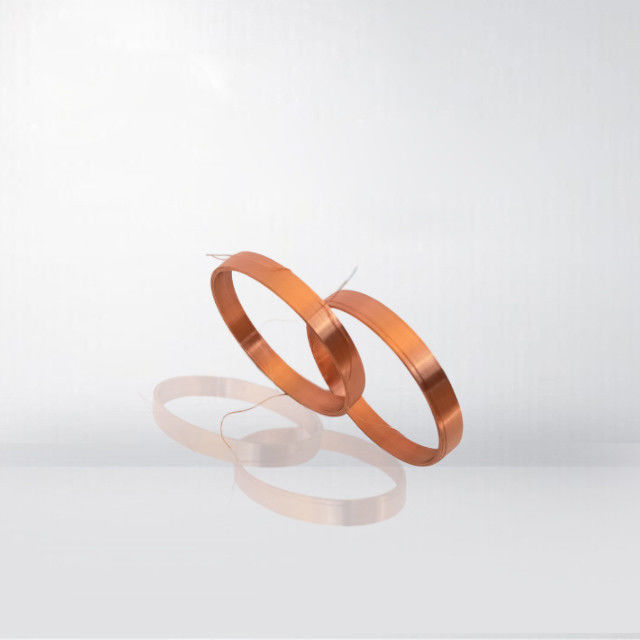

0.011mm 2UEW155 Enamel Coated Copper Wire For Motor Winding 0
