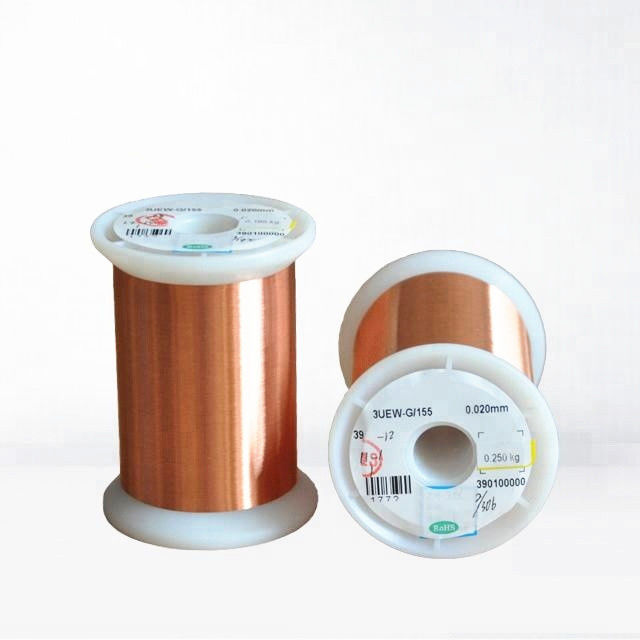

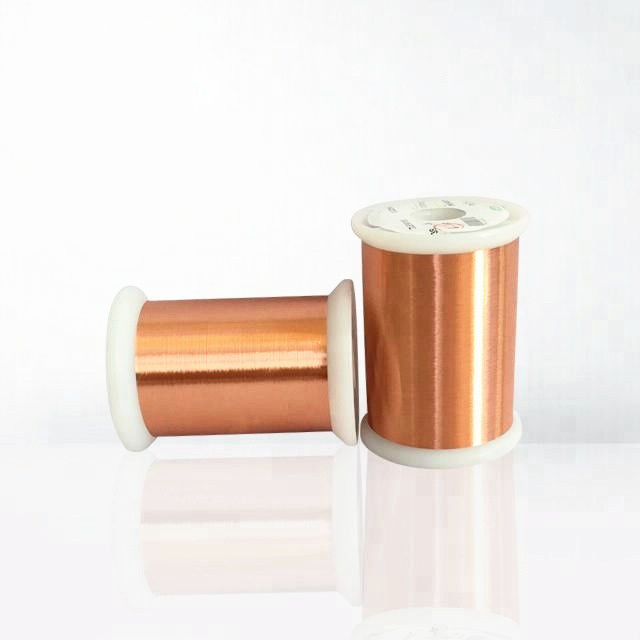

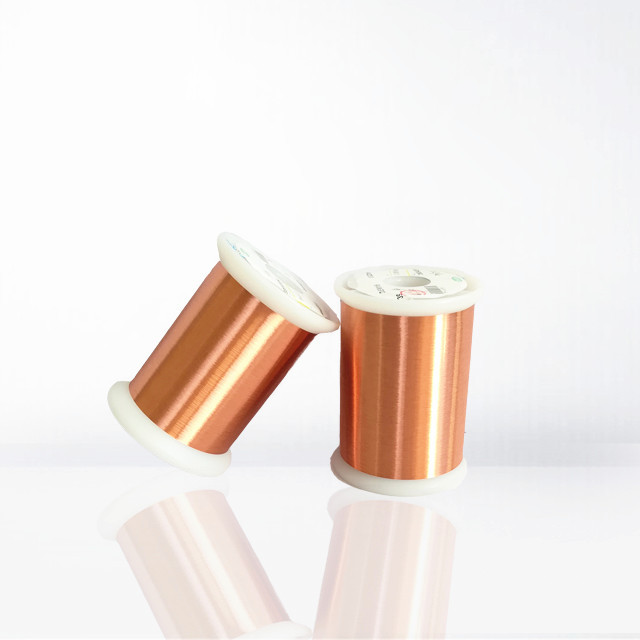

Ultra Fine Copper Magnet Wire 0.012 - 0.8mm Round Enameled Wire For Winding

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.012 - 0.8mm
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Size Range: 0.012-0.8mm Material: Round Copper
Insulation: PEW UEW EIW AIW Color: Red Blue Green
High Light:

fine round enameled wire

,

fine round enamel coated copper wire

,

fine enamel coated copper wire


Product Description

ULTRA FINE COPPER MAGNET WIRE 0.012-0.8MM ROUND ENAMELED WIRE FOR WINDING

Enamelled copper wire, also called "Magnet Wire," is widely used in various Electrical Applications due to its superior Electrical, Thermal and Mechanical Properties.Enameled Copper Wire are insulated by coating it with enamel of different temperature class. Enamelled Copper Wire are primarily used in three types of applications - in transformers to transform one kind of electrical energy into other kinds.  Copper Enameled Winding Wire are used in motors to transform electrical energy into mechanical energy. Enamelled Copper Winding Wire are also used in generators to transform mechanical energy into electrical energy.

FEATURES AND BENEFITS

  • Good performace at softening breakdown

  • Suitable for high-speed automated routing

  • Able to be direct weld, with no pinhole

  • Resistive to high frequency, wearing, refrigerants and electronics corona

  • High breakdown voltage, small dielectric loss angle

APPLICATIONS

  • High-frequency transform

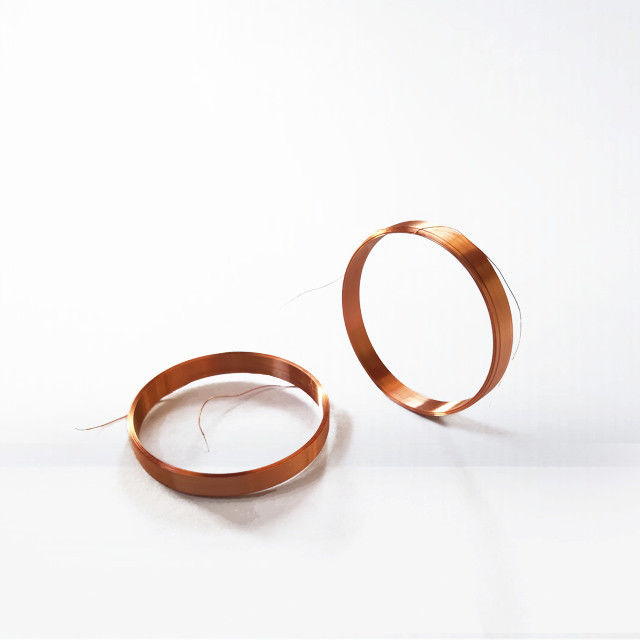

  • Inductance/solenoid coil

  • Electrical winding machine, include household motors/all kinds of micro motors/compressor.

  • Electric induction coil/miniature electric machine

  • Electric appliance working under high temperature/severe cold/radiated/over-loaded environment.

Ultra Fine Copper Magnet Wire 0.012 - 0.8mm Round Enameled Wire For Winding 0

SPECIFICATION



Mtl

Dsg

Coat Type

ANSI

Type

Temp

Class

BC

OC

Magnet Wire.

E1W

Polyester-imide

MW30

180

UEW-155

Poly-urethane

MW79

155

EIW-A

Polyester-imide

Polyamide-imide

MW35

200

UEW-80

Poly-urethane

Nylon

MW80

155

EIAW-73

Polyester-imide

Polyamide-imide

MW73

200

EIW-200

Polyester-imide

Polyamide-imide

MW35,

200







MW73



EIW-200

Polyester-imide

MW74

200

EIW-180

Polyester-imide

MW30

180〔#〕

UEW-180

Polyurethane

MW82

180

**EI/SB(a) or **PEI/AB/SB(a)

Polyester-imide

Polyamide-

MW102

180





imide +









Self-bonding coat





Mtl

Dsg

Coat Type

ANSI

Type (+)

TI

BC

OC

Magnet wire coatings.

UEW-79

Poly-urethane

MW79

155

PEWY200

Polyester

Nylon



200









MW24

155







MW76

180〔#〕

EIW-220

Polyester

Polyamide-imide



220







MW35, MW73

200〔#〕

UEW155F

Poly-urethane

MW79

155
