Name: Polyurethane 0.06mm Magnet Wire Copper Enameled Winding Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: UEW
Price: 24.06 USD
Availability: InStock

Detail Information

Name:	Polyurethane 0.06mm Magnet Wire Copper Enameled Winding Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.06m	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Polyurethane
Rated Temperature:	155/180	Key Word:	Enameled Copper Wire
Highlight:	polyurethane magnet wire copper , 0.06mm enameled winding wire , magnet wire with polyurethane coating

Product Description

Polyurethane 0.06mm Magnet Wire Copper Enameled Winding Wire

High-quality polyurethane enameled copper winding wire with 0.06mm diameter, designed for precision electrical applications requiring ultra-fine wire specifications.

Precautions for Use

Winding Process: Requires a dedicated miniature winding machine; precise tension control is essential to avoid wire breakage.
Soldering Temperature: Temperature and time must be controlled during direct soldering to prevent overheating damage.
Insulation Reliability: The enamel layer of ultra-fine wire is thin; attention must be paid to interlayer insulation during multi-layer winding.

Technical Specifications & Test Results

NO.	Characteristics	Technical Requirements	Sample 1	Sample 2	Sample 3	Conclusion
1	Surface	Good	OK	OK	OK	OK
2	Bare Wire Diameter	0.060±0.002 mm	0.0600	0.0600	0.0600	OK
3	Insulation Thickness	≥ 0.008 mm	0.0100	0.0120	0.0110	OK
4	Overall Diameter	≤ 0.074 mm	0.0700	0.0720	0.0710	OK
5	Electrical Resistance	≤ 6.415 Ω/m	6.009	6.081	6.013	OK
6	Elongation	≥ 14 %	21.7	22.6	21.9	OK
7	Breakdown Voltage	≥ 500 V	1769	1961	1886	OK
8	Pinbole Test	≤ 5 hole/5m	0	0	0	OK
9	Enamel Continuity	≤ 15 hole/30m	0	0	0	OK

Additional Test Results

Test Items	Technical Requirements	Results	Conclusion
Adhesive	No crack	OK	Approval
Cut-through	200℃ 2mins no crack	OK	OK
Heat Shock	175±5℃/30min no crack	OK	OK
Solder Ability	390±5℃ 2Sec Smooth	OK	OK

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEW

Minimum Order Quantity:	10kg
Price:	Negotiation

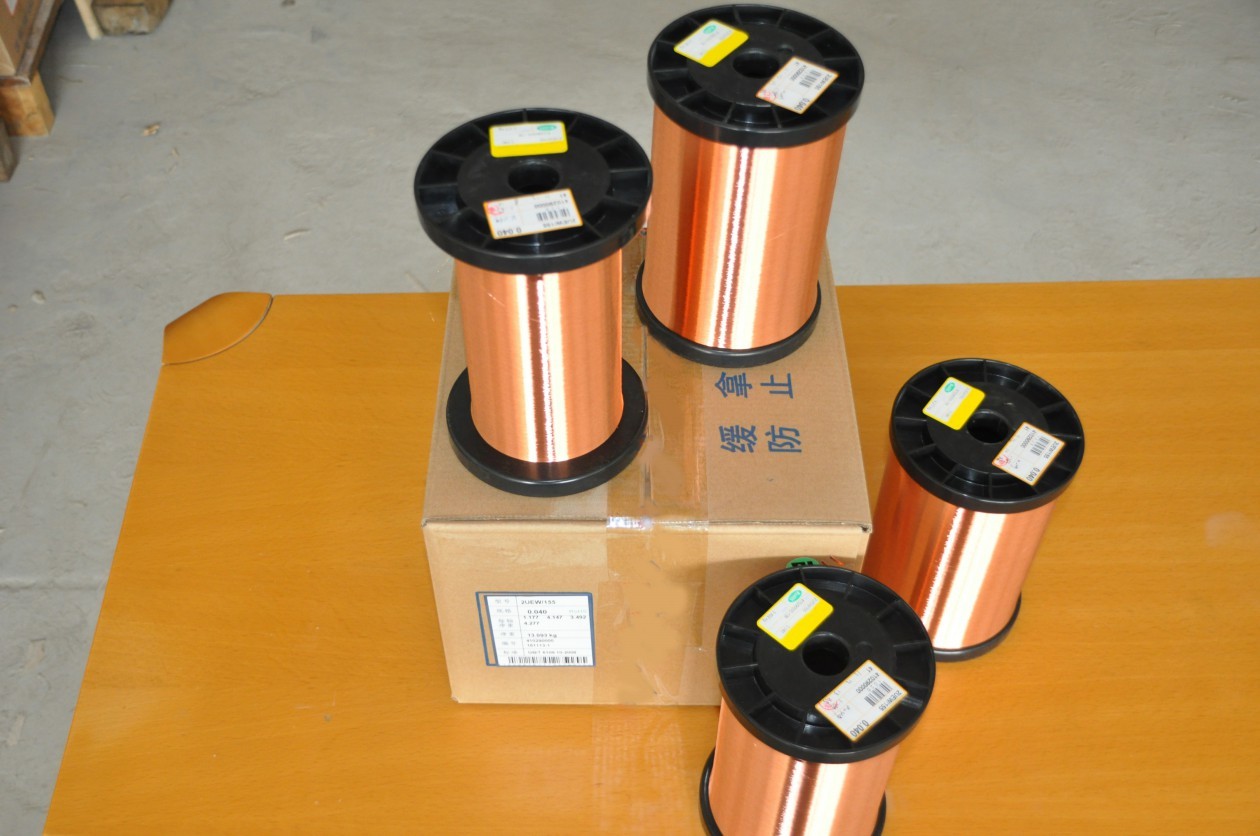

Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
