| Size: | 0.080mm | Color: | Nature Or Customrized |
|---|---|---|---|
| Material: | Round Copper | Name: | 0.080mm Super Thin Wire |
| Stock: | Available | ||
| High Light: | solderable magnet wire,self bonding magnet wire |
||

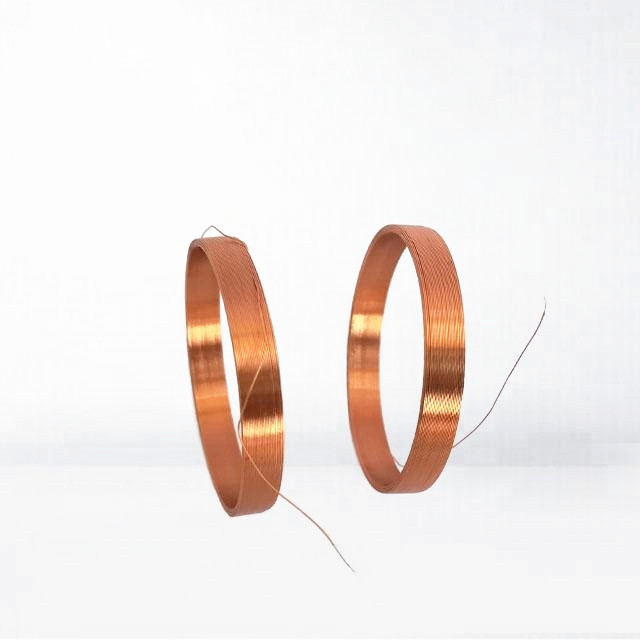

0.080MM SUPER THIN ENAMELED ROUND COPPER WIRE COPPER MAGNET WIRE FOR WINDING
Enameled magnet wire is a fundamental part of a winding in every electrical machine or apparatus. Compared to fibrous insulations, enamelled copper offers a favourable space saving factor together with a high level of breakdown voltage. The main application of Enamelled Copper Wire is in winding of Motor and Transformers.Enameled Copper Wire is a wire coated with a thin layer of enamel (varnish) insulation to prevent the wire surfaces from being in a short circuit when wound into coils. Magnetic flux is created when current flows through the coil.Copper Enamelled Winding Wire are used mainly in the construction of motors, electromagnets, transformers and inductors. For ease of manufacturing inductive components like transformers and inductors, most of these wires can be soldered.
FEATURES AND BENEFITS
Uniformity and degree of insulation
Good electrical characteristics such as dielectric strength and insulation resistance
Resistant coating to mechanical stress induced by bending, stretching, and friction
Heat-resistance (e) Resistant to solvents, chemicals and varnishes
Applications:
Transformer for measuring instrument
For communication : High frequency coil for transformer, Coil for power source transformer
For power generation : Coil for electromagnetic switches, solenoid coil, Coil for lighting fixtures
Coil-motor with heat resistant & etc.
SPECIFICATION
|
Nominal Diameter mm |
Tolerance |
Min. Increase of Diameter |
Max. Overall Diameter |
Breakdown Voltage |
|
Elongation |
Pin Hole |
Electrical Resistance |
|
|
|
mm |
|
|
≥ V |
|
≥% |
≤Default/5m |
Ω/km (20℃) |
|
|
|
|
|
|
Mandrel Method |
Twisted Method |
|
|
Min. |
Max. |
|
0.012 |
---- |
0.013 |
0.015 |
50.000 |
---- |
5.00 |
10.00 |
142.64 |
157.65 |
|
0.013 |
---- |
0.015 |
0.017 |
70.000 |
---- |
5.00 |
10.00 |
118.41 |
133.98 |
|
0.014 |
---- |
0.016 |
0.018 |
70.000 |
---- |
5.00 |
10.00 |
102.64 |
120.45 |
|
0.015 |
---- |
0.017 |
0.020 |
80.000 |
---- |
5.00 |
10.00 |
89.83 |
104.41 |
|
0.016 |
---- |
0.018 |
0.021 |
90.000 |
---- |
5.00 |
8.00 |
74.67 |
97.56 |
|
0.017 |
---- |
0.019 |
0.022 |
90.000 |
---- |
5.00 |
8.00 |
66.60 |
85.75 |
|
0.018 |
---- |
0.020 |
0.023 |
100.000 |
---- |
5.00 |
8.00 |
59.77 |
75.95 |
|
0.019 |
---- |
0.021 |
0.024 |
100.000 |
---- |
5.00 |
8.00 |
53.95 |
67.75 |
|
0.020 |
0.001 |
0.022 |
0.024 |
100.000 |
---- |
8.00 |
8.00 |
51.83 |
60.81 |
|
0.050 |
±0.002 |
0.007 |
0.062 |
400.000 |
1200.00 |
12.00 |
5.00 |
7981.00 |
9528.00 |
|
0.055 |
±0.002 |
0.007 |
0.068 |
400.000 |
1200.00 |
12.00 |
5.00 |
6642.00 |
7815.00 |
|
0.060 |
±0.002 |
0.007 |
0.073 |
500.000 |
1200.00 |
14.00 |
5.00 |
5614.00 |
6526.00 |
|
0.065 |
±0.002 |
0.007 |
0.078 |
500.000 |
1200.00 |
14.00 |
5.00 |
4807.00 |
5531.00 |
|
0.070 |
±0.002 |
0.007 |
0.083 |
500.000 |
1200.00 |
15.00 |
5.00 |
4163.00 |
4747.00 |
|
0.075 |
±0.002 |
0.007 |
0.088 |
550.000 |
1200.00 |
15.00 |
5.00 |
3640.00 |
4119.00 |
|
0.080 |
±0.002 |
0.008 |
0.094 |
550.000 |
1200.00 |
16.00 |
5.00 |
3209.00 |
3608.00 |
|
0.085 |
±0.002 |
0.008 |
0.099 |
550.000 |
1200.00 |
16.00 |
5.00 |
2851.00 |
3187.00 |
|
0.090 |
±0.002 |
0.010 |
0.106 |
650.000 |
1200.00 |
16.00 |
5.00 |
2550.00 |
2835.00 |
|
0.095 |
±0.002 |
0.010 |
0.111 |
650.000 |
1200.00 |
17.00 |
5.00 |
2294.00 |
2538.00 |
|
0.100 |
±0.002 |
0.011 |
0.118 |
650.000 |
1200.00 |
17.00 |
5.00 |
2074.00 |
2286.00 |
|
0.110 |
±0.002 |
0.011 |
0.129 |
---- |
1300.00 |
17.00 |
5.00 |
1720.00 |
1882.00 |
|
0.120 |
±0.002 |
0.011 |
0.139 |
---- |
1500.00 |
17.00 |
5.00 |
1450.00 |
1577.00 |
|
0.130 |
±0.002 |
0.011 |
0.149 |
---- |
1500.00 |
18.00 |
5.00 |
1239.00 |
1340.00 |
|
0.140 |
±0.002 |
0.011 |
0.159 |
---- |
1600.00 |
19.00 |
5.00 |
1070.00 |
1153.00 |
|
0.150 |
±0.002 |
0.011 |
0.169 |
---- |
1700.00 |
20.00 |
5.00 |
934.10 |
1002.00 |
|
0.160 |
±0.002 |
0.012 |
0.180 |
---- |
1700.00 |
21.00 |
5.00 |
822.30 |
879.40 |
|
0.170 |
±0.003 |
0.013 |
0.192 |
---- |
2000.00 |
22.00 |
5.00 |
721.10 |
787.10 |
|
0.180 |
±0.003 |
0.014 |
0.204 |
---- |
2000.00 |
22.00 |
5.00 |
644.40 |
700.70 |
|
0.190 |
±0.003 |
0.014 |
0.214 |
---- |
2000.00 |
23.00 |
5.00 |
579.40 |
627.80 |
|
0.200 |
±0.003 |
0.014 |
0.224 |
---- |
2000.00 |
23.00 |
5.00 |
523.70 |
565.70 |
|
0.210 |
±0.003 |
0.014 |
0.234 |
---- |
2000.00 |
23.00 |
5.00 |
475.70 |
512.30 |
|
0.220 |
±0.003 |
0.014 |
0.245 |
---- |
2200.00 |
23.00 |
5.00 |
434.00 |
466.20 |
|
0.230 |
±0.003 |
0.016 |
0.257 |
---- |
2200.00 |
24.00 |
5.00 |
397.50 |
426.00 |
|
0.240 |
±0.003 |
0.016 |
0.267 |
---- |
2200.00 |
24.00 |
5.00 |
365.50 |
390.80 |
|
0.250 |
±0.003 |
0.016 |
0.277 |
---- |
2300.00 |
24.00 |
5.00 |
337.10 |
359.80 |
|
0.260 |
±0.004 |
0.018 |
0.287 |
---- |
2300.00 |
25.00 |
5.00 |
309.60 |
335.00 |
|
0.270 |
±0.004 |
0.018 |
0.297 |
---- |
2300.00 |
25.00 |
5.00 |
287.40 |
310.30 |
|
0.280 |
±0.004 |
0.022 |
0.313 |
---- |
2300.00 |
25.00 |
5.00 |
267.60 |
288.20 |
|
0.290 |
±0.004 |
0.022 |
0.323 |
---- |
2500.00 |
25.00 |
5.00 |
249.70 |
268.40 |
|
0.300 |
±0.004 |
0.022 |
0.334 |
---- |
2500.00 |
25.00 |
5.00 |
233.50 |
250.60 |
|
0.310 |
±0.004 |
0.022 |
0.344 |
---- |
2500.00 |
25.00 |
5.00 |
218.90 |
234.40 |
|
0.315 |
±0.004 |
0.022 |
0.349 |
---- |
2500.00 |
25.00 |
5.00 |
212.10 |
227.00 |
|
0.320 |
±0.004 |
0.023 |
0.355 |
---- |
2700.00 |
25.00 |
5.00 |
205.60 |
219.80 |
|
0.330 |
±0.004 |
0.023 |
0.365 |
---- |
2700.00 |
25.00 |
5.00 |
193.50 |
206.60 |
|
0.350 |
±0.004 |
0.023 |
0.385 |
---- |
2700.00 |
26.00 |
5.00 |
172.20 |
183.40 |
|
0.355 |
±0.004 |
0.023 |
0.390 |
---- |
2700.00 |
26.00 |
5.00 |
167.40 |
178.20 |
|
0.370 |
±0.004 |
0.024 |
0.406 |
---- |
2900.00 |
26.00 |
5.00 |
154.30 |
163.90 |
|
0.380 |
±0.004 |
0.024 |
0.416 |
---- |
2900.00 |
26.00 |
5.00 |
146.40 |
155.30 |
|
0.400 |
±0.004 |
0.025 |
0.437 |
---- |
2900.00 |
27.00 |
5.00 |
132.20 |
140.00 |
|
0.410 |
±0.004 |
0.025 |
0.447 |
---- |
2900.00 |
27.00 |
5.00 |
125.90 |
133.20 |
|
0.440 |
±0.004 |
0.025 |
0.477 |
---- |
2900.00 |
27.00 |
5.00 |
109.50 |
115.50 |
|
0.450 |
±0.004 |
0.025 |
0.487 |
---- |
2900.00 |
27.00 |
5.00 |
104.70 |
110.40 |
|
0.470 |
±0.004 |
0.026 |
0.508 |
---- |
3100.00 |
27.00 |
5.00 |
96.05 |
101.10 |
|
0.500 |
±0.004 |
0.026 |
0.539 |
---- |
3100.00 |
27.00 |
5.00 |
84.96 |
89.23 |
|
0.550 |
±0.004 |
0.027 |
0.590 |
---- |
3300.00 |
28.00 |
5.00 |
70.31 |
73.64 |
|
0.600 |
±0.005 |
0.027 |
0.640 |
---- |
3500.00 |
28.00 |
5.00 |
58.96 |
62.01 |
|
0.650 |
±0.005 |
0.027 |
0.690 |
---- |
3500.00 |
28.00 |
5.00 |
50.30 |
52.77 |
|
0.700 |
±0.005 |
0.029 |
0.742 |
---- |
3500.00 |
28.00 |
5.00 |
43.42 |
45.45 |
|
0.750 |
±0.005 |
0.030 |
0.794 |
---- |
3800.00 |
28.00 |
5.00 |
37.86 |
39.55 |
|
0.800 |
±0.005 |
0.032 |
0.846 |
---- |
3800.00 |
28.00 |
5.00 |
33.30 |
34.73 |
