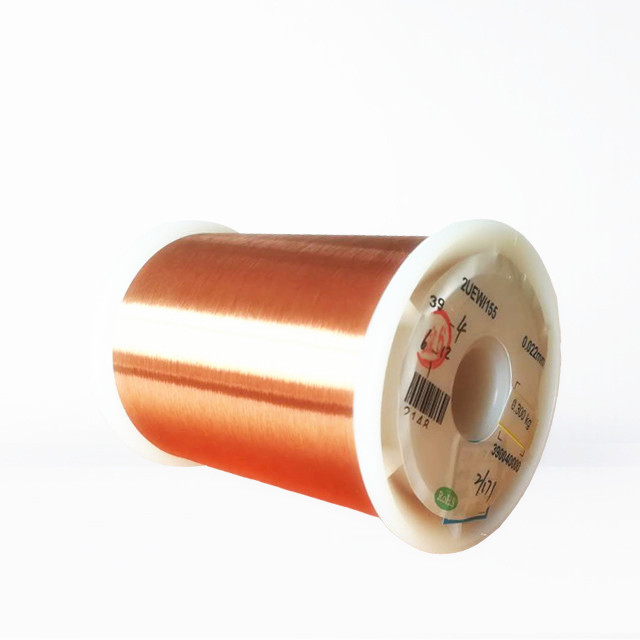

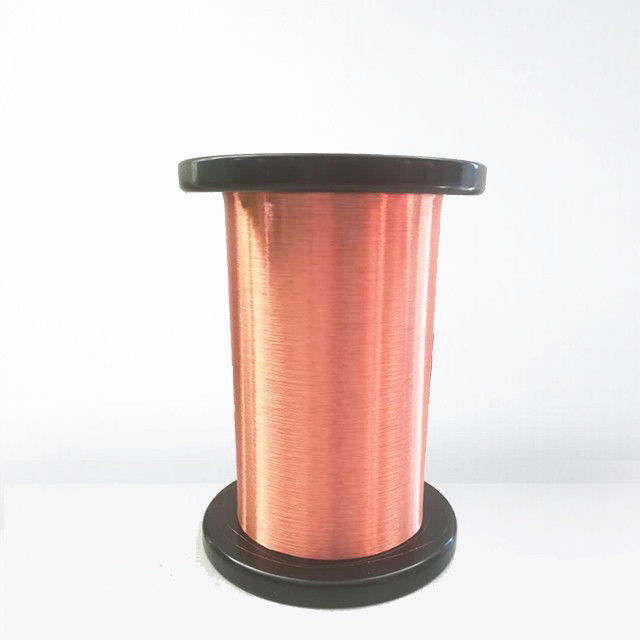

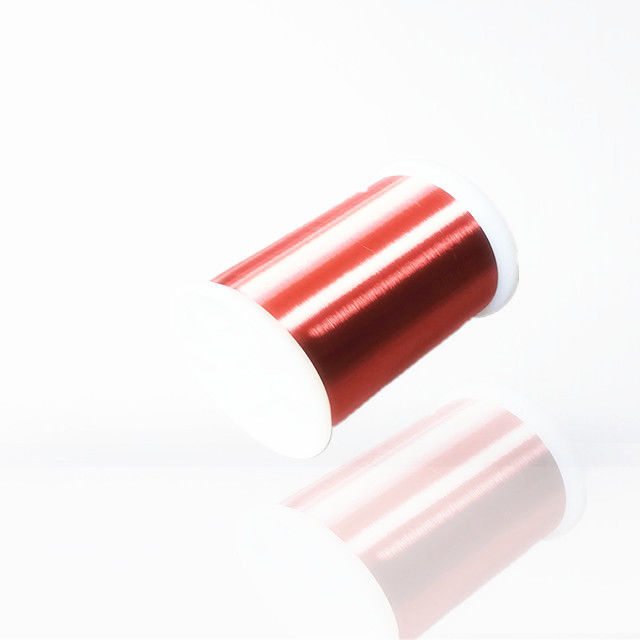

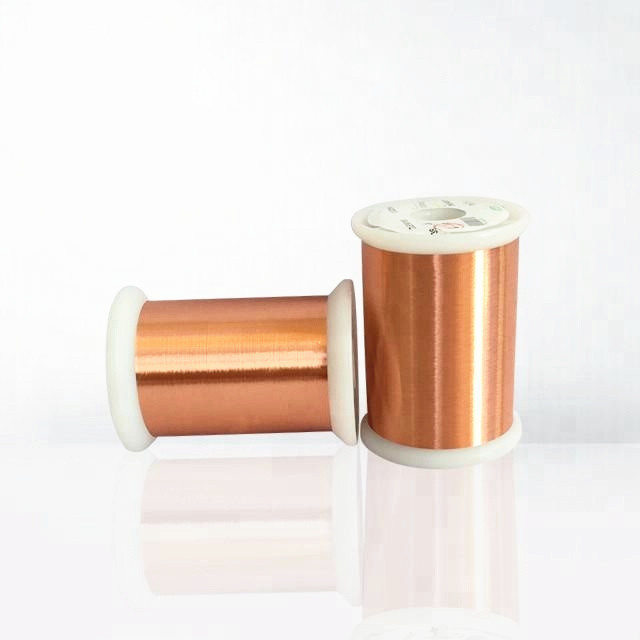

Copper Magnet Wire Corona Resistant 0.012 - 0.8mm Enameled Wire For Winding

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.012 - 0.8mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Insulatoin: Round Copper Wire Color: Red/blue/green
Stock: Available Thermal Class: 155/180
Size Range: 0.012-0.8mm Enamel: Polyurethane
Highlight:

solderable magnet wire

,

self bonding magnet wire


Product Description

Copper Magnet Wire Corona Resistant 0.012 - 0.8mm Enameled Wire For Winding

Magnet copper wire is an insulated copper electrical conductor used in motors, transformers and other electromagnetic equipment. When wound into a coil and energized, magnet wire creates an electromagnetic field.Magnet wire plays a critical role in three areas of energy transformation: electrical to electrical, electrical to mechanical, and mechanical to electrical.Besides its uses in energy transformation, magnet wire is vital to a wide range of communications applications. Magnet wire is used in coils in products such as computers, telephones, cell phones, video games and televisions.



FEATURES AND BENEFITS

  • Excellent bending property

  • High flexibility of the enamel

  • Good resistance to abrasion

  • High mechanical property

  • Higher thermal property

TEST STANDARD OF HEAT SHOCK

Nominal conductor diameter

Pre-stretching %

Diameter of mandrel (mm)

Nominal conductor diameter

Pre-stretching %

Diameter of mandrel(mm)

d(mm)

d(mm)

d≤0.050

20①

0.15

0.250<d≤0.280

0

0.63

0.050<d≤0.063

15①

0.15

0.280<d≤0.315

0

0.71

0.063<d≤0.080

10

0.15

0.315<d≤0.355

0

0.8

0.080<d≤0.112

5

0.15

0.355<d≤0.400

0

0.9

0.112<d≤0.140

0

0.15

0.400<d≤0.450

0

1

0.140<d≤0.160

0

0.25

0.450<d≤0.500

0

1.12

0.160<d≤0.180

0

0.28

0.500<d≤0.560

0

1.25

0.180<d≤0.200

0

0.315

0.560<d≤0.630

0

1.4

0.200<d≤0.224

0

0.355

0.630<d≤0.710

0

1.6

0.224<d≤0.250

0

0.4

0.710<d≤0.800

0

1.8
