| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.012 - 0.8mm |
| Minimum Order Quantity: | 20 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Insulatoin: | Round Copper Wire | Color: | Red/blue/green |
|---|---|---|---|
| Stock: | Available | Thermal Class: | 155-220 |
| Size Range: | 0.012-0.8mm | ||
| High Light: | solderable magnet wire,self bonding magnet wire |
||

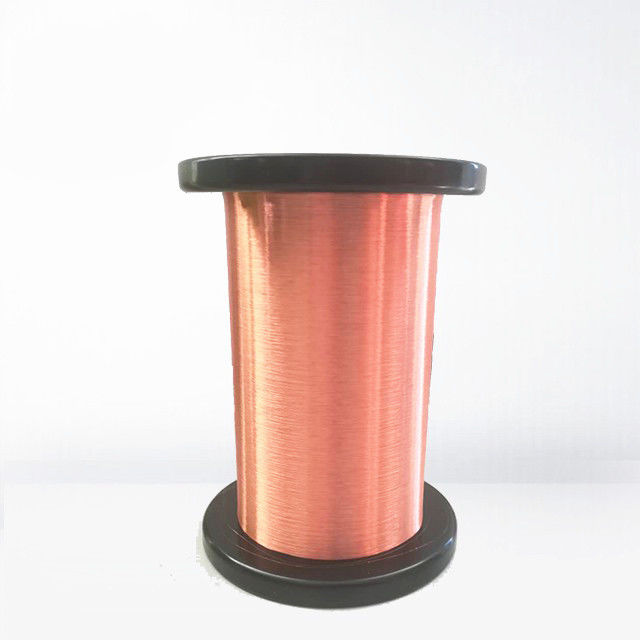

CLASS 220 COPPER MAGNET WIRE CORONA RESISTANT 0.012-0.8MM ENAMELED WIRE FOR WINDING
Magnet copper wire is an insulated copper electrical conductor used in motors, transformers and other electromagnetic equipment. When wound into a coil and energized, magnet wire creates an electromagnetic field.Magnet wire plays a critical role in three areas of energy transformation: electrical to electrical, electrical to mechanical, and mechanical to electrical.Besides its uses in energy transformation, magnet wire is vital to a wide range of communications applications. Magnet wire is used in coils in products such as computers, telephones, cell phones, video games and televisions.
FEATURES AND BENEFITS
Excellent bending property
High flexibility of the enamel
Good resistance to abrasion
High mechanical property
Higher thermal property
120 degree flat enameled wire for oil-immersed transformer
130,155,180 degree flate enameled wire are widely used in all kinds of magnet coil
200 degree flat enameled wire works constantly in high temperature
240 degree flat enameled wire for magnet coils of aviation,military and marine appication
TEST STANDARD OF HEAT SHOCK
|
Nominal conductor diameter |
Pre-stretching % |
Diameter of mandrel (mm) |
Nominal conductor diameter |
Pre-stretching % |
Diameter of mandrel(mm) |
|
d(mm) |
d(mm) |
||||
|
d≤0.050 |
20① |
0.15 |
0.250＜d≤0.280 |
0 |
0.63 |
|
0.050＜d≤0.063 |
15① |
0.15 |
0.280＜d≤0.315 |
0 |
0.71 |
|
0.063＜d≤0.080 |
10 |
0.15 |
0.315＜d≤0.355 |
0 |
0.8 |
|
0.080＜d≤0.112 |
5 |
0.15 |
0.355＜d≤0.400 |
0 |
0.9 |
|
0.112＜d≤0.140 |
0 |
0.15 |
0.400＜d≤0.450 |
0 |
1 |
|
0.140＜d≤0.160 |
0 |
0.25 |
0.450＜d≤0.500 |
0 |
1.12 |
|
0.160＜d≤0.180 |
0 |
0.28 |
0.500＜d≤0.560 |
0 |
1.25 |
|
0.180＜d≤0.200 |
0 |
0.315 |
0.560＜d≤0.630 |
0 |
1.4 |
|
0.200＜d≤0.224 |
0 |
0.355 |
0.630＜d≤0.710 |
0 |
1.6 |
|
0.224＜d≤0.250 |
0 |
0.4 |
0.710＜d≤0.800 |
0 |
1.8 |
