0.012 - 0.8mm 2UEW / 3UEW 155 / 180 Super Fine Enameled Copper Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Class 155 / 180
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Thermal Rating: 150/180 Name: Superfine Copper Wire
Insulation: UEW/Polyesterimide Diameter: 0.08mm
Size Range: 0.012-0.8mm
High Light:

soft copper wire

,

self solderable copper wire


Product Description

0.012 - 0.8mm 2UEW / 3UEW 155 / 180 Super Fine Enameled Copper Wire



Enameled Copper Magnet Wire typically uses one to three layers of polymer film insulation, often of two different compositions, to provide a tough, continuous insulating layer. Magnet wire insulating films use (in order of increasing temperature range) polyvinyl formal or Formvar (PVF), polyurethane, polyamide (PUW), polyester (PEW), polyester-polyimide (EIW), polyamide-polyimide (or amide-imide) (AI-EIW), and polyimide (AIW). Polyimide insulated magnet wire is capable of operation at up to 250°C. The insulation of thicker square  copper magnet wire is often augmented by wrapping it with a high-temperature polyimide or fiberglass tape, and completed windings are often vacuum impregnated with an insulating varnish to improve insulation strength and long-term reliability of the winding.

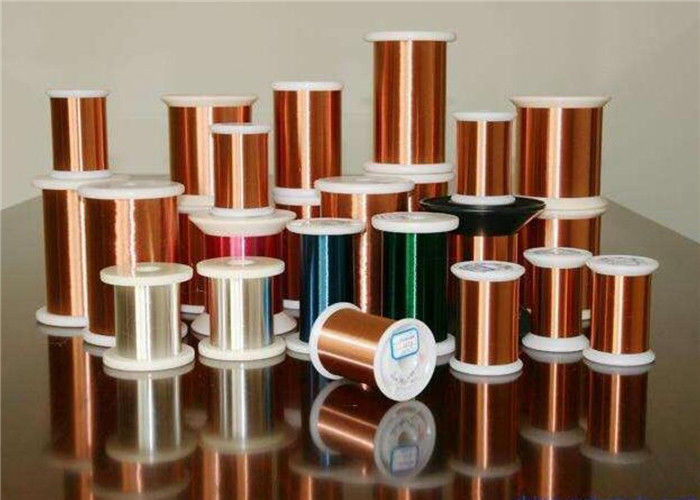

0.012 - 0.8mm 2UEW / 3UEW 155 / 180  Super Fine Enameled Copper Wire 0



SPECIFICATION

Nominal Diameter mm Max. Overall Diameter Breakdown Voltage≥ V Electrical ResistanceΩ/m (20℃)
    Mandrel Method Twisted Method Min. Max.

0.012

0.015

50

----

142.64

157.65

0.015

0.02

80

----

89.83

104.41

0.018

0.023

100

----

59.77

75.95

0.02

0.024

100

----

51.83

60.81

0.05

0.062

400

1200

7981

9528

0.06

0.073

500

1200

5614

6526

0.07

0.083

500

1200

4163

4747

0.08

0.094

550

1200

3209

3608

0.09

0.106

650

1200

2550

2835

0.1

0.118

650

1200

2074

2286

0.2

0.224

----

2000

523.7

565.7

0.3

0.334

----

2500

233.5

250.6

0.4

0.437

----

2900

132.2

140

0.5

0.539

----

3100

84.96

89.23

0.6

0.64

----

3500

58.96

62.01

0.7

0.742

----

3500

43.42

45.45

0.8

0.846

----

3800

33.3

34.73
