0.012 - 0.8mm Polyurethane Solderable Enameled Copper Wire Multiple Size Magnet Wire For Relay

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.012 - 0.8mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation

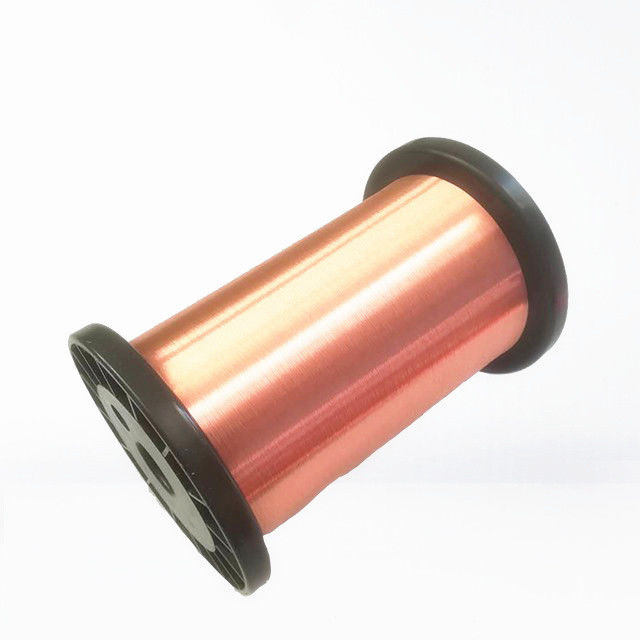

Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Product Name: 0.012-0.8mm Temperature: 130-220
Color: Natural Or According To Customers Insulatoin: SUEW
AWG: 26-56
High Light:

soft copper wire

,

enameled copper magnet wire


Product Description

0.012 - 0.8MM POLYURETHANE SOLDERABLE ENAMELED COPPER WIRE MULTIPLE SIZE MAGNET WIRE FOR RELAY

SUEW is a solderable film insulation composed of a Modified Polyester-imide resin. It is designed for those special coil applications where solderability is coupled with a need for high thermal resistance.

FEATURES

(a) Excellent chemical resistance and good thermal stability.

(b) Physical properties are adequate for most coil application.

(c) Solderable when exposed to temeperatures between 450℃~510℃.

CERTIFICATION
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met

APPLICATION
  • Electronic transformers

  • Electronic winding

  • Micro-motor

  • Relay

  • Electric appliances and other electronic apparatus

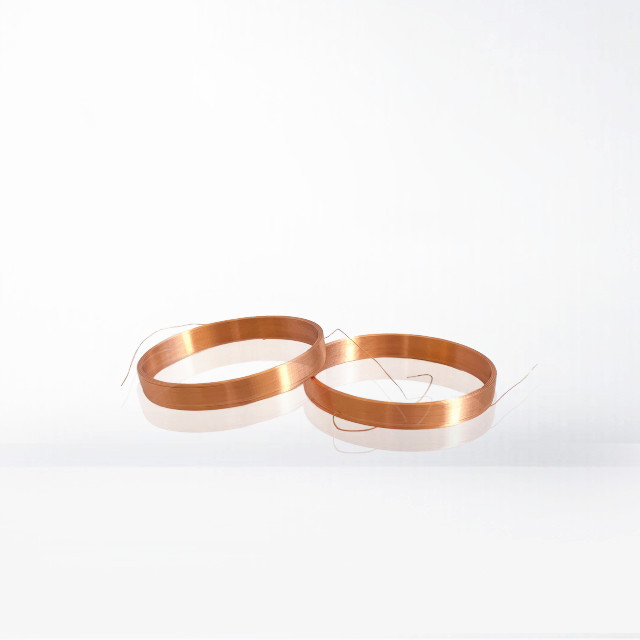

0.012 - 0.8mm Polyurethane Solderable Enameled Copper Wire Multiple Size Magnet Wire For Relay 0
Nominal Diameter mm Tolerance Min. Increase of Diameter Max. Overall Diameter Breakdown Voltage Elongation Pin Hole Electrical Resistance

mm ≥ V ≥% ≤Default/5m Ω/km (20℃)
  Mandrel Method Twisted Method     Min. Max.
0.012 ---- 0.013 0.015 50 ---- 5 10 142.64 157.65
0.013 ---- 0.015 0.017 70 ---- 5 10 118.41 133.98
0.014 ---- 0.016 0.018 70 ---- 5 10 102.64 120.45
0.015 ---- 0.017 0.02 80 ---- 5 10 89.83 104.41
0.016 ---- 0.018 0.021 90 ---- 5 8 74.67 97.56
0.017 ---- 0.019 0.022 90 ---- 5 8 66.6 85.75
0.018 ---- 0.02 0.023 100 ---- 5 8 59.77 75.95
0.019 ---- 0.021 0.024 100 ---- 5 8 53.95 67.75
0.02 0.001 0.022 0.024 100 --- 8 8 51.83 60.81
0.05 ±0.002 0.007 0.062 400 1200 12 5 7981 9528
0.055 ±0.002 0.007 0.068 400 1200 12 5 6642 7815
0.06 ±0.002 0.007 0.073 500 1200 14 5 5614 6526
0.065 ±0.002 0.007 0.078 500 1200 14 5 4807 5531
0.07 ±0.002 0.007 0.083 500 1200 15 5 4163 4747
0.075 ±0.002 0.007 0.088 550 1200 15 5 3640 4119
0.08 ±0.002 0.008 0.094 550 1200 16 5 3209 3608
0.085 ±0.002 0.008 0.099 550 1200 16 5 2851 3187
0.09 ±0.002 0.01 0.106 650 1200 16 5 2550 2835
0.095 ±0.002 0.01 0.111 650 1200 17 5 2294 2538
0.1 ±0.002 0.011 0.118 650 1200 17 5 2074 2286
0.11 ±0.002 0.011 0.129 ---- 1300 17 5 1720 1882
0.12 ±0.002 0.011 0.139 ---- 1500 17 5 1450 1577
0.13 ±0.002 0.011 0.149 ---- 1500 18 5 1239 1340
0.14 ±0.002 0.011 0.159 ---- 1600 19 5 1070 1153
0.15 ±0.002 0.011 0.169 ---- 1700 20 5 934.1 1002
0.16 ±0.002 0.012 0.18 ---- 1700 21 5 822.3 879.4
0.17 ±0.003 0.013 0.192 ---- 2000 22 5 721.1 787.1
0.18 ±0.003 0.014 0.204 ---- 2000 22 5 644.4 700.7
0.19 ±0.003 0.014 0.214 ---- 2000 23 5 579.4 627.8
0.2 ±0.003 0.014 0.224 ---- 2000 23 5 523.7 565.7
0.21 ±0.003 0.014 0.234 ---- 2000 23 5 475.7 512.3
0.22 ±0.003 0.014 0.245 ---- 2200 23 5 434 466.2
0.23 ±0.003 0.016 0.257 ---- 2200 24 5 397.5 426
0.24 ±0.003 0.016 0.267 ---- 2200 24 5 365.5 390.8
0.25 ±0.003 0.016 0.277 ---- 2300 24 5 337.1 359.8
0.26 ±0.004 0.018 0.287 ---- 2300 25 5 309.6 335
0.27 ±0.004 0.018 0.297 ---- 2300 25 5 287.4 310.3
0.28 ±0.004 0.022 0.313 ---- 2300 25 5 267.6 288.2
0.29 ±0.004 0.022 0.323 ---- 2500 25 5 249.7 268.4
0.3 ±0.004 0.022 0.334 ---- 2500 25 5 233.5 250.6
0.31 ±0.004 0.022 0.344 ---- 2500 25 5 218.9 234.4
0.315 ±0.004 0.022 0.349 ---- 2500 25 5 212.1 227
0.32 ±0.004 0.023 0.355 ---- 2700 25 5 205.6 219.8
0.33 ±0.004 0.023 0.365 ---- 2700 25 5 193.5 206.6
0.35 ±0.004 0.023 0.385 ---- 2700 26 5 172.2 183.4
0.355 ±0.004 0.023 0.39 ---- 2700 26 5 167.4 178.2
0.37 ±0.004 0.024 0.406 ---- 2900 26 5 154.3 163.9
0.38 ±0.004 0.024 0.416 ---- 2900 26 5 146.4 155.3
0.4 ±0.004 0.025 0.437 ---- 2900 27 5 132.2 140
0.41 ±0.004 0.025 0.447 ---- 2900 27 5 125.9 133.2
0.44 ±0.004 0.025 0.477 ---- 2900 27 5 109.5 115.5
0.45 ±0.004 0.025 0.487 ---- 2900 27 5 104.7 110.4
0.47 ±0.004 0.026 0.508 ---- 3100 27 5 96.05 101.1
0.5 ±0.004 0.026 0.539 ---- 3100 27 5 84.96 89.23
0.55 ±0.004 0.027 0.59 ---- 3300 28 5 70.31 73.64
0.6 ±0.005 0.027 0.64 ---- 3500 28 5 58.96 62.01
0.65 ±0.005 0.027 0.69 ---- 3500 28 5 50.3 52.77
0.7 ±0.005 0.029 0.742 ---- 3500 28 5 43.42 45.45
0.75 ±0.005 0.03 0.794 ---- 3800 28 5 37.86 39.55
0.8 ±0.005 0.032 0.846 ---- 3800 28 5 33.3 34.73
