Detail Information

Product Name:	0.012mm -1.2mm Super Fine Copper Enameled Wire Full Size Varnished Magnet Copper Wire	Key Word:	60.012mm -1.2mm Super Fine Copper Enameled Wire Full Size Varnished Magnet Copper Wire
Temperature:	155/180	Stock:	Available
Insulation:	Polyurethane, Polyesterimide, Polyamidimide	Color:	Original/Red/Blue/Green
Size:	0.102-1.2mm
Highlight:	soft copper wire , self solderable copper wire

Product Description

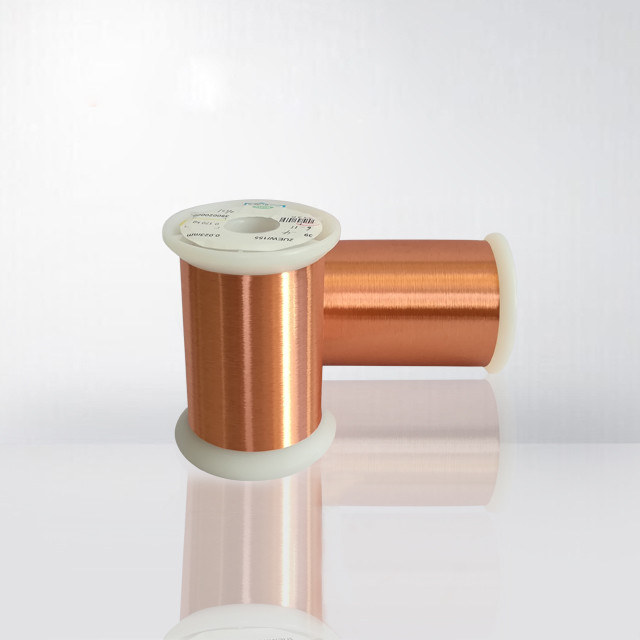

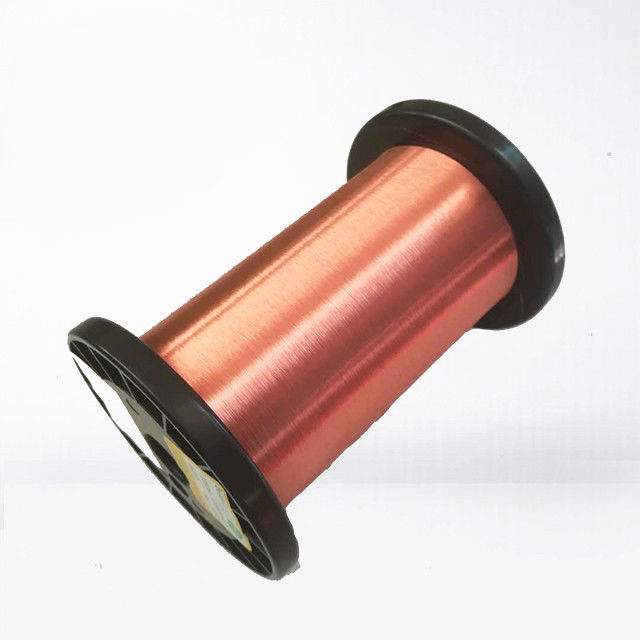

0.012mm -1.2mm Super Fine Copper Enameled Wire Full Size Varnished Magnet Copper Wire

Magnet wire is copper wire with a thin layer of insulation, and is used in a variety of applications including transformers, wound coils, motors, solenoids, and instruments. Raw copper is drawn to meet specific Size requirements based on the National electrical manufacturers Association (NEMA) standards. This magnet wire meets the NEMA mw-80-c standard for operating temperature (155°c/311°f) and insulation makeup. The insulation is made from modified polyurethane with a polyimide overcoat, and protects the coiled wire from short-circuiting.

FEATURES

1. Full range size0.012-4.5mm

2. Solderable Polyurethane Enameled Wire, Class 130/155/180(UEW/130,UEW/155,UEW/180)
3. Polyester Enameled Wire, Class 130/155 (PEW/130/155)
4. Modified Polyester Enameled Wire, Class 155 (MPEW/155)
5. Excellent heat shock, adherence and flexibility.

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
IEC, JIS and NEMA.

APPLICATION

audio and TV coils
stator windings

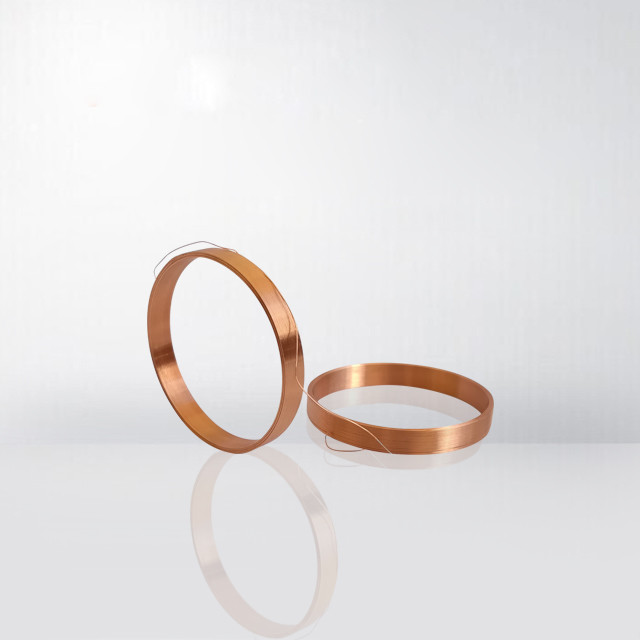

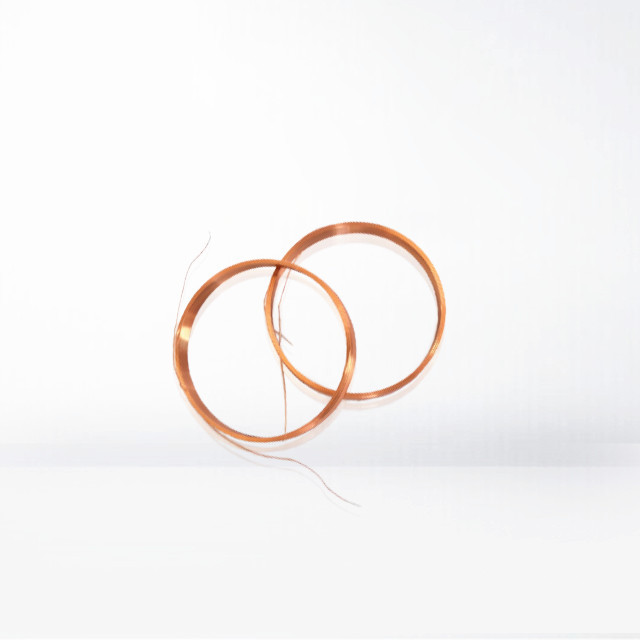

solenoid coils and air coils
electrical and electronic components

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance
	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.012	----	0.013	0.015	50	----	5	10	142.64	157.65
0.013	----	0.015	0.017	70	----	5	10	118.41	133.98
0.014	----	0.016	0.018	70	----	5	10	102.64	120.45
0.015	----	0.017	0.02	80	----	5	10	89.83	104.41
0.016	----	0.018	0.021	90	----	5	8	74.67	97.56
0.017	----	0.019	0.022	90	----	5	8	66.6	85.75
0.018	----	0.02	0.023	100	----	5	8	59.77	75.95
0.019	----	0.021	0.024	100	----	5	8	53.95	67.75
0.02	0.002	0.022	0.024	100	----	5	8
0.05	±0.002	0.007	0.062	400	1200	12	5	7981	9528
0.055	±0.002	0.007	0.068	400	1200	12	5	6642	7815
0.06	±0.002	0.007	0.073	500	1200	14	5	5614	6526
0.065	±0.002	0.007	0.078	500	1200	14	5	4807	5531
0.07	±0.002	0.007	0.083	500	1200	15	5	4163	4747
0.075	±0.002	0.007	0.088	550	1200	15	5	3640	4119
0.08	±0.002	0.008	0.094	550	1200	16	5	3209	3608
0.085	±0.002	0.008	0.099	550	1200	16	5	2851	3187
0.09	±0.002	0.01	0.106	650	1200	16	5	2550	2835
0.095	±0.002	0.01	0.111	650	1200	17	5	2294	2538
0.1	±0.002	0.011	0.118	650	1200	17	5	2074	2286
0.11	±0.002	0.011	0.129	----	1300	17	5	1720	1882
0.12	±0.002	0.011	0.139	----	1500	17	5	1450	1577
0.13	±0.002	0.011	0.149	----	1500	18	5	1239	1340
0.14	±0.002	0.011	0.159	----	1600	19	5	1070	1153
0.15	±0.002	0.011	0.169	----	1700	20	5	934.1	1002
0.16	±0.002	0.012	0.18	----	1700	21	5	822.3	879.4
0.17	±0.003	0.013	0.192	----	2000	22	5	721.1	787.1
0.18	±0.003	0.014	0.204	----	2000	22	5	644.4	700.7
0.19	±0.003	0.014	0.214	----	2000	23	5	579.4	627.8
0.2	±0.003	0.014	0.224	----	2000	23	5	523.7	565.7
0.21	±0.003	0.014	0.234	----	2000	23	5	475.7	512.3
0.22	±0.003	0.014	0.245	----	2200	23	5	434	466.2
0.23	±0.003	0.016	0.257	----	2200	24	5	397.5	426
0.24	±0.003	0.016	0.267	----	2200	24	5	365.5	390.8
0.25	±0.003	0.016	0.277	----	2300	24	5	337.1	359.8
0.26	±0.004	0.018	0.287	----	2300	25	5	309.6	335
0.27	±0.004	0.018	0.297	----	2300	25	5	287.4	310.3
0.28	±0.004	0.022	0.313	----	2300	25	5	267.6	288.2
0.29	±0.004	0.022	0.323	----	2500	25	5	249.7	268.4
0.3	±0.004	0.022	0.334	----	2500	25	5	233.5	250.6
0.31	±0.004	0.022	0.344	----	2500	25	5	218.9	234.4
0.315	±0.004	0.022	0.349	----	2500	25	5	212.1	227
0.32	±0.004	0.023	0.355	----	2700	25	5	205.6	219.8
0.33	±0.004	0.023	0.365	----	2700	25	5	193.5	206.6
0.35	±0.004	0.023	0.385	----	2700	26	5	172.2	183.4
0.355	±0.004	0.023	0.39	----	2700	26	5	167.4	178.2
0.37	±0.004	0.024	0.406	----	2900	26	5	154.3	163.9
0.38	±0.004	0.024	0.416	----	2900	26	5	146.4	155.3
0.4	±0.004	0.025	0.437	----	2900	27	5	132.2	140
0.41	±0.004	0.025	0.447	----	2900	27	5	125.9	133.2
0.44	±0.004	0.025	0.477	----	2900	27	5	109.5	115.5
0.45	±0.004	0.025	0.487	----	2900	27	5	104.7	110.4
0.47	±0.004	0.026	0.508	----	3100	27	5	96.05	101.1
0.5	±0.004	0.026	0.539	----	3100	27	5	84.96	89.23
0.55	±0.004	0.027	0.59	----	3300	28	5	70.31	73.64
0.6	±0.005	0.027	0.64	----	3500	28	5	58.96	62.01
0.65	±0.005	0.027	0.69	----	3500	28	5	50.3	52.77
0.7	±0.005	0.029	0.742	----	3500	28	5	43.42	45.45
0.75	±0.005	0.03	0.794	----	3800	28	5	37.86	39.55
0.8	±0.005	0.032	0.846	----	3800	28	5	33.3	34.73

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	0.012-1.2mm

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
