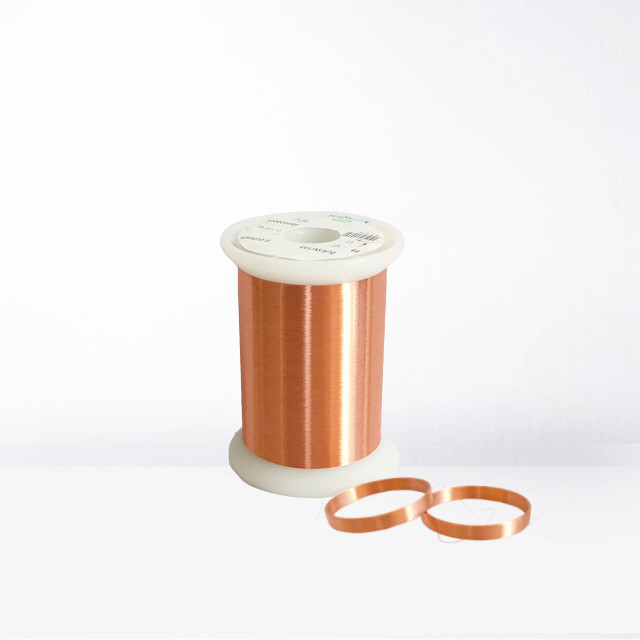

0.012 - 0.4mm Super Fine Enameled Magnet Wire Blue / Green / Red Copper Winding Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.012 - 0.4mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Color: Red/Green/Bule Insulation: Round Copper
Brand: Rvyuan Thermal Class: 130-220
Delivery: Fast Delivery Guarantee Size: 0.012-0.4mm
High Light:

magnetic coil wire

,

self bonding magnet wire


Product Description

0.012 - 0.4MM SUPER FINE ENAMELED MAGNET WIRE BLUE/GREEN/RED COPPER WINDING WIRE

Comparing the color of copper itself, red, blue and green enamelled magnetic copper wire can help to distinguish clearly when there are different wires should be used at the same time.That not only greatly reduces potential operating damage but makes the wire more beautiul!.

0.012 - 0.4mm Super Fine Enameled Magnet Wire Blue / Green / Red Copper Winding Wire 0

Nominal Diameter mm Tolerance Min. Increase of Diameter Max. Overall Diameter Breakdown Voltage Elongation Pin Hole Electrical Resistance

mm ≥ V ≥% ≤Default/5m Ω/km (20℃)
  Mandrel Method Twisted Method     Min. Max.
0.012 ---- 0.013 0.015 50 ---- 5 10 142.64 157.65
0.013 ---- 0.015 0.017 70 ---- 5 10 118.41 133.98
0.014 ---- 0.016 0.018 70 ---- 5 10 102.64 120.45
0.015 ---- 0.017 0.02 80 ---- 5 10 89.83 104.41
0.016 ---- 0.018 0.021 90 ---- 5 8 74.67 97.56
0.017 ---- 0.019 0.022 90 ---- 5 8 66.6 85.75
0.018 ---- 0.02 0.023 100 ---- 5 8 59.77 75.95
0.019 ---- 0.021 0.024 100 ---- 5 8 53.95 67.75
0.05 ±0.002 0.007 0.062 400 1200 12 5 7981 9528
0.055 ±0.002 0.007 0.068 400 1200 12 5 6642 7815
0.06 ±0.002 0.007 0.073 500 1200 14 5 5614 6526
0.065 ±0.002 0.007 0.078 500 1200 14 5 4807 5531
0.07 ±0.002 0.007 0.083 500 1200 15 5 4163 4747
0.075 ±0.002 0.007 0.088 550 1200 15 5 3640 4119
0.08 ±0.002 0.008 0.094 550 1200 16 5 3209 3608
0.085 ±0.002 0.008 0.099 550 1200 16 5 2851 3187
0.09 ±0.002 0.01 0.106 650 1200 16 5 2550 2835
0.095 ±0.002 0.01 0.111 650 1200 17 5 2294 2538
0.1 ±0.002 0.011 0.118 650 1200 17 5 2074 2286
0.11 ±0.002 0.011 0.129 ---- 1300 17 5 1720 1882
0.12 ±0.002 0.011 0.139 ---- 1500 17 5 1450 1577
0.13 ±0.002 0.011 0.149 ---- 1500 18 5 1239 1340
0.14 ±0.002 0.011 0.159 ---- 1600 19 5 1070 1153
0.15 ±0.002 0.011 0.169 ---- 1700 20 5 934.1 1002
0.16 ±0.002 0.012 0.18 ---- 1700 21 5 822.3 879.4
0.17 ±0.003 0.013 0.192 ---- 2000 22 5 721.1 787.1
0.18 ±0.003 0.014 0.204 ---- 2000 22 5 644.4 700.7
0.19 ±0.003 0.014 0.214 ---- 2000 23 5 579.4 627.8
0.2 ±0.003 0.014 0.224 ---- 2000 23 5 523.7 565.7
0.21 ±0.003 0.014 0.234 ---- 2000 23 5 475.7 512.3
0.22 ±0.003 0.014 0.245 ---- 2200 23 5 434 466.2
0.23 ±0.003 0.016 0.257 ---- 2200 24 5 397.5 426
0.24 ±0.003 0.016 0.267 ---- 2200 24 5 365.5 390.8
0.25 ±0.003 0.016 0.277 ---- 2300 24 5 337.1 359.8
0.26 ±0.004 0.018 0.287 ---- 2300 25 5 309.6 335
0.27 ±0.004 0.018 0.297 ---- 2300 25 5 287.4 310.3
0.28 ±0.004 0.022 0.313 ---- 2300 25 5 267.6 288.2
0.29 ±0.004 0.022 0.323 ---- 2500 25 5 249.7 268.4
0.3 ±0.004 0.022 0.334 ---- 2500 25 5 233.5 250.6
0.31 ±0.004 0.022 0.344 ---- 2500 25 5 218.9 234.4
0.315 ±0.004 0.022 0.349 ---- 2500 25 5 212.1 227
0.32 ±0.004 0.023 0.355 ---- 2700 25 5 205.6 219.8
0.33 ±0.004 0.023 0.365 ---- 2700 25 5 193.5 206.6
0.35 ±0.004 0.023 0.385 ---- 2700 26 5 172.2 183.4
0.355 ±0.004 0.023 0.39 ---- 2700 26 5 167.4 178.2
0.37 ±0.004 0.024 0.406 ---- 2900 26 5 154.3 163.9
0.38 ±0.004 0.024 0.416 ---- 2900 26 5 146.4 155.3
0.4 ±0.004 0.025 0.437 ---- 2900 27 5 132.2 140
