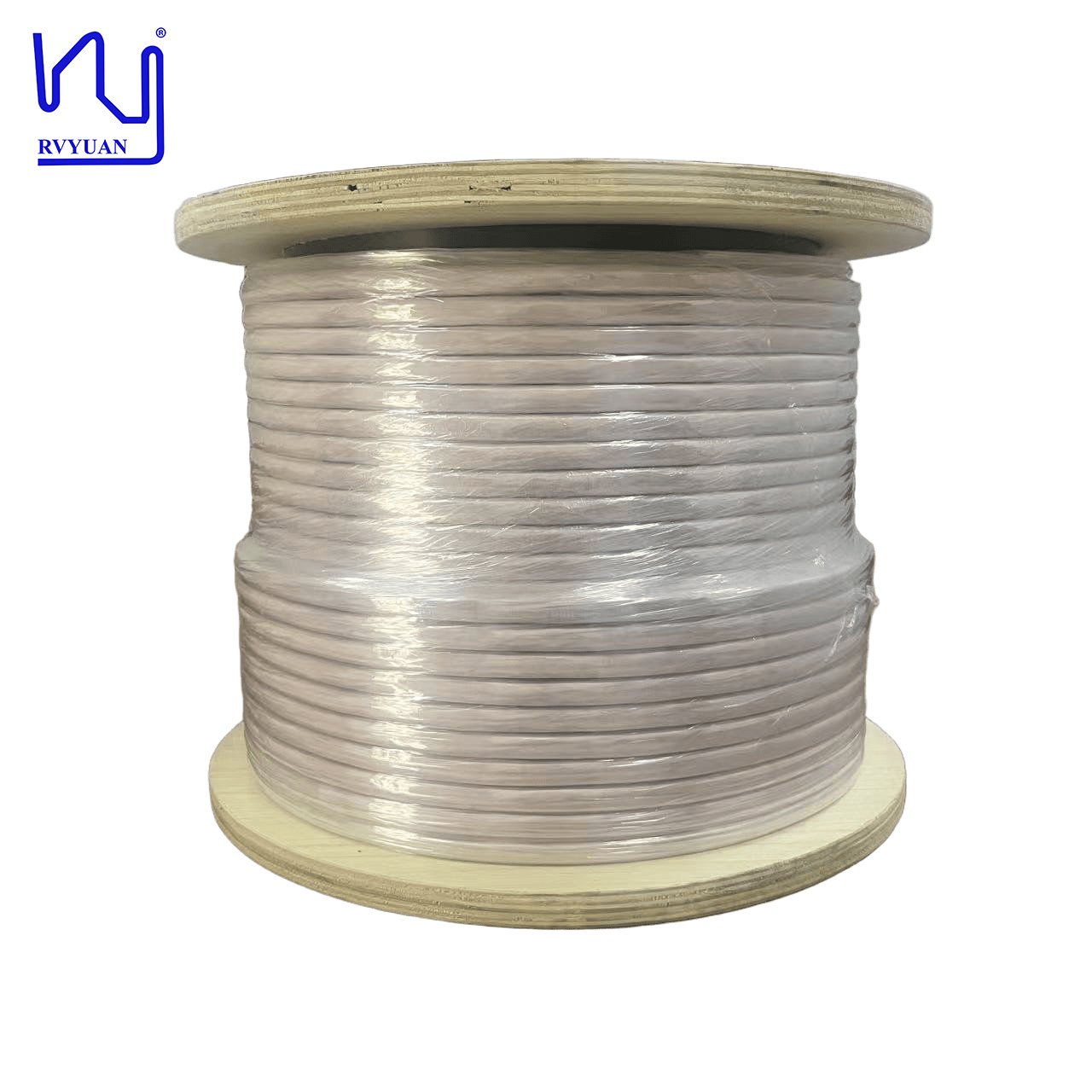

USTC-F/H 0.08mm x 9100 Flat Nylon Serving Copper Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	50kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.08mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	9100	Breakdown Voltage:	Min.500
Cover Material:	Nylon	Key Word:	USTC-F/H 0.08mm X 9100 Flat Nylon Serving Copper Litz Wire For Transformer
Highlight:	0.08mm flat nylon litz wire , copper litz wire for transformer , USTC-F/H 9100 serving wire

Product Description

USTC-F/H 0.08mm x 9100 Flat Nylon Serving Copper Litz Wire For Transformer

This large-size flat litz wire is engineered for demanding power electronic systems requiring high current capacity and low AC resistance.

Applications

High-power transformers and inductors for switching power supplies, inverters, and renewable energy systems
Induction heating equipment requiring low AC resistance at medium to high frequencies
Electric vehicle (EV) charging stations and onboard chargers with space constraints
Medical imaging devices such as MRI systems where uniform magnetic fields and low losses are critical
Aerospace and defense electronics demanding lightweight, high-reliability conductors

Technical Specifications

Item No.	Wire Diameter (mm)	Conductor Diameter (mm)	Width (mm)	Thickness (mm)	Resistance (Ω/m)	Breakdown Voltage (V)	Pitch
Tech Requirement	0.087-0.103	0.08±0.003	9.90±0.25	9.80±0.25	≤0.000440	≥500	130±20
Sample 1	0.090-0.092	0.077-0.080	9.65-10.10	9.70-10.00	0.000388	680	130

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
