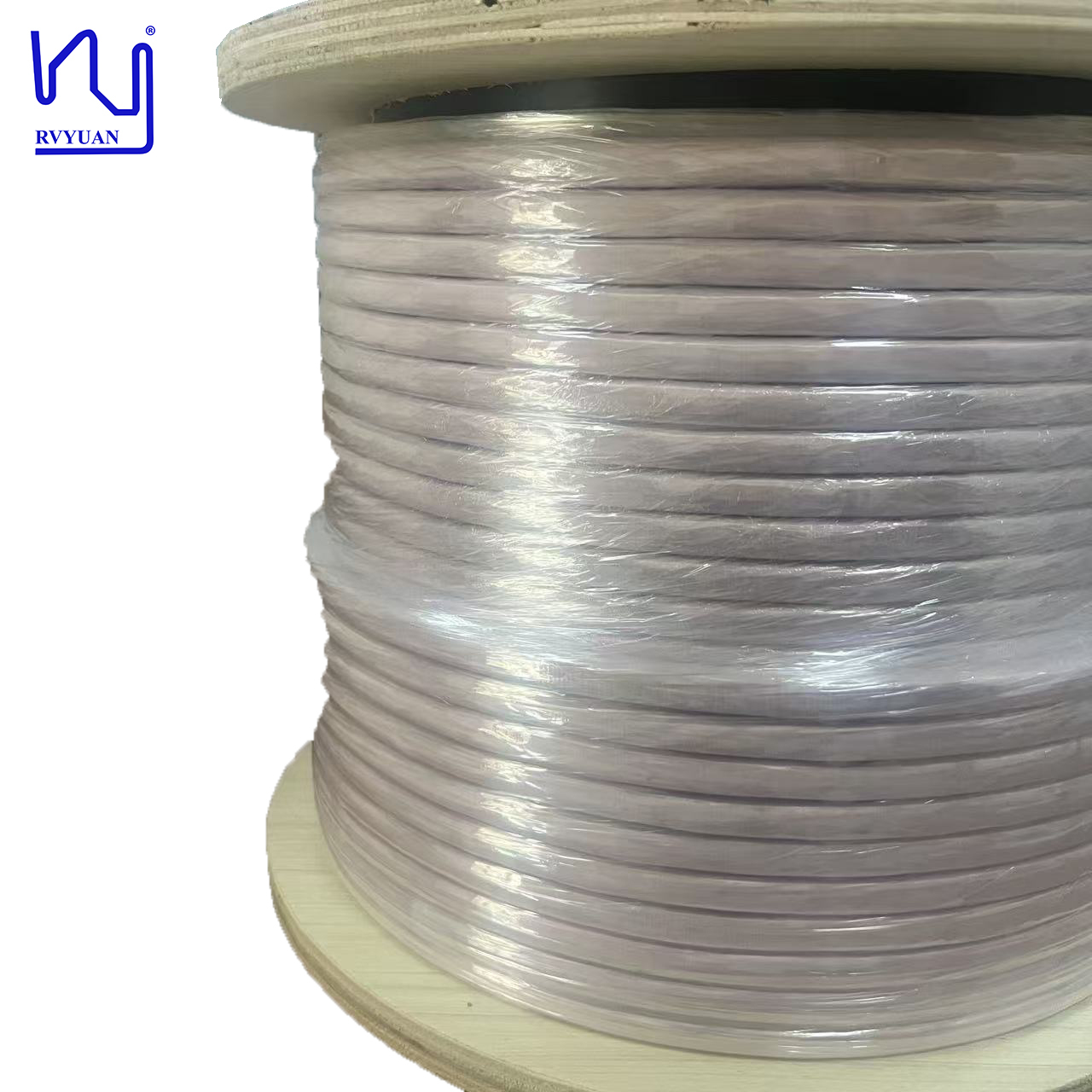

USTC-F 0.08mmx9100 strands silk covered litz wire 9.9mmx9.8mm overall dimension for transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	50kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.08mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	9100	Breakdown Voltage:	Min.500
Cover Material:	Nylon	Key Word:	Flat Silk Covered Litz Wire Manufacturer
Highlight:	0.08mm silk litz wire for transformer , 9100 strands litz wire with silk cover , 9.9mmx9.8mm ustc litz wire

Product Description

USTC-F 0.08mm x 9100 Strands Silk Covered Litz Wire

Flat dimensions: 9.9mm x 9.8mm for transformer applications

Product Overview

This custom flat silk-covered litz wire is engineered for high-frequency, high-current applications where efficiency and reliability are critical. The specialized construction features 9,100 individually enameled strands, each with a diameter of 0.08 mm, twisted together to form a compact bundle. After pressing, the finished flat dimensions are 9.9 mm in width and 9.8 mm in thickness, creating a robust, space-efficient conductor ideal for transformer windings.

Technical Specifications

Item No.	Diameter of Single Wire (mm)	Conductor Diameter (mm)	Width (mm)	Thickness (mm)	Resistance (Ω/m)	Breakdown Voltage (V)	Pitch
Tech Requirement	0.087-0.103	0.08±0.003	9.90±0.25	9.80±0.25	≤0.000440	≥500	130±20
Sample 1	0.090-0.092	0.077-0.080	9.65-10.10	9.70-10.00	0.000388	680	130

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
