Natural Silk Serving 0.055mm Silver Plated Litz Wire For Audio

Basic Information
Place of Origin: China
Brand Name: RVYUAN
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: USTC
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 15 workding days
Payment Terms: T/T/ Paypal
Supply Ability: Satisfy your demand
Detail Information
Diameter: 0.055mm Temperature: 155
Certification: IEC/NEMA/JIS/RoHS/ISO Conductor: Copper
Strands: 126 Breakdown Voltage: Min.950
Cover Material: Nylon Key Word: Natural Silk Serving 0.055mm Silver Plated Litz Wire For Audio
Highlight:

natural silk litz wire

,

silver plated audio wire

,

0.055mm litz wire


Product Description

Natural Silk Serving 0.055mm Silver Plated Litz Wire For Audio
Product Overview

Natural Silk Serving 0.055mm Silver Plated Litz Wire For Audio. The entire litz wire is wrapped in double layers of natural silk. Beyond its aesthetic appeal and flexibility, silk is a superior mechanical damper. It minimizes microphonic noise—the physical vibrations that can be translated into unwanted electrical signals—resulting in a quieter noise floor and allowing for a more lifelike, three-dimensional soundstage. This combination of high-strand Litz geometry, robust enamel insulation, and natural silk damping creates a conductor of unparalleled purity and sonic accuracy.

Technical Specifications
Conductor diameter (mm) 0.0550±0.0030 (silver layer: 0.0002)
Single sides insulated layer thickness 0.0050±0.0010
Electrical resistance of single wire (Ω/m) 6.243~7.738
Breakdown Voltage (V) ≥950
Twist Distance (mm) P1=8±2 P2=21±3
Stranding mode 18X7
Electrical resistance (Ω/m) 0.0505~0.0627
Thermal class F(155)
Soldering time 2S/390±5℃
Twist Direction Z
Faults/5 m (Saline pinhole) 0
Product Image

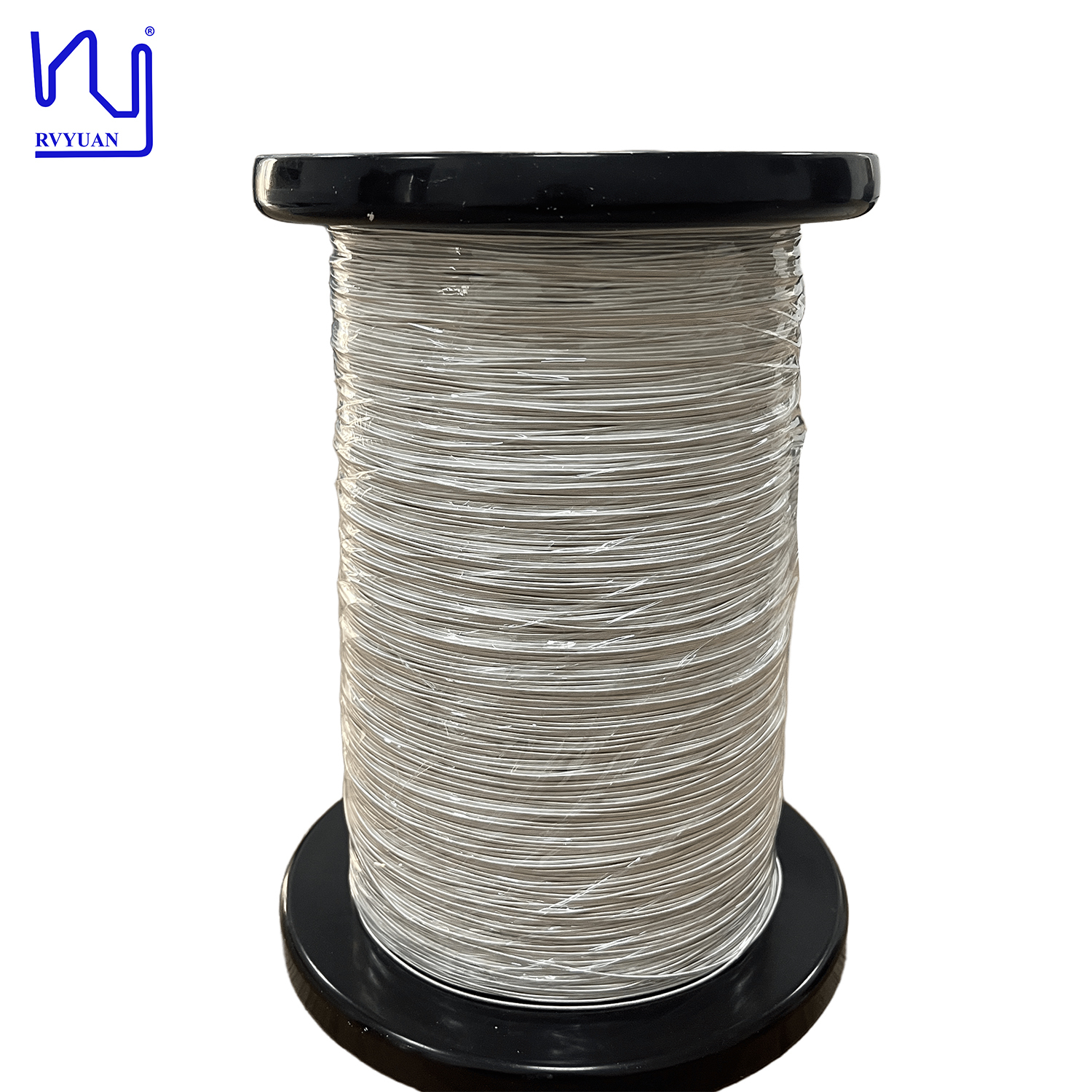

Natural Silk Serving 0.055mm Silver Plated Litz Wire For Audio 0
