Enameled USTC Wire 0.055mmx126 Natural Silk Covered Silver plated copper litz wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.055mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	126	Breakdown Voltage:	Min.950
Cover Material:	Nylon	Key Word:	Enameled USTC Wire 0.055mmx126 Natural Silk Covered Silver Plated Copper Litz Wire
Highlight:	enameled USTC litz wire , silver plated copper litz wire , natural silk covered litz wire

Product Description

Enameled USTC Wire 0.055mmx126 Natural Silk Covered Silver Plated Copper Litz Wire

This customized natural silk covered silver plated litz wire is engineered to meet the exacting demands of high-end audio applications. Its unique construction provides superior signal transmission, purity, and durability.

Product Features

Each silver plated copper wire features enamel insulation for complete electrical isolation between strands
Forces signal to flow through the entire conductor, minimizing eddy currents and phase distortion
Exceptional dielectric voltage resistance of at least 950 volts for safety and reliability
Ideal for high-voltage tube amplifier circuits and premium audio applications

Technical Specifications

Parameter	Specification
Conductor Diameter	0.0550±0.0030 mm (silver layer: 0.0002 mm)
Single Sides Insulated Layer Thickness	0.0050±0.0010 mm
Electrical Resistance of Single Wire	6.243~7.738 Ω/m
Breakdown Voltage	≥950 V
Twist Distance	P1=8±2 mm, P2=21±3 mm
Stranding Mode	18X7
Electrical Resistance	0.0505~0.0627 Ω/m
Thermal Class	F(155)
Soldering Time	2S/390±5℃
Twist Direction	Z
Faults/5m (Saline Pinhole)	0

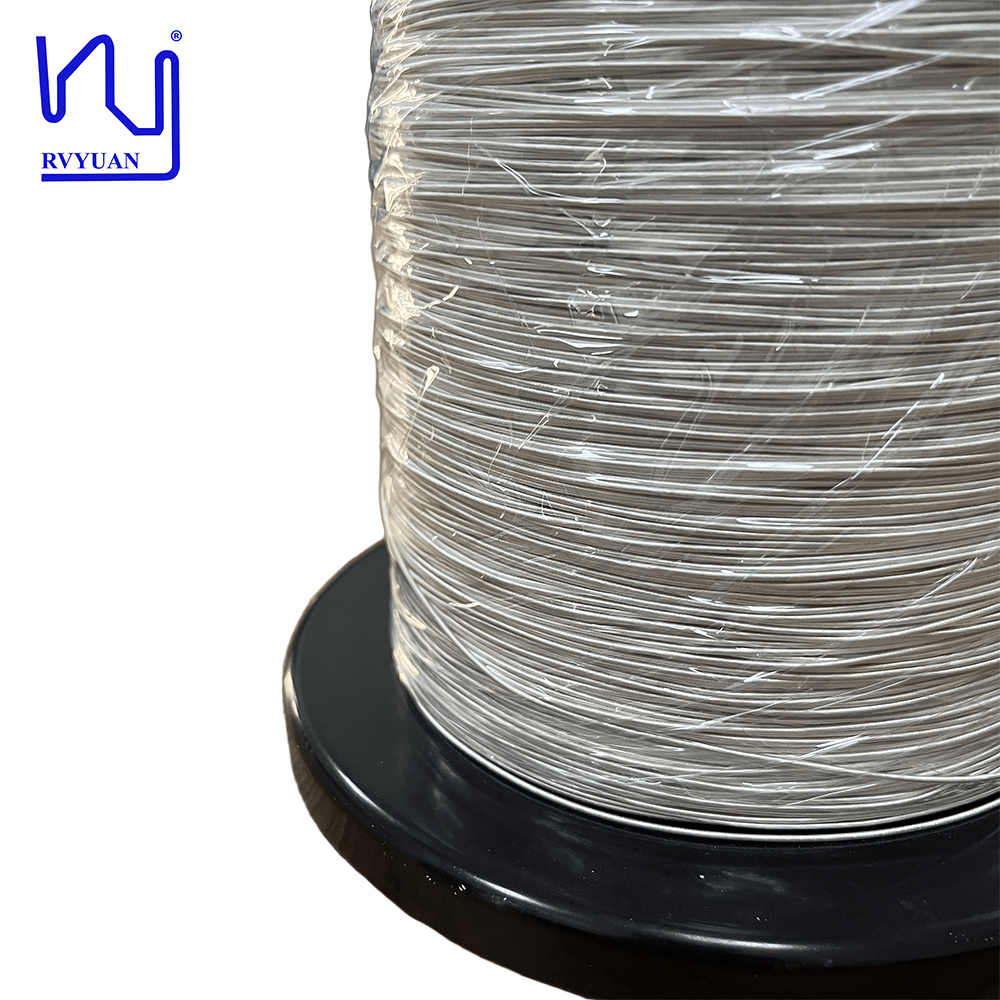

Product Image
