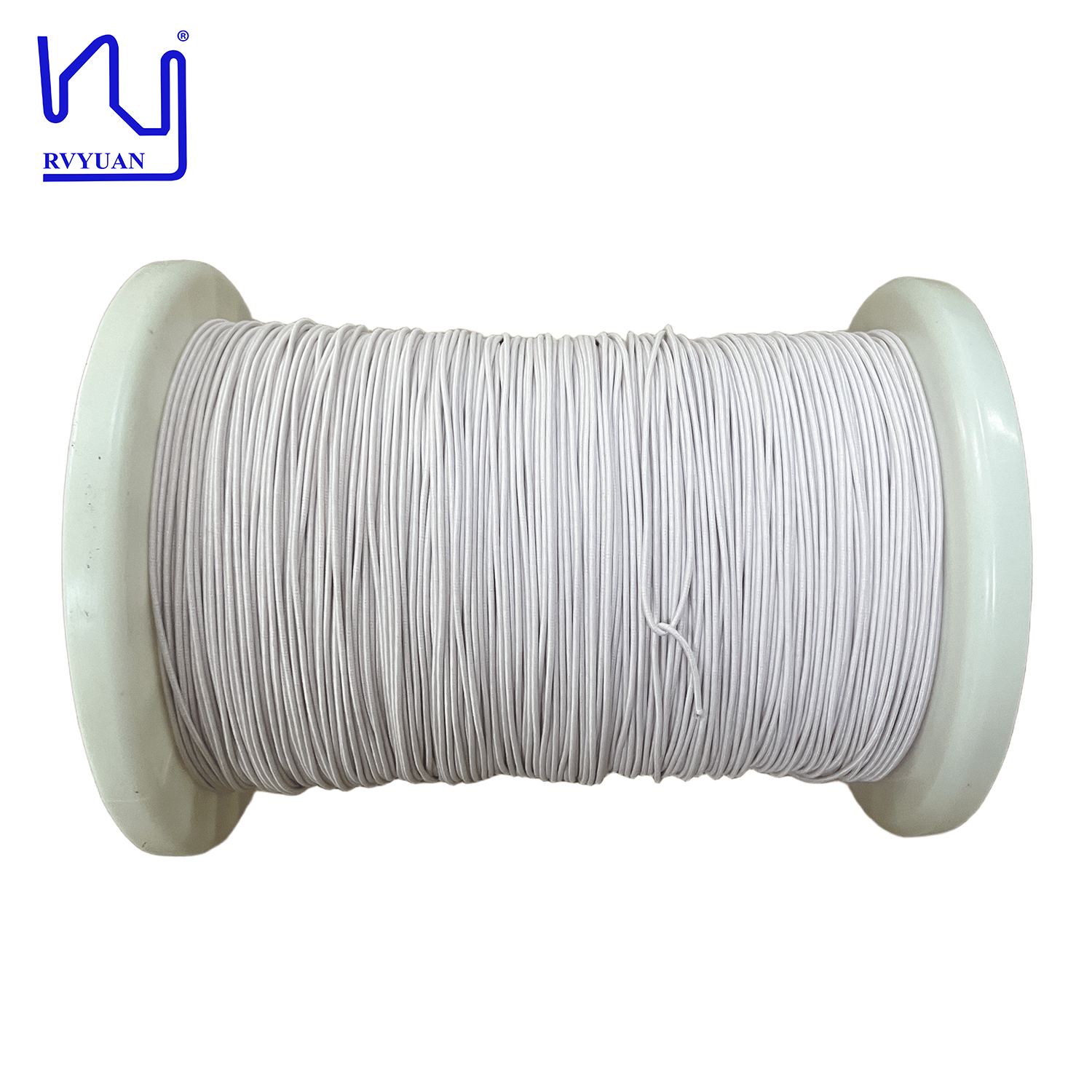

Customizable 0.071mm 250 Strands USTC Silk Covered Insulated Litz Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	3kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.071mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	250	Breakdown Voltage:	Min.500
Cover Material:	Nylon	Key Word:	Customizable 0.071mm 250 Strands USTC Silk Covered Insulated Litz Copper Wire
Highlight:	Customizable USTC Litz copper wire , 0.071mm silk covered Litz wire , 250 strands insulated Litz wire

Product Description

Customizable 0.071mm 250 Strands USTC Silk Covered Insulated Litz Copper Wire

Product Overview

This customizable 0.071mm 250 strands USTC silk covered insulated Litz copper wire features ultra-thin silk insulation that enables tight winding while minimizing interference in signal transmission.

Applications

Precision Electronics and Instrumentation: The ultra-thin insulation layer allows for tight winding, making it ideal for high-precision instruments, sensors, and micro-motors. The silk-insulated layer minimizes interference in the transmission of weak signals, which is crucial for precision measurement circuits.

Technical Specifications

Item	Technical Requirements	Test Value 1	Test Value 2
Conductor Diameter (mm)	0.071±0.003	0.068	0.070
Single Wire Diameter (mm)	0.076-0.084	0.079	0.080
O.D. (mm)	Max. 1.85	1.54	1.64
Resistance Ω/m (20℃)	Max. 0.01996	0.01790	0.01788
Breakdown Voltage V	950	2600	2700
Pitch mm	29 ± 5	√	√
No. of Strands	250	√	√
