Name: 2uew-f 0.05mm Polyurthane Enameled copper Wire For Miniature Inductors
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.05mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	2uew-f 0.05mm Polyurthane Enameled Copper Wire For Miniature Inductors	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.05mm
Conductor Material:	Copper
Highlight:	0.05mm polyurethane enameled copper wire , miniature inductors copper wire , enameled copper wire for inductors

Product Description

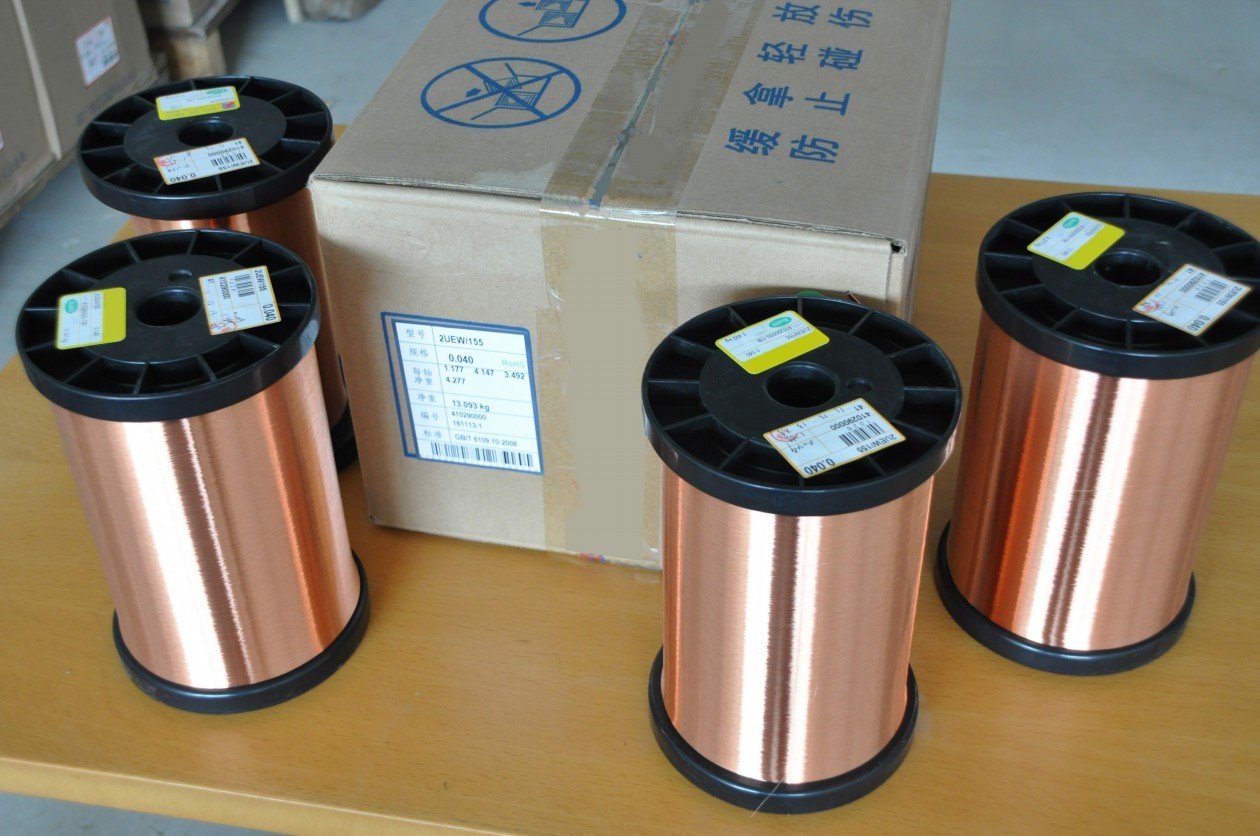

2UEW-F 0.05mm Polyurethane Enameled Copper Wire For Miniature Inductors

0.05mm polyurethane enameled copper wire is an extremely fine special enameled wire that combines the properties of polyurethane coating and copper conductor, and has important applications in the field of precision electronics.

Advantages of Enameled Copper Wire

Extremely Fine Diameter and High Flexibility: With a diameter of only 0.05mm (approximately half the thickness of a human hair), it is suitable for ultra-high density winding.
Small Bending Radius, Easy to Precision Winding: Ideal for miniature coil applications.
Direct Solderability: Can be directly soldered at approximately 370°C without scraping off the coating ("self-soldering" characteristic), simplifying the processing of miniature coils.
High Frequency Resistance: Low dielectric loss at high frequencies, suitable for high-frequency transformers and RF coils.
Chemical Resistance: Resistant to solvents and moisture, with good stability.
Electrical and Mechanical Properties: The copper conductor has good conductivity, and the coating has high insulation strength (withstand voltage typically exceeding 1kV).
Strong Coating Adhesion: Scratch resistant, and not easily damaged during winding.

Quality Test Results

Test Items	Requirements	1st Sample	2nd Sample	3rd Sample
Appearance	Smooth & Clean	OK	OK	OK
Conductor Diameter	0.05mm ± 0.002mm	0.050	0.050	0.050
Thickness of Insulation	≥0.005mm	0.0080	0.0080	0.0080
Overall Diameter	≤ 0.006 mm	0.058	0.058	0.058
DC Resistance	≤ 9.528 Ω/m	8.753	8.713	8.723
Elongation	≥ 12 %	20	20	21
Breakdown Voltage	≥275V	863	747	832
Pin Hole	≤ 8 faults/5m	0	0	0
Adherence	No cracks visible	OK	OK	OK
Cut-through	230℃ 2min No breakdown	OK	OK	OK
Heat Shock	200±5℃/30min No cracks	OK	OK	OK
Solderability	390± 5℃ 2 Sec No slags	OK	OK	OK
Insulation Continuity	/	0	0	0

Product Specifications

Name: 2UEW155 0.05mm Red / Blue Color Motor Winding Insulated Copper Wire Solid

Keyword: 2UEW155 0.05mm Red / Blue Color Motor Winding Insulated Copper Wire Solid

Insulation: Enamel

Thermal Rating: 155

Diameter of the Enameled Copper Wire: 0.05mm

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.05mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week
