40AWG Magnet Wire Copper Winding Wire For High Precision Detection Coils

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.08mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Paypal/ T/T
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	40AWG Magnet Wire Copper Winding Wire For High Precision Detection Coils	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.08mm
Conductor Material:	Copper
Highlight:	40AWG enamelled copper wire , magnet wire for detection coils , high precision copper winding wire

Product Description

40AWG Magnet Wire Copper Winding Wire For High Precision Detection Coils

40AWG Magnet Wire Copper Winding Wire designed specifically for high precision detection coils and specialized applications requiring ultra-fine copper winding solutions.

Applications

Instrumentation and Aerospace: High-precision voltage and current transformers
Electronic Equipment: Aviation, spacecraft, and satellite components where miniaturization is crucial due to extreme weight and size requirements
Specialized Winding: Watch coils, jewelry anti-theft tag coils
Scientific Research: Precision detection coils in high-energy physics experiments and quantum computing devices

Technical Specifications & Test Results

Characteristics	Technical Requirements	Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.080±0.002 mm	0.45	0.45
Coating Thickness	≥ 0.008 mm	0.011	0.012
Overall Diameter	≤ 0.094 mm	0.091	0.092
Conductor Resistance	≤ 3.608 Ω/m	3.456	3.443
Elongation	≥ 16 %	19	19
Breakdown Voltage	≥ 425 V	1578	1496
Pinhole Test	≤ 5 holes/5m	0	0
Continuity	≤ 40 holes/30m	0	0

Performance Test Results

Test Items	Technical Requirements	Results
Adhesive	Coating layer is good	OK
Cut-through	200℃ 2mins no breakdown	OK
Heat Shock	175±5℃/30min no crack	OK
Solder Ability	390±5℃ 2Sec No blister, no expansion, no shed	OK

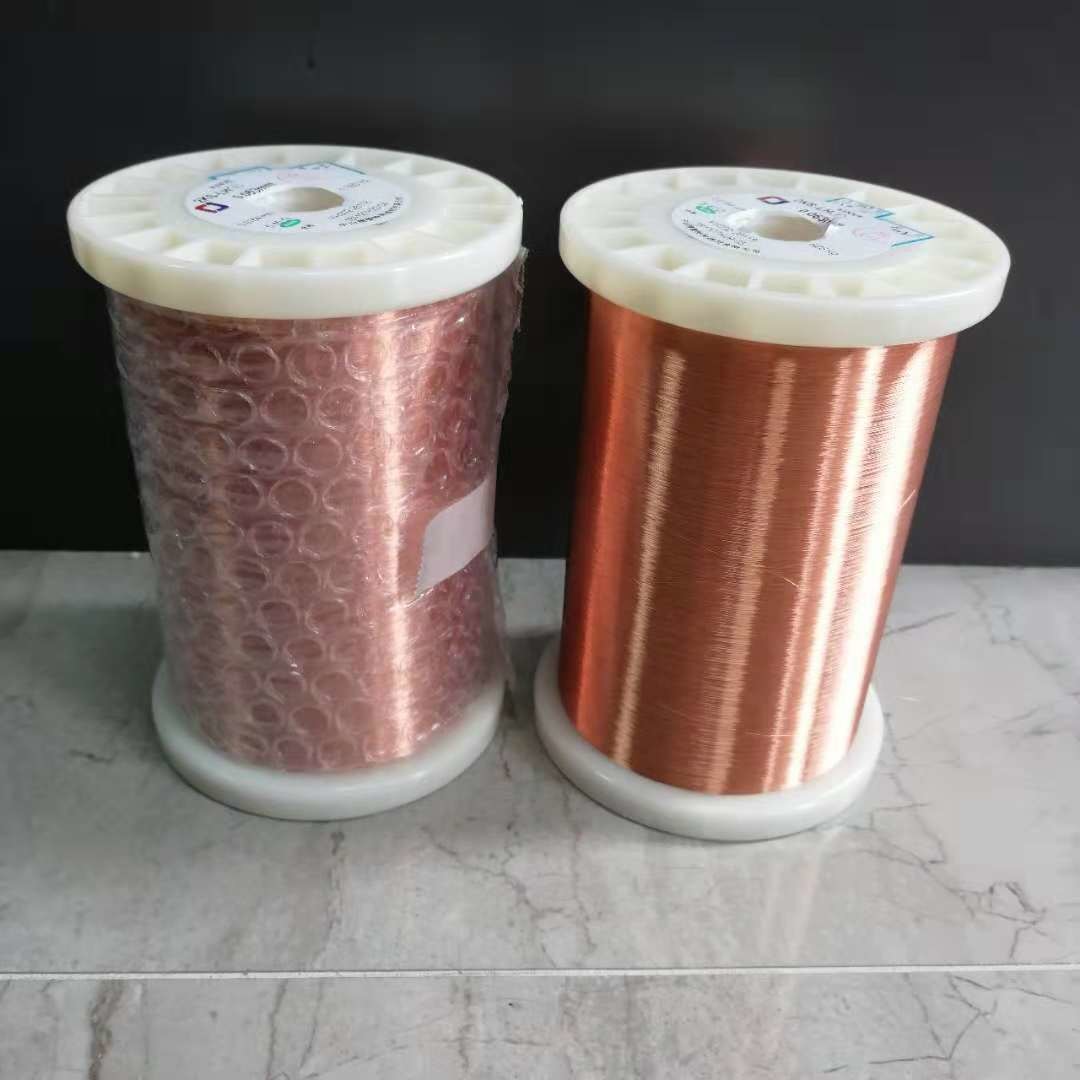

Product Sample
