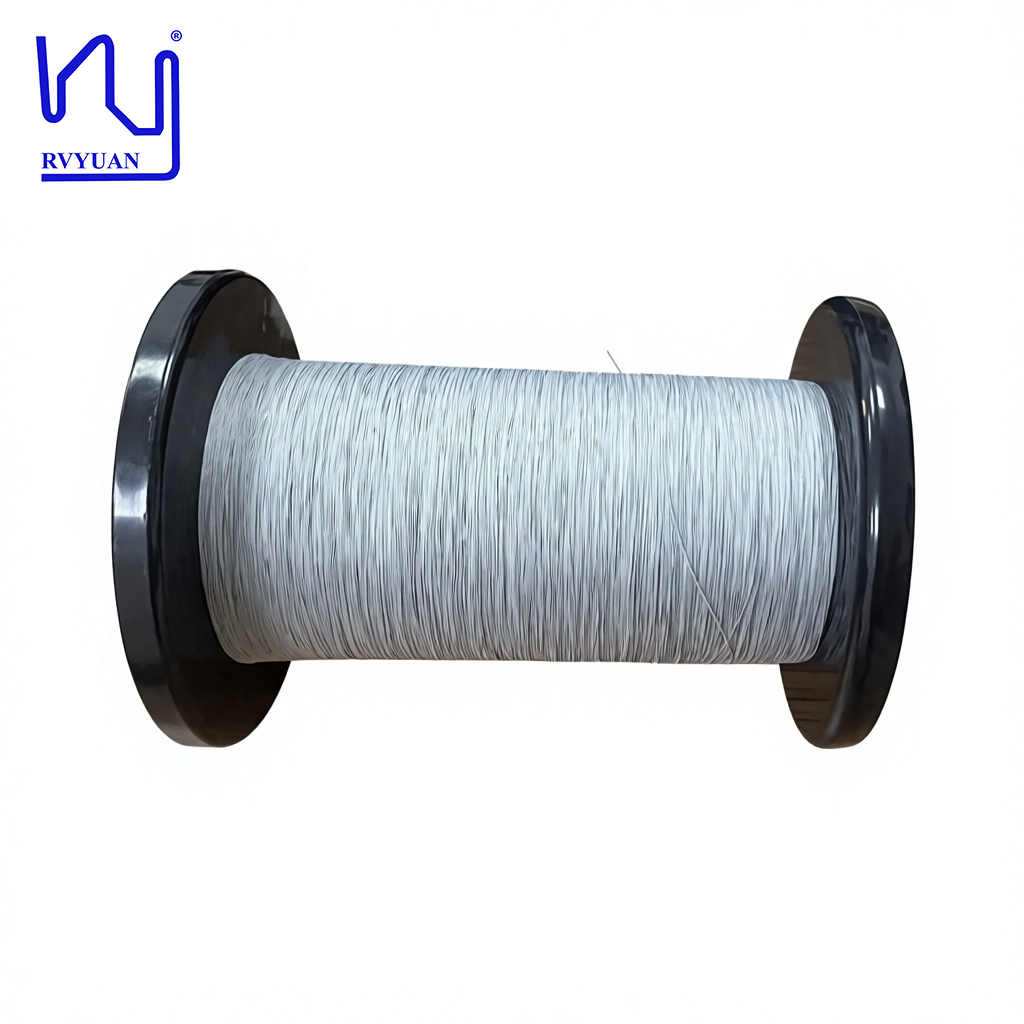

0.2mm Copper-Nickel Alloy wire Nylon Served Wire For Windings

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	C-N

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Paypal/ T/T
Supply Ability:	100kg/week

Get Best Price Contact Now

Detail Information

Product Name:	0.2mm Copper-Nickle Alloy Wire Nylon Served Wire For Windings	Conductor Diameter:	0.2mm
Conductor Material:	Copper-Nickle Alloy	Key Word:	Copper-Nickle Alloy Wire
Cover Material:	Nylon Yarn
Highlight:	0.2mm copper-nickel alloy wire , nylon served winding wire , enamelled copper wire for windings

Product Description

0.2mm Copper-Nickel Alloy Nylon Served Wire For Windings

High-performance 0.2mm copper-nickel alloy wire with nylon serving, specifically designed for precision winding applications.

Key Advantages

Excellent Corrosion Resistance: Copper-nickel alloys exhibit extremely strong corrosion resistance, especially in seawater environments, where they are virtually unaffected by stress corrosion.
Good Thermal Stability: Even at high temperatures, copper-nickel alloys maintain stable mechanical properties.

Quality Test Report

Characteristics	Technical Requirements	Sample 1	Sample 2	Sample 3	Conclusion
Surface	Good	OK	OK	OK	OK
Conductor Diameter	0.200 ±0.005mm	0.201	0.202	0.202	OK
Conductor Resistance (20°C Ω/m)	15.6-16.75	15.87	15.82	15.85	OK
Single Wire Elongation	≥ 30%	33.88	32.69	33.29	OK
Breakdown Voltage	≥ 450 V	700	900	800	OK
Bunching Direction	S-Z	S-Z	S-Z	S-Z	OK
Tensile Strength	≥ 380 MPa	392	390	391	OK

Product Sample
