USTC Silk Covered Copper-Nickel Alloy wire 0.2mm Conductor

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	C-N

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Paypal/ T/T
Supply Ability:	100kg/week

Get Best Price Contact Now

Detail Information

Product Name:	USTC Silk Covered Copper-Nickle Alloy Wire	Conductor Diameter:	0.2mm
Conductor Material:	Copper-Nickle Alloy	Key Word:	Copper-Nickle Alloy Wire
Cover Material:	Nylon Yarn
Highlight:	silk covered copper-nickel alloy wire , 0.2mm enamelled copper wire , USTC silk covered conductor wire

Product Description

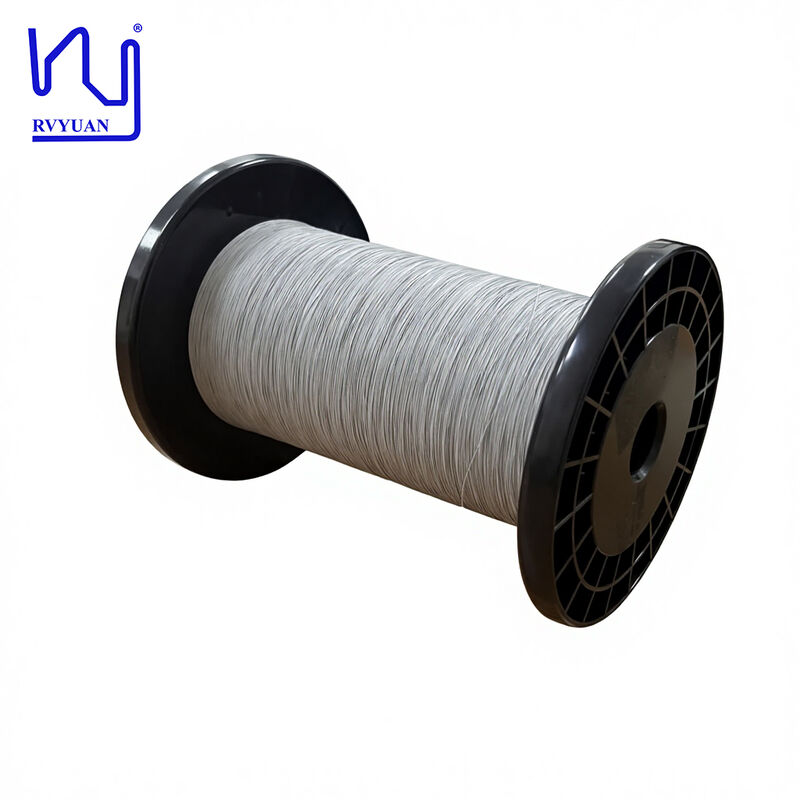

USTC Silk Covered Copper-Nickel Alloy Wire 0.2mm Conductor

USTC Silk Covered Copper-Nickel Alloy Wire 0.2mm Conductor offers exceptional performance characteristics ideal for demanding industrial applications.

Product Advantages

Copper-nickel alloys provide superior corrosion resistance, excellent thermal stability, and robust mechanical properties. Their corrosion resistance in seawater and humid environments is particularly outstanding, complemented by oxidation resistance, moderate strength, good thermal conductivity, and resistance to biofouling. These characteristics make them ideal for critical applications in marine environments, condenser tubes, and the power industry.

Quality Test Report - 0.2mm Copper-Nickel Alloy Wire

Characteristics	Technical Requirements	Sample 1	Sample 2	Sample 3	Conclusion
Surface	Good	OK	OK	OK	OK
Conductor Diameter	0.200 ±0.005mm	0.201	0.202	0.202	OK
Conductor Resistance (20°C Ω/m)	15.6-16.75	15.87	15.82	15.85	OK
Single Wire Elongation	≥ 30%	33.88	32.69	33.29	OK
Breakdown Voltage	≥ 450 V	700	900	800	OK
Bunching Direction	S-Z	S-Z	S-Z	S-Z	OK
Tensile Strength	≥ 380 MPa	392	390	391	OK
