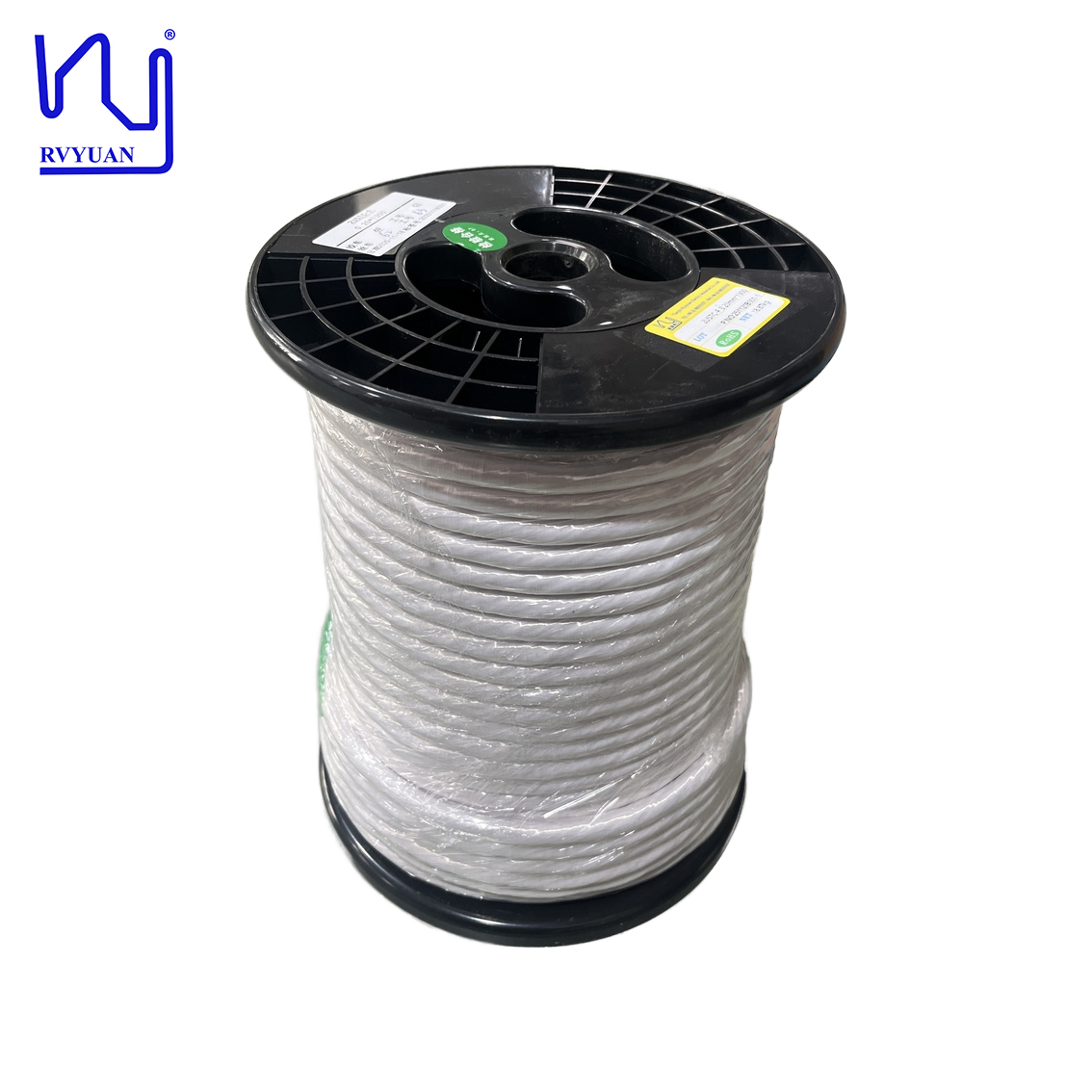

Class 155 Litz Wire 0.2mm 1300 Strands Nylon Served Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.2mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	1300	Breakdown Voltage:	Min.1100
Cover Material:	Nylon	Product Name:	Class 155 Litz Wire 0.2mm 1300 Strands Nylon Served Litz Wire
Key Word:	Class 155 Litz Wire 0.2mm 1300 Strands Nylon Served Litz Wire
Highlight:	Class 155 Litz Wire 0.2mm , 1300 Strands Nylon Served Litz Wire , USTC Litz Wire with nylon coating

Product Description

Class 155 Litz Wire 0.2mm 1300 Strands Nylon Served Litz Wire

Silk covered Litz wire is a versatile and high-performance conductor used in various fields, especially in electronics and electrical engineering.

Applications

Transformers: One of the main applications of silk covered Litz wire is in transformer windings. It can withstand voltages up to 2800 volts and possesses excellent flexibility, making it an ideal material for manufacturing highly efficient and reliable transformer coils. The Litz wire structure minimizes eddy current losses, thereby improving the overall efficiency of the transformer.

Product Specifications

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω/m	Breakdown voltage V	Pitch
Tech requirement	0.216-0.231	0.2±0.003	Max.11.09	≤0.000444	≥1600	78±10
Sample 1	0.220-0.223	0.198-0.20	9.78-10.25	0.0000421	2800	√
