2UDTC-F 0.2mmx1300 Silk Covered Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.2mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	1300	Breakdown Voltage:	Min.1100
Cover Material:	Nylon	Product Name:	2UDTC-F 0.2mmx1300 Silk Covered Litz Wire For Transformer
Key Word:	2UDTC-F 0.2mmx1300 Silk Covered Litz Wire For Transformer
Highlight:	silk covered litz wire transformer , 0.2mm litz wire for transformer , 1300 silk litz wire

Product Description

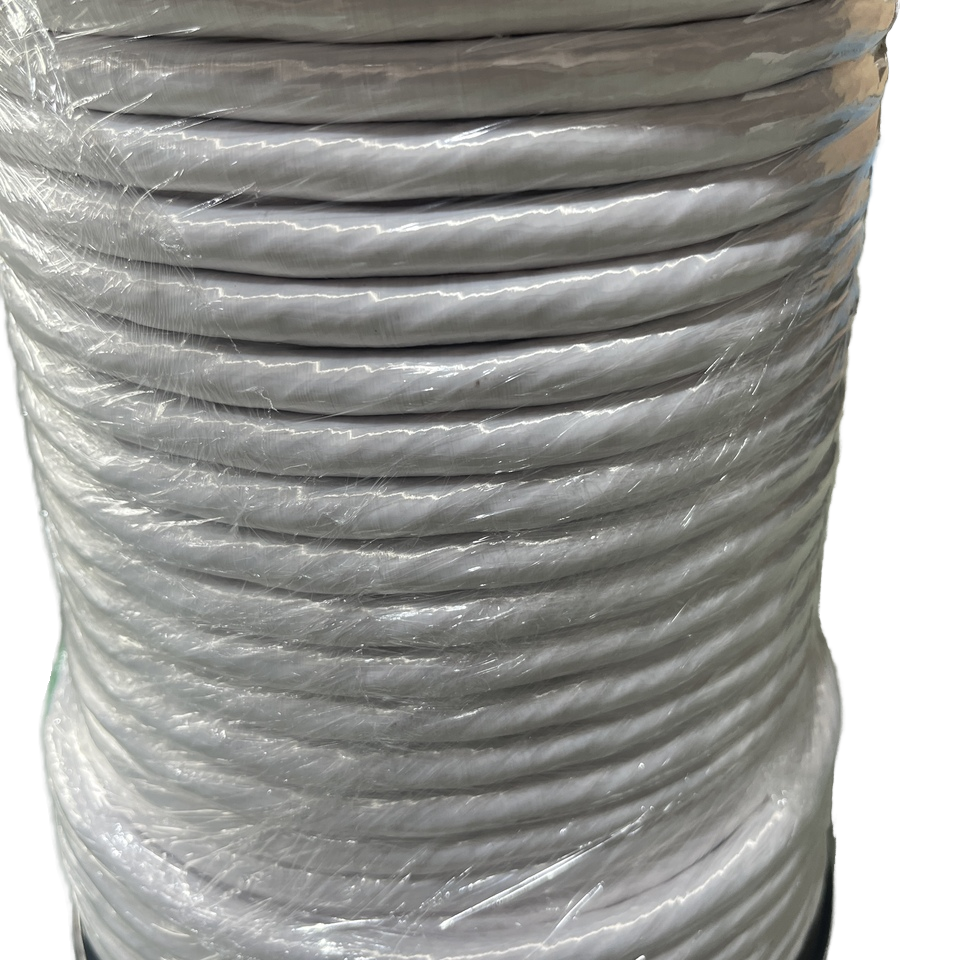

2UDTC-F 0.2mmx1300 Silk Covered Litz Wire For Transformer

This silk covered litz wire is a unique and robust solution designed for high-performance applications. It's special due to its larger size; it's meticulously twisted from 1300 strands of 0.2 mm enameled copper wire, wrapped with two layers of nylon yarn. This structure enhances conductivity and flexibility while preventing the wire from loosening. The standard maximum outer diameter of this litz wire is 11.09 mm, with an actual measurement range of 9.78 mm to 10.25 mm. It boasts a high electrical strength of 2800 volts, allowing you to consider whether it meets the design requirements of your product.

Product Specifications

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω /m	Breakdown voltage V	Pitch
Tech requirement	0.216-0.231	0.2±0.003	Max.11.09	≤0.000444	≥1600	78±10
Sample 1	0.220-0.223	0.198-0.20	9.78-10.25	0.0000421	2800	√
